Product Overview
Atlas Lifting and Rigging ALH-008-15 Manual Lever Hoist
The ALH-008-15 is a compact, rugged lever hoist designed for precision lifting, pulling, and tensioning in applications requiring extended vertical reach. With a 0.8-ton (1,600 lbs) capacity and a 15-foot lift height, it provides dependable manual operation in tight or elevated spaces where control and reliability are key.
Made for industry with a heavy-duty steel housing and a heat-treated alloy steel load chain, this lever hoist is built to perform in harsh environments. The ergonomic handle design supports operator comfort and leverage, while the forged steel swivel hooks with safety latches allow for secure, multi-angle rigging.
Key Features:
- 0.8-Ton Load Capacity: Ideal for light-duty lifting and tensioning.
- 15-Foot Lift Height: Extended reach for high-clearance or long-pull applications.
- Heavy-Duty Steel Construction: Durable frame withstands harsh job site conditions.
- Heat-Treated Alloy Steel Load Chain: A high-strength, wear-resistant chain that ensures a long service life.
- Ergonomic Lever Handle: Easy, controlled operation with minimal effort.
- Directional Selector: Smooth switch for lifting, lowering, or neutral positioning.

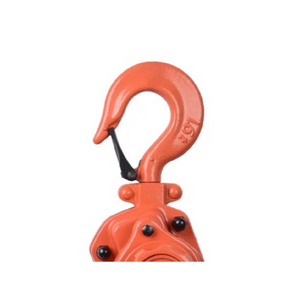

- Swivel Hooks with Safety Latches: Forged steel hooks rotate 360° for versatile rigging.
Specifications:
- Model: ALH-008-15
- Capacity: 0.8 Ton (1,600 lbs / 725 kg)
- Lift Height: 15 ft (4.5 m)
- Load Chain: Heat-treated alloy steel
- Lever Handle Length: Approx. 14 inches
- Hook Type: Forged steel swivel hooks with safety latches
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 19 lbs (8.6 kg)
The Atlas ALH-008-15 lever hoist offers precise control, extended reach, and rugged durability, making it a reliable solution for light-duty lifting and pulling in industrial and maintenance environments.
