Product Overview

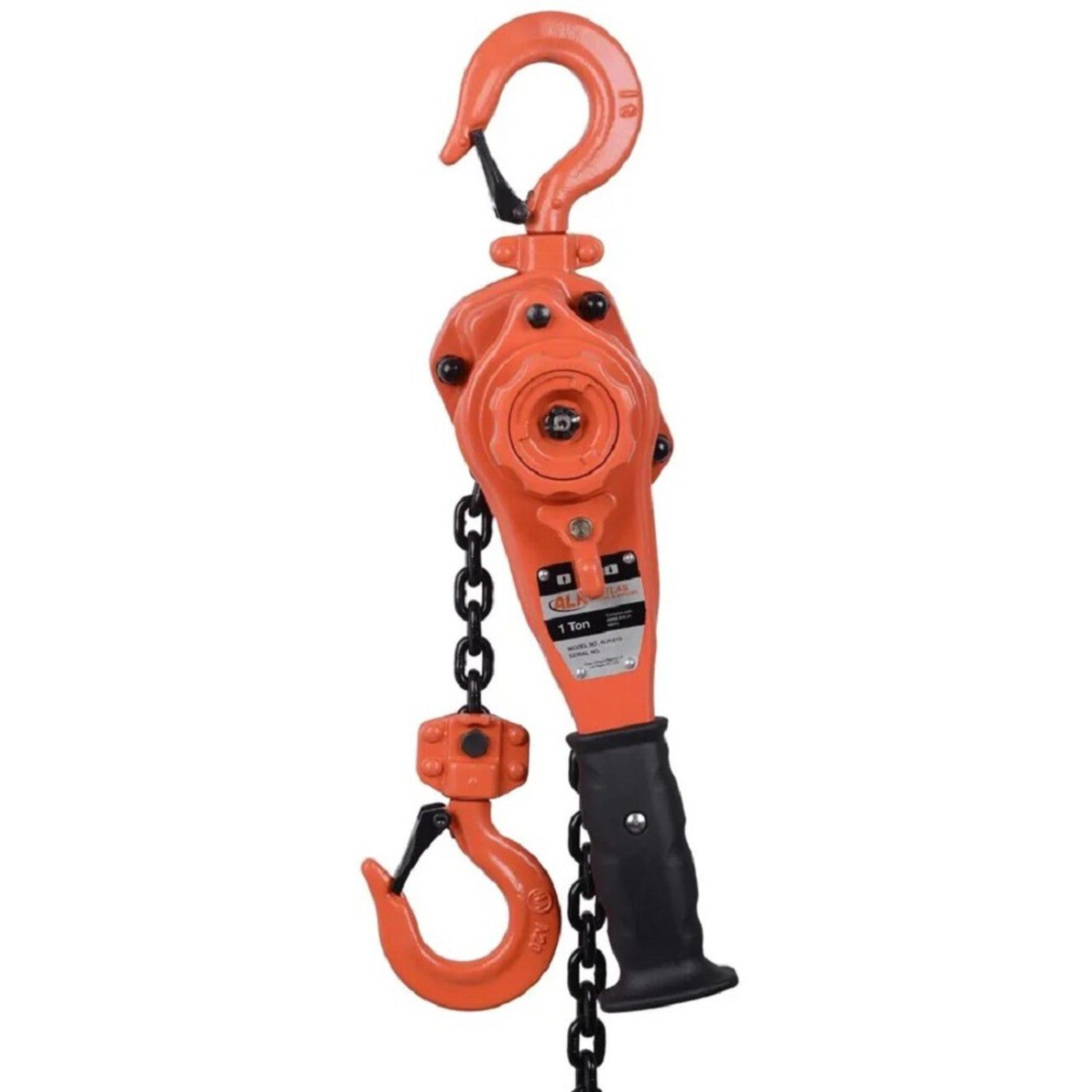

Atlas Lifting and Rigging ALH-008-30 Manual Lever Hoist
The ALH-008-30 is purpose-built for jobs that require an extended lift range and dependable manual handling. With a 0.8-ton (1,600 lbs) load capacity and a generous 30-foot lift height, this lever hoist is well-suited for long-pull or high-reach lifting in utility work, construction, maintenance, and light industrial environments.
Constructed with a rugged steel body and a precision-engineered alloy steel load chain, the ALH-008-30 stands up to demanding use while delivering smooth, consistent operation. Its ergonomic lever handle offers efficient, low-effort control, and the 360° swivel hooks with safety latches ensure secure, versatile rigging across various positions.
Key Features:
- 0.8-Ton Capacity: Designed for precision lifting, pulling, and tensioning.
- 30-Foot Lift Height: Ideal for long-reach or high-clearance operations.
- Heavy-Duty Steel Frame: Durable and resistant to job site abuse.
- Heat-Treated Alloy Steel Chain: Provides high strength, corrosion resistance, and long service life.
- Ergonomic Lever Handle: Comfortable and easy to operate, even during extended use.
- Three-Position Selector: Allows for lifting, lowering, and neutral positioning.

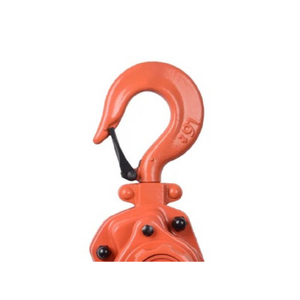

- Forged Swivel Hooks with Safety Latches: Enable safe, 360° rigging flexibility.
Specifications:
- Model: ALH-008-30
- Capacity: 0.8 Ton (1,600 lbs / 725 kg)
- Lift Height: 30 ft (9 m)
- Load Chain: Heat-treated alloy steel
- Lever Handle Length: Approx. 14 inches
- Hook Type: Forged steel swivel hooks with safety latches
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 25 lbs (11.3 kg)
The Atlas ALH-008-30 lever hoist provides exceptional reach and dependable performance for light-duty applications that require long lift heights and manual precision.
