Product Overview

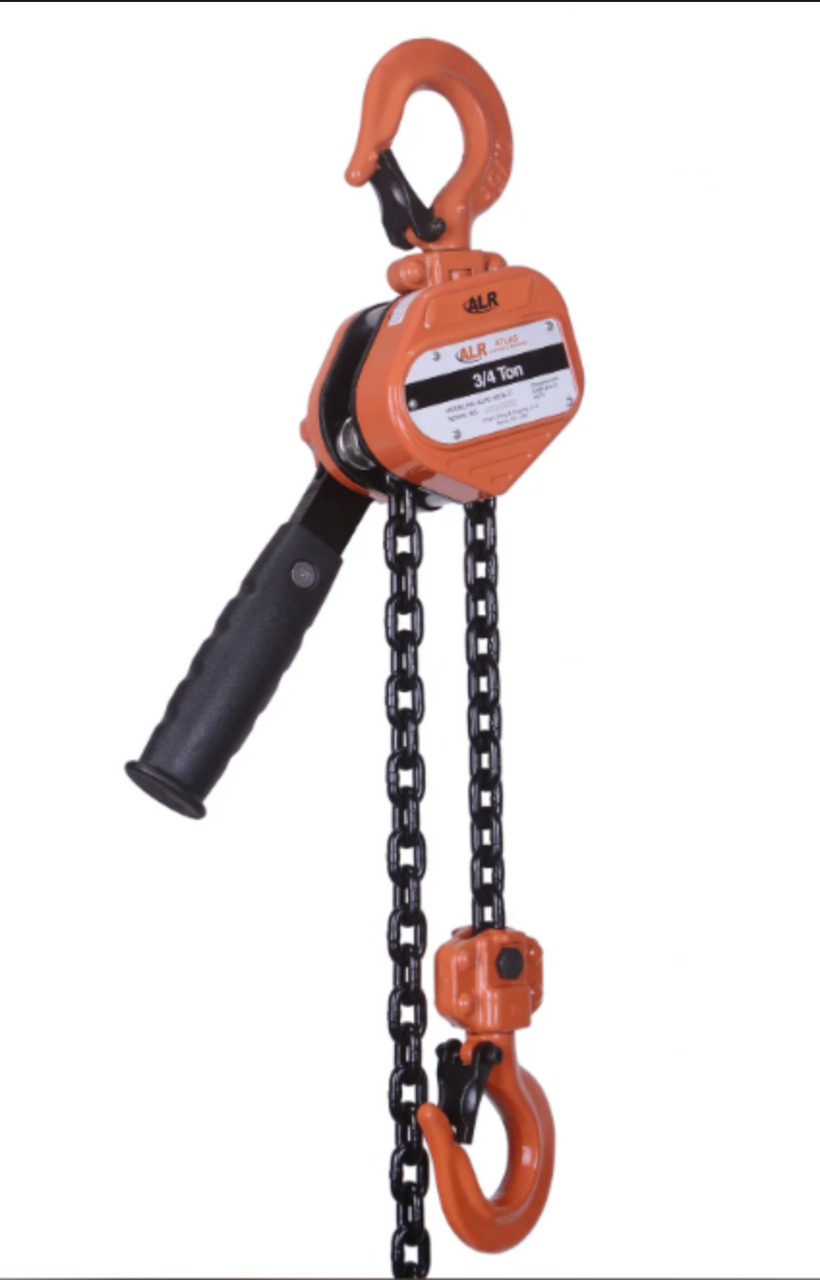

Atlas Lifting and Rigging ALH-008-30-OP Manual Lever Hoist with Overload Protection
The ALH-008-30-OP is designed to meet the demands of extended-reach applications while prioritizing safety and reliability. With a 0.8-ton (1,600 lbs) load capacity and an impressive 30-foot lift height, this lever hoist is built for tasks that require long pulls or elevated lifting in maintenance, construction, and utility settings.
Equipped with a mechanical overload protection system, the hoist helps prevent operator error by limiting load beyond rated capacity, extending the service life of the hoist and enhancing job site safety. Its rugged steel body and heat-treated alloy steel load chain ensure performance in tough conditions, while the ergonomic handle and forged swivel hooks with safety latches provide control and secure rigging.
Key Features:
- 0.8-Ton Capacity with Overload Protection: Built-in slip clutch prevents hoist damage and enhances safety under overload conditions.
- 30-Foot Lift Height: Extended lift for high-reach or long-distance pulling.
- Rugged Steel Construction: Withstands demanding environments and heavy use.
- Heat-Treated Alloy Steel Load Chain: Corrosion-resistant and engineered for long-term performance.
- Ergonomic Lever Handle: Offers controlled, low-effort operation.
- Three-Position Selector: Allows for lifting, lowering, and free-chain positioning.
- Forged Steel Swivel Hooks with Safety Latches: Provide 360° rotation and secure attachment.
Specifications:
- Model: ALH-008-30-OP
- Capacity: 0.8 Ton (1,600 lbs / 725 kg)
- Lift Height: 30 ft (9 m)
- Overload Protection: Mechanical slip clutch
- Load Chain: Heat-treated alloy steel
- Lever Handle Length: Approx. 14 inches
- Hook Type: Forged swivel hooks with safety latches
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 26 lbs (11.8 kg)
The Atlas ALH-008-30-OP is the smart solution for long-lift, light-duty jobs where safety, reach, and durability are critical.
