Product Overview

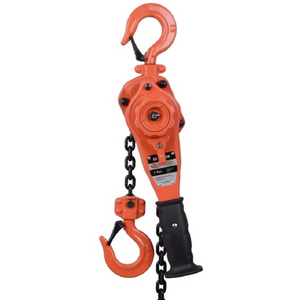

Atlas Lifting and Rigging ALH-008-20-OP Manual Lever Hoist with Overload Protection
The ALH-008-20-OP combines extended reach, dependable performance, and enhanced operator safety into one rugged lever hoist. With a 0.8-ton (1,600 lbs) lifting capacity and a 20-foot lift height, this hoist is designed for long-distance lifting or pulling tasks. Integrated overload protection helps prevent overexertion of the hoist and enhances workplace safety by automatically engaging a slip clutch when load limits are exceeded.
Made for industry with a heavy-duty steel frame and a heat-treated alloy steel chain, this hoist ensures strength and durability in demanding industrial and maintenance environments. The ergonomic lever handle provides smooth control, and the forged swivel hooks with safety latches offer flexible and secure attachment from any angle.
Key Features:
- 0.8-Ton Load Capacity with Overload Protection: Prevents damage from excessive loads via a built-in mechanical slip clutch.
- 20-Foot Lift Height: Long lift range for extended reach applications.
- Heavy-Duty Steel Housing: Built for rugged use and durability.
- Heat-Treated Alloy Steel Load Chain: Resistant to wear, corrosion, and fatigue.
- Ergonomic Lever Handle: Offers precise, low-effort operation.
- Reversible Selector: Enables easy transition between lifting, lowering, and neutral modes.
- Forged Swivel Hooks with Safety Latches: Rotate 360° for secure and versatile rigging.
Specifications:
- Model: ALH-008-20-OP
- Capacity: 0.8 Ton (1,600 lbs / 725 kg)
- Lift Height: 20 ft (6 m)
- Overload Protection: Mechanical slip clutch
- Load Chain: Heat-treated alloy steel
- Lever Handle Length: Approx. 14 inches
- Hook Type: Forged steel swivel hooks with safety latches
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 22 lbs (10 kg)
The Atlas ALH-008-20-OP lever hoist is a reliable solution when you need extended lift reach, robust build quality, and built-in overload safety for peace of mind during light-duty lifting and pulling operations.
