Product Overview

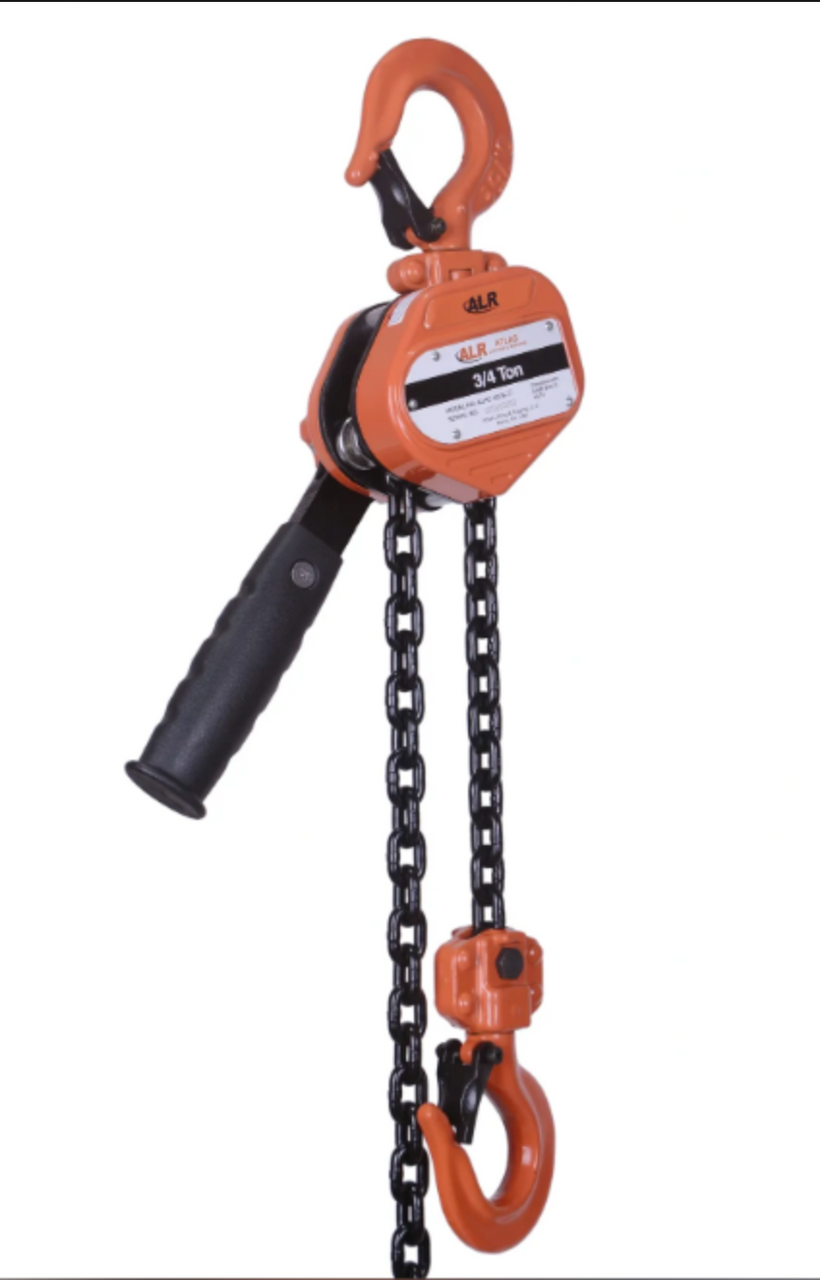

Atlas Lifting and Rigging ALH-008-10 Manual Lever Hoist
The ALH-008-10 is a durable and versatile manual lever hoist designed for precise lifting, pulling, and tensioning with a capacity of 0.8 tons (1,600 lbs) and an extended 10-foot lift height. Perfect for use in tight spaces that require controlled incremental lifting or pulling.
Its steel frame and heat-treated alloy steel load chain ensure strength and longevity. The lever handle provides comfortable operation, while the forged steel swivel hooks with safety latches offer secure and flexible load attachment. This model delivers smooth and reliable performance for a variety of industrial and maintenance tasks.
Key Features:
- 0.8-Ton Lifting Capacity: Suitable for light-duty lifting and pulling.
- 10-Foot Lift Height: Extended reach for versatile applications.
- Heavy-Duty Steel Construction: Built to endure demanding environments.
- Heat-Treated Alloy Steel Load Chain: High strength and wear resistance.
- Ergonomic Lever Handle: Comfortable and efficient operation.
- Quick-Change Load Direction: Easy switching between lifting and lowering.
- Forged Steel Swivel Hooks with Safety Latches: Provide a secure 360° rotating load connection.
Specifications:
- Model: ALH-008-10
- Capacity: 0.8 Ton (1,600 lbs / 725 kg)
- Lift Height: 10 ft (3 m)
- Load Chain: Heat-treated alloy steel
- Lever Handle Length: Approx. 14 inches
- Hook Type: Forged steel swivel hooks with safety latches
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 17 lbs (7.7 kg)
The Atlas ALH-008-10 lever hoist combines precise control, durability, and versatility for light-duty lifting and pulling operations in industrial and maintenance settings.
