Product Overview

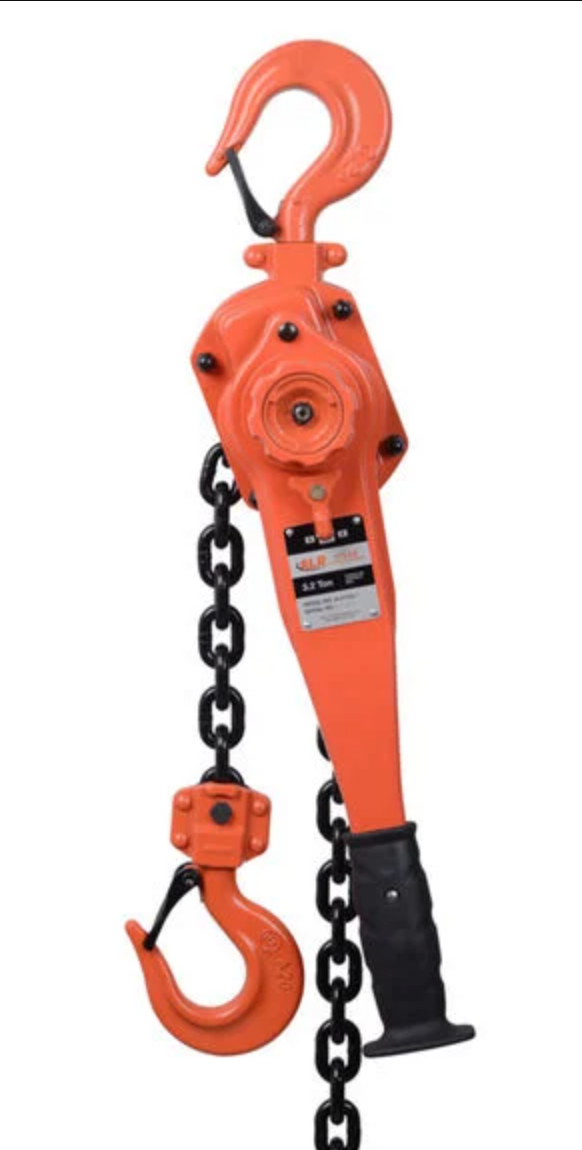

Atlas Lifting and Rigging ALH-025-30-OP Lever Hoist with Overload Protection
Engineered for the most demanding lifting applications, the ALH-025-30-OP lever hoist combines a generous 30-foot lift height, 2.5-ton (5,000 lbs) capacity, and mechanical overload protection for maximum performance and safety.
This hoist is built to take on long-lift jobs without compromise. The overload protection system helps prevent overexertion or damage by disengaging the lifting mechanism when the rated capacity is exceeded. A heat-treated alloy steel chain and forged swivel hooks ensure superior durability and load control, while the ergonomic lever and smooth-operating gear system provide efficient, fatigue-reducing handling.
Key Features:
- 2.5-Ton Load Capacity: Designed for heavy lifting in industrial, utility, and construction environments.
- 30-Foot Lift Height: Ideal for high-reach lifts or applications requiring extended chain length.
- Mechanical Overload Protection: Built-in safety system to prevent overloading.

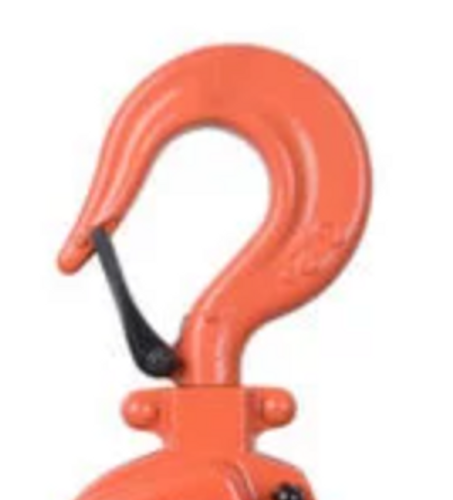

- Forged Swivel Hooks with Safety Latches: Provide secure and flexible attachment under load.
- Heat-Treated Alloy Load Chain: High-strength chain resists wear and deformation.
- Free-Chaining Functionality: Allows quick manual chain positioning for setup.
- Three-Position Selector Switch: Offers lift, lower, and neutral control.
- Ergonomic Lever Handle: Designed for ease of use and operator comfort.
Specifications:
- Model: ALH-025-30-OP
- Capacity: 2.5 Tons (5,000 lbs / 2,268 kg)
- Lift Height: 30 ft (9.1 m)
- Overload Protection: Mechanical slip clutch
- Hook Type: Forged swivel hooks with safety latches
- Load Chain: Heat-treated alloy steel
- Lever Handle Length: Approx. 16 inches
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 76 lbs (34.5 kg)
The Atlas ALH-025-30-OP is the top-tier choice when extended reach and integrated safety are essential for mission-critical lifting jobs.
