Product Overview

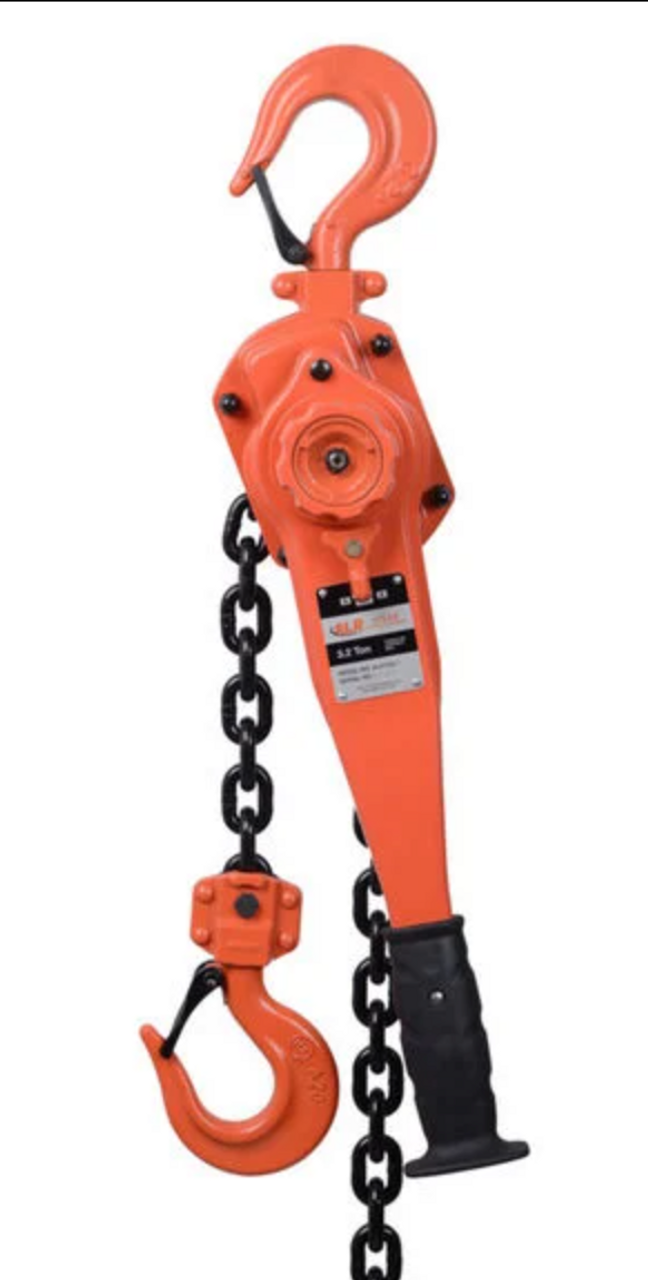

Atlas Lifting and Rigging ALH-025-30 Manual Lever Hoist
When your lifting job requires serious reach, the ALH-025-30 delivers. Designed with a 30-foot lift height and a 2.5-ton (5,000 lbs) capacity, this lever hoist offers the strength and vertical range needed for deep pit work, tall structural lifts, or long-span rigging.
Built for industry with a durable steel body and heat-treated alloy load chain, the hoist is engineered for rugged, repeated use in harsh environments. Its forged swivel hooks with safety latches ensure dependable load attachment, while the free-chaining mechanism and three-position selector allow for efficient, controlled operation.
Key Features:
- 2.5-Ton Load Capacity: Handles heavy loads with ease for industrial and construction applications.
- 30-Foot Lift Height: Optimized for high-reach or deep-lift scenarios requiring extra chain length.

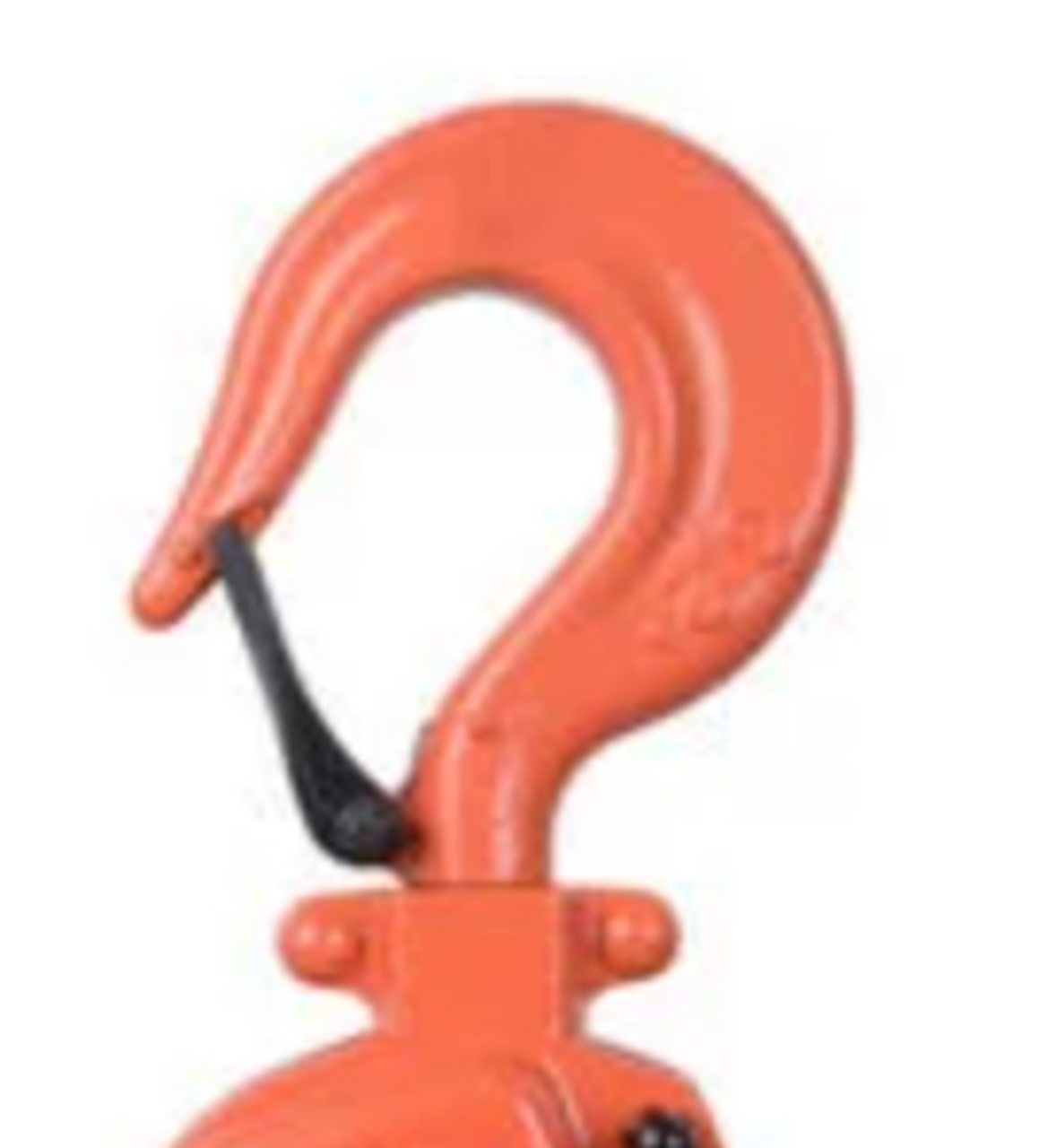

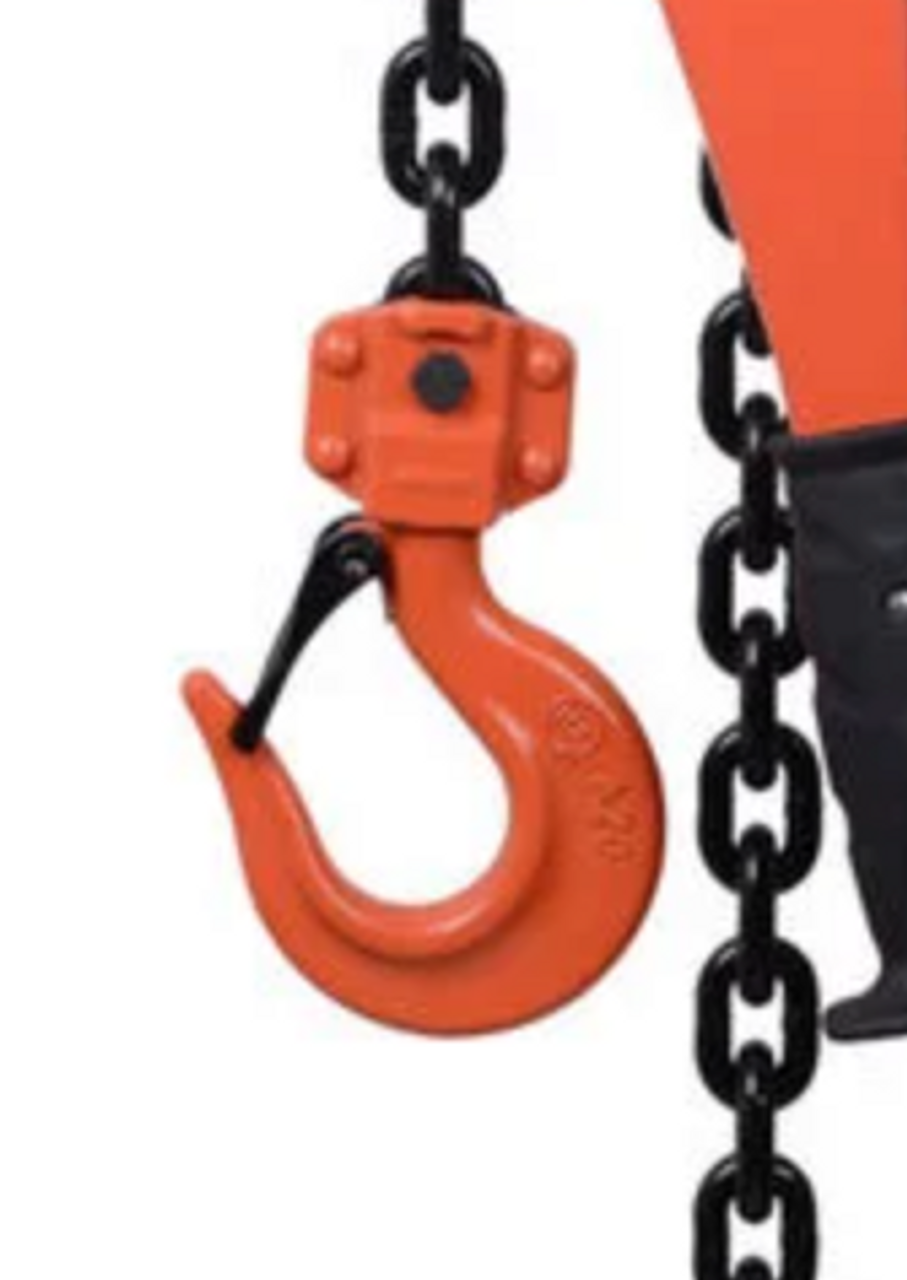

- Forged Swivel Hooks with Safety Latches: Secure, flexible connections in any position.
- Heat-Treated Alloy Load Chain: High-strength and wear-resistant for extended service life.
- Free-Chaining Feature: Speeds up slack chain adjustment prior to load engagement.
- Three-Position Selector: Allows for lifting, lowering, and neutral operation.
- Ergonomic Lever Handle: Provides comfortable, reliable control during use.
Specifications:
- Model: ALH-025-30
- Capacity: 2.5 Tons (5,000 lbs / 2,268 kg)
- Lift Height: 30 ft (9.1 m)
- Hook Type: Forged swivel hooks with safety latches
- Load Chain: Heat-treated alloy steel
- Overload Protection: Not included
- Lever Handle Length: Approx. 16 inches
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 72 lbs (32.7 kg)
The Atlas ALH-025-30 is the professional’s choice for extended-height lifting tasks where reliability, chain strength, and reach are critical.
