Product Overview

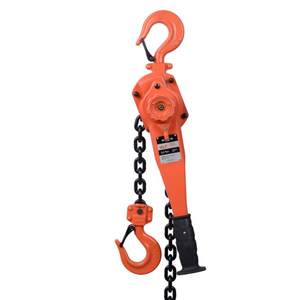

Atlas Lifting and Rigging ALH-025-10 Manual Lever Hoist
The ALH-025-10 lever hoist combines rugged strength and extended reach to handle challenging lifting and pulling tasks in industrial and construction settings. With a 2.5-ton (5,000 lbs) lifting capacity and a 10-foot lift height, this model provides the extra chain length needed for elevated or hard-to-reach lifts.
Built for industry with a durable steel housing and heat-treated alloy load chain, the hoist is built to perform in demanding environments. Forged swivel hooks with safety latches ensure a secure attachment, while the free-chain mode allows for fast and easy adjustments. The ergonomic lever handle provides smooth operation with minimal effort, making it ideal for use in tight or awkward spaces.
Key Features:
- 2.5-Ton Load Capacity: Ideal for heavy-duty lifting, pulling, or tensioning tasks.
- 10-Foot Lift Height: Offers increased versatility for elevated rigging points.
- Forged Swivel Hooks with Safety Latches: Provide reliable, flexible rigging connections.
- Heat-Treated Alloy Steel Load Chain: Strong, durable, and wear-resistant.
- Free-Chaining Mode: Quickly position the chain before applying tension.
- Three-Position Selector: Lift, lower, or neutral settings for complete control.
- Durable Steel Housing: Withstands harsh jobsite conditions.
- Sleek Handle: Designed for comfort and control during manual operation.
Specifications:
- Model: ALH-025-10
- Capacity: 2.5 Tons (5,000 lbs / 2,268 kg)
- Lift Height: 10 ft (3.0 m)
- Hook Type: Forged swivel hooks with safety latches
- Load Chain: Heat-treated alloy steel
- Overload Protection: Not included
- Lever Handle Length: Approx. 16 inches
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 42 lbs (19.1 kg)
The Atlas ALH-025-10 is a strong, reliable, and field-ready hoist for lifting professionals who demand performance and reach in one durable tool.
