Product Overview

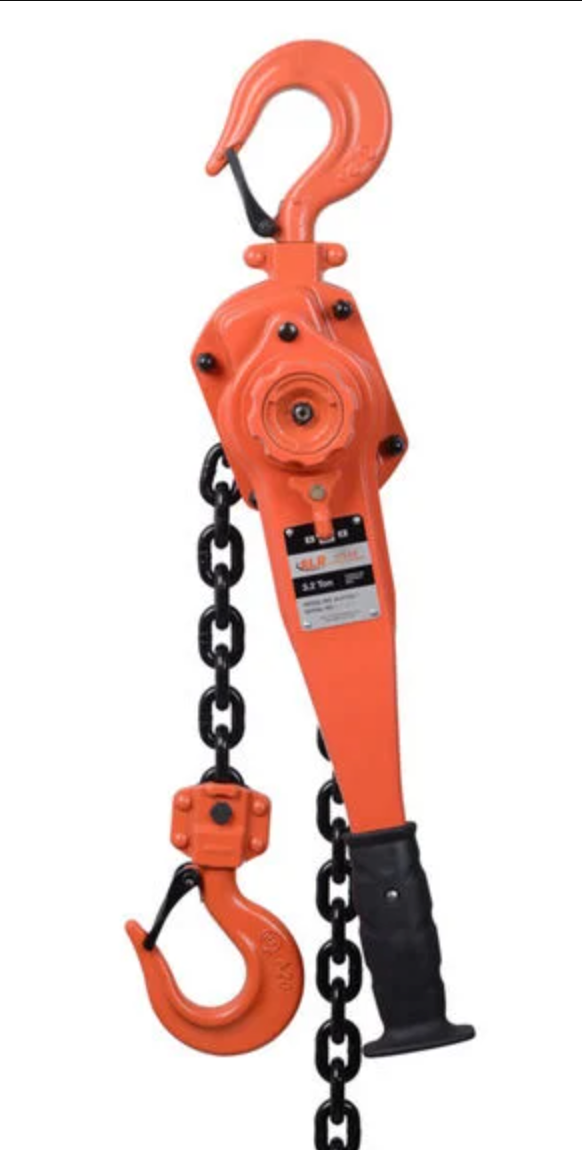

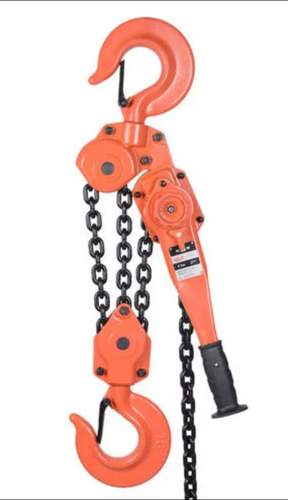

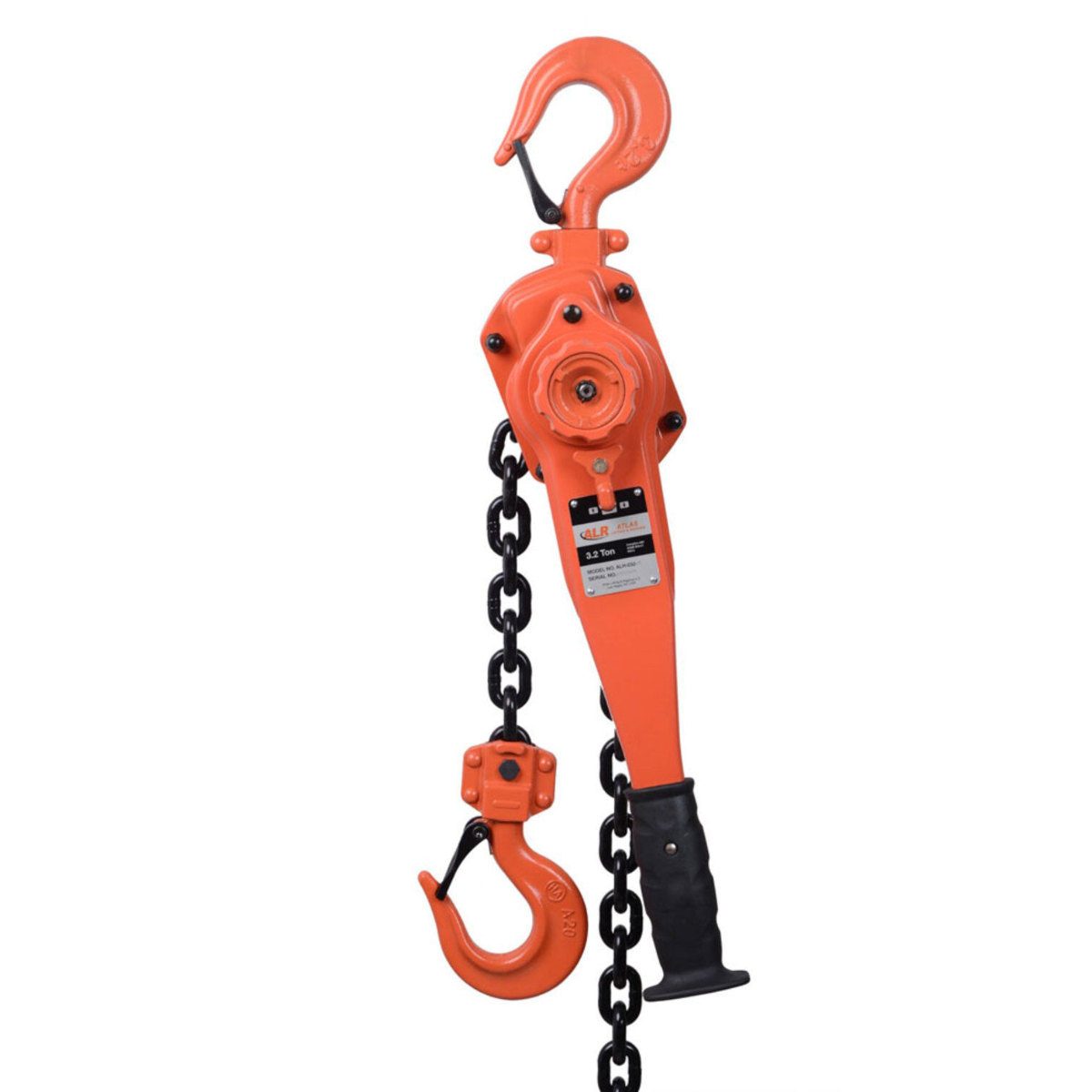

Atlas Lifting and Rigging ALH-025-15 Manual Lever Hoist
The ALH-025-15 from Atlas Lifting and Rigging delivers high-capacity lifting power with extended reach, making it a strong choice for industrial applications where added lift height is essential. With a 2.5-ton (5,000 lbs) load capacity and a 15-foot lift height, this hoist is ideal for elevated or long-span lifting scenarios across construction sites, fabrication shops, and heavy maintenance operations.
Its robust steel housing and heat-treated alloy steel load chain are designed for consistent, rugged use. The hoist includes forged swivel hooks with safety latches for secure connections and offers smooth, responsive control through its ergonomic lever handle and easy-to-use selector switch.
Key Features:
- 2.5-Ton Load Capacity: Suited for demanding lifting and tensioning applications.
- 15-Foot Lift Height: Provides extra reach for tall structures or deep lifts.

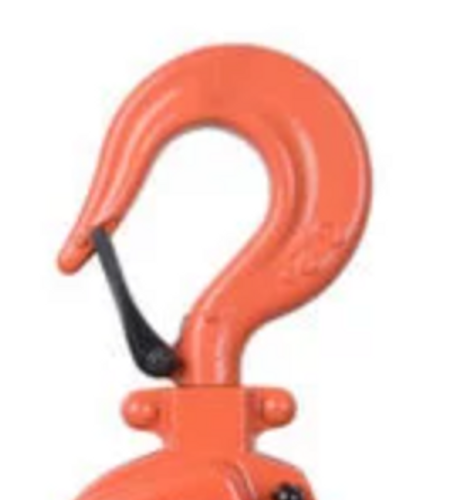

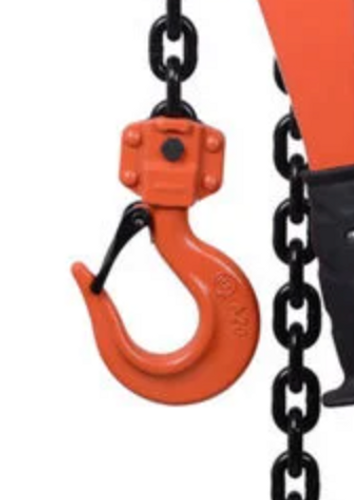

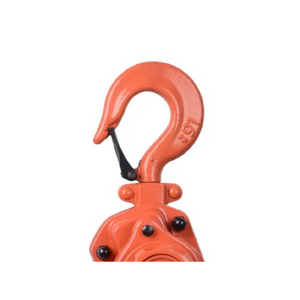

- Forged Swivel Hooks with Safety Latches: Offer secure and flexible load handling.
- Heat-Treated Alloy Load Chain: Built to withstand wear, shock, and heavy use.
- Free-Chaining Mode: Allows fast, manual slack chain adjustment before engaging the load.
- Three-Position Selector: Enables smooth switching between lifting, lowering, and neutral.
- Ergonomic Lever Handle: Balanced for ease of use and operator comfort.
Specifications:
- Model: ALH-025-15
- Capacity: 2.5 Tons (5,000 lbs / 2,268 kg)
- Lift Height: 15 ft (4.6 m)
- Hook Type: Forged swivel hooks with safety latches
- Load Chain: Heat-treated alloy steel
- Overload Protection: Not included
- Lever Handle Length: Approx. 16 inches
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 50 lbs (22.7 kg)
The Atlas ALH-025-15 is an excellent choice when extended lift range and reliable, manual lifting performance are needed in tough industrial environments.
