Product Overview

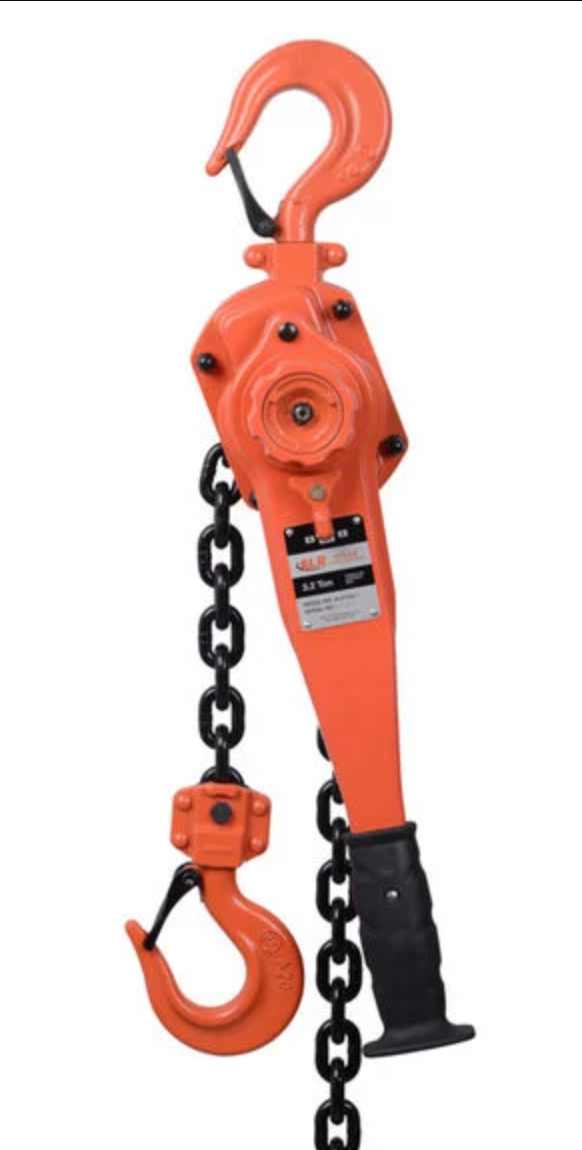

Atlas Lifting and Rigging ALH-025-20 Manual Lever Hoist
The ALH-025-20 lever hoist is built for high-reach lifting applications that require strength, reliability, and extended vertical range. With a 2.5-ton (5,000 lbs) capacity and a 20-foot lift height, this model is ideal for construction, shipbuilding, utilities, and other settings where greater chain length is a must.
This hoists rugged steel construction is matched with a heat-treated alloy steel load chain and forged swivel hooks with safety latches, ensuring durability and secure load handling. The smooth ratcheting lever and precise control selector provide dependable performance even in tight or elevated positions.
Key Features:
- 2.5-Ton Load Capacity: Suitable for demanding industrial lifting and pulling tasks.
- 20-Foot Lift Height: Optimized for high-clearance or deep-access applications.
- Forged Swivel Hooks with Safety Latches: Provide reliable, flexible load attachment.
- Heat-Treated Alloy Load Chain: Built to withstand wear and shock in harsh environments.
- Free-Chaining Feature: Allows quick manual chain positioning without gear engagement.
- Three-Position Selector: Enables lift, lower, and neutral modes for complete control.
- Ergonomic Lever Handle: Designed for comfortable operation with minimal effort.
Specifications:
- Model: ALH-025-20
- Capacity: 2.5 Tons (5,000 lbs / 2,268 kg)
- Lift Height: 20 ft (6.1 m)
- Hook Type: Forged swivel hooks with safety latches
- Load Chain: Heat-treated alloy steel
- Overload Protection: Not included
- Lever Handle Length: Approx. 16 inches
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 58 lbs (26.3 kg)
The Atlas ALH-025-20 is built to tackle elevated rigging challenges with confidence—ideal for pros who need maximum lift height without compromising on performance.
