Product Overview

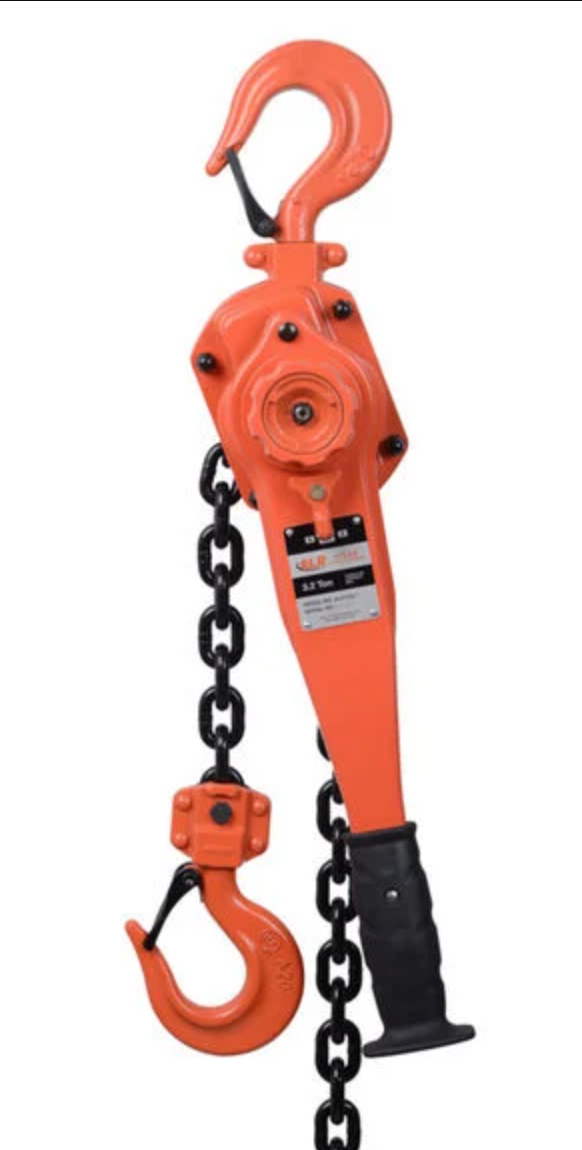

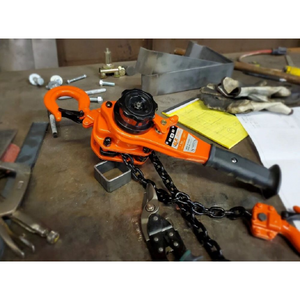

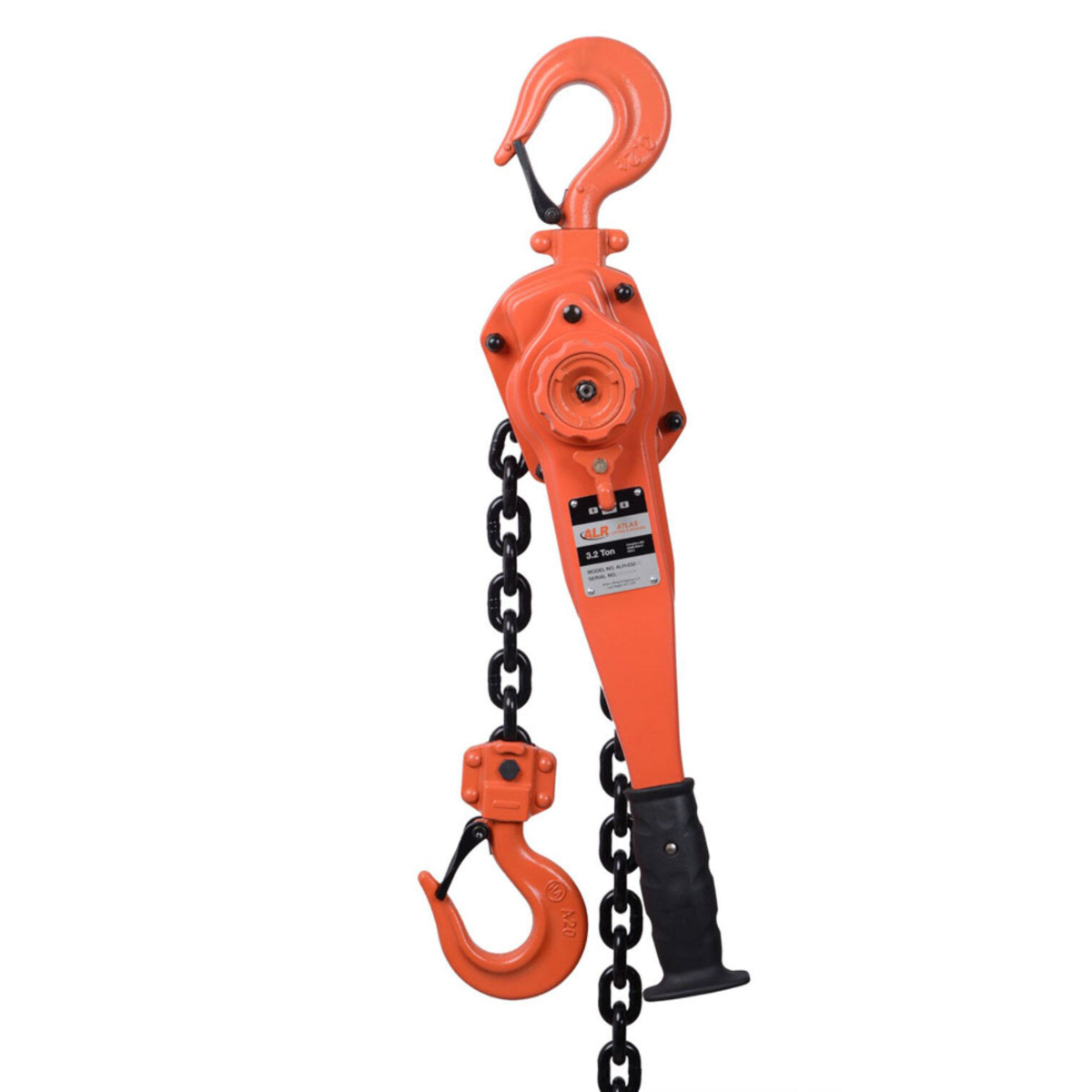

Atlas Lifting and Rigging ALH-025-20-OP Lever Hoist with Overload Protection
The ALH-025-20-OP lever hoist delivers extended reach, high lifting capacity, and enhanced safety—all in one dependable package. Built with a 2.5-ton (5,000 lbs) capacity and a 20-foot lift height, this hoist is designed for demanding industrial tasks where additional height and load security are critical.
The integrated mechanical overload protection system safeguards both the operator and equipment by disengaging the lifting mechanism if the rated load is exceeded. Heavy-duty forged swivel hooks, a heat-treated alloy steel chain, and a rigid steel body ensure performance under pressure. A comfortable, ergonomic lever and free-chaining feature provide smooth, controlled operation in any setting.
Key Features:
- 2.5-Ton Load Capacity: Strong enough for heavy-duty industrial and construction use.
- 20-Foot Lift Height: Ideal for tall structures, pits, or long-span lifting.
- Mechanical Overload Protection: Prevents overloading for safer, longer-lasting use.

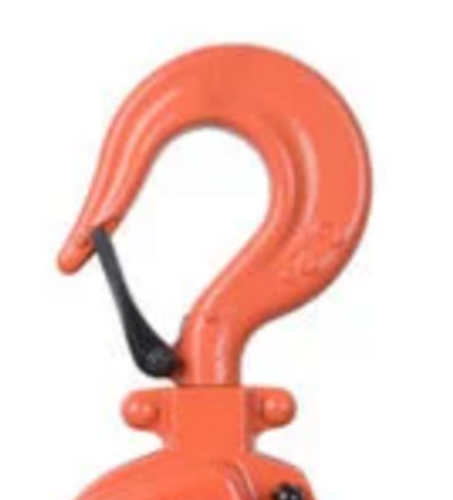

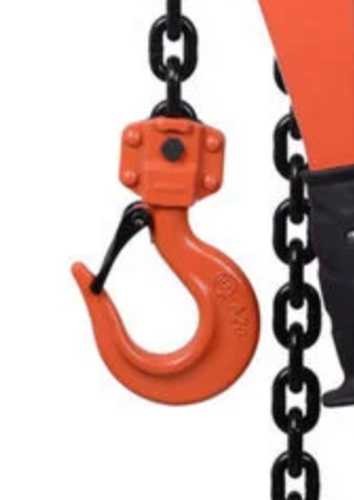

- Forged Swivel Hooks with Safety Latches: Secure, flexible attachment under load.
- Heat-Treated Alloy Load Chain: Resists wear and deformation under stress.
- Free-Chaining Capability: Enables rapid manual chain adjustments before engagement.
- Three-Position Selector Switch: Allows lift, lower, and neutral positioning.
- Ergonomic Lever Handle: Reduces operator fatigue with efficient leverage.
Specifications:
- Model: ALH-025-20-OP
- Capacity: 2.5 Tons (5,000 lbs / 2,268 kg)
- Lift Height: 20 ft (6.1 m)
- Overload Protection: Mechanical slip clutch system
- Hook Type: Forged swivel hooks with safety latches
- Load Chain: Heat-treated alloy steel
- Lever Handle Length: Approx. 16 inches
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 60 lbs (27.2 kg)
The Atlas ALH-025-20-OP combines the lifting strength and reach professionals need with the built-in protection they rely on—making it an excellent fit for critical lifting jobs where safety and reliability are non-negotiable.
