Product Overview

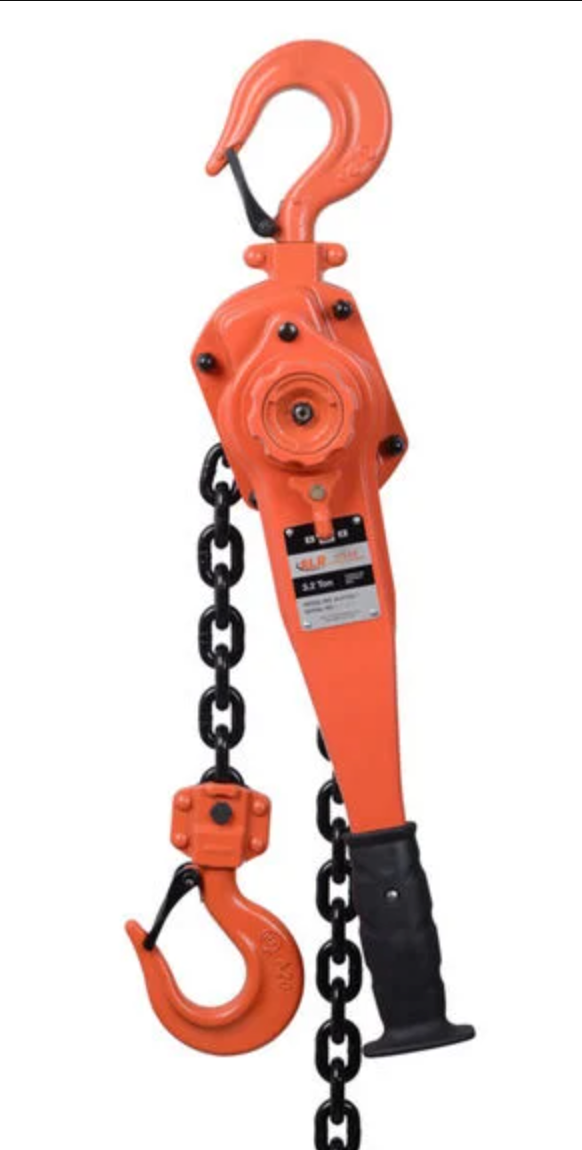

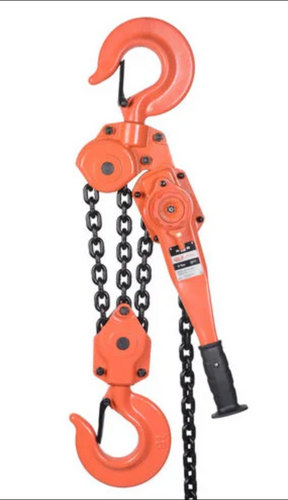

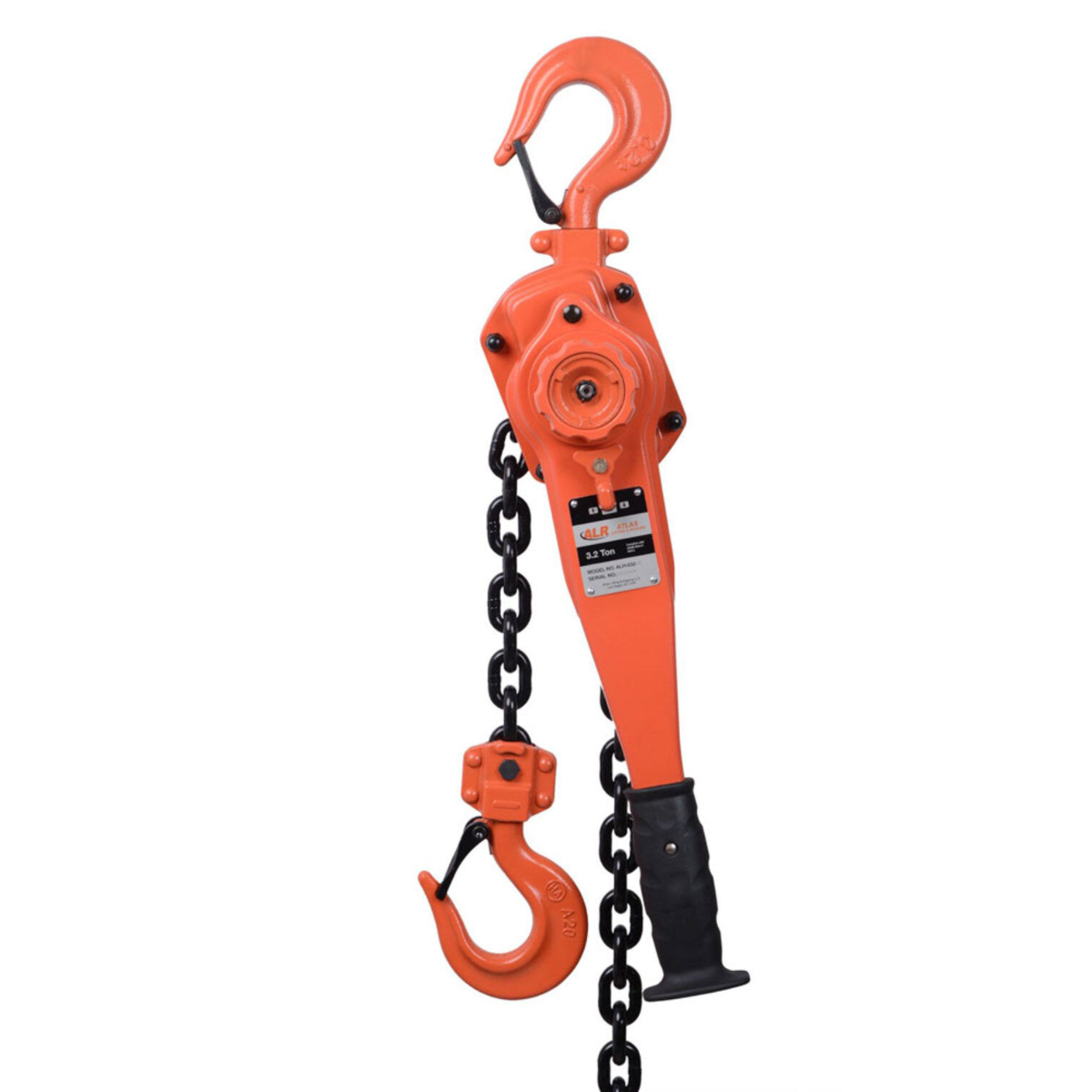

Atlas Lifting and Rigging ALH-025-15-OP Lever Hoist with Overload Protection
Built for safety and reliability in extended-reach lifting tasks, the ALH-025-15-OP lever hoist from Atlas Lifting and Rigging combines 2.5-ton capacity with 15 feet of lift height and the added benefit of mechanical overload protection. This hoist is built for industry environments that require long lift spans and high safety standards.
A heavy-duty steel body, heat-treated alloy steel load chain, and forged swivel hooks ensure robust durability and secure load handling. The built-in overload protection mechanism engages automatically if the rated load is exceeded, preventing operator strain and mechanical damage. Smooth manual operation is achieved via a comfortable lever handle and precise selector switch.
Key Features:
- 2.5-Ton Load Capacity: Handles a wide range of heavy-duty lifting and pulling tasks.
- 15-Foot Lift Height: Excellent for high-clearance or long-span lifting scenarios.
- Overload Protection: The mechanical system prevents overloading for added safety.
- Swivel Hooks with Safety Latches: Provide secure and flexible rigging options.
- Heat-Treated Alloy Load Chain: Engineered for durability and long service life.
- Free-Chaining Feature: Allows fast adjustment of chain length without engaging the gear.
- Three-Position Selector Switch: For lifting, lowering, and neutral operation.
- Ergonomic Lever Handle: Designed for comfortable, efficient manual use.
Specifications:
- Model: ALH-025-15-OP
- Capacity: 2.5 Tons (5,000 lbs / 2,268 kg)
- Lift Height: 15 ft (4.6 m)
- Overload Protection: Integrated mechanical slip clutch
- Hook Type: Forged swivel hooks with safety latches
- Load Chain: Heat-treated alloy steel
- Lever Handle Length: Approx. 16 inches
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 52 lbs (23.6 kg)
The Atlas ALH-025-15-OP provides trusted performance, extended reach, and critical safety protection—making it the right choice for professionals who won't compromise on safety or strength.
