Product Overview

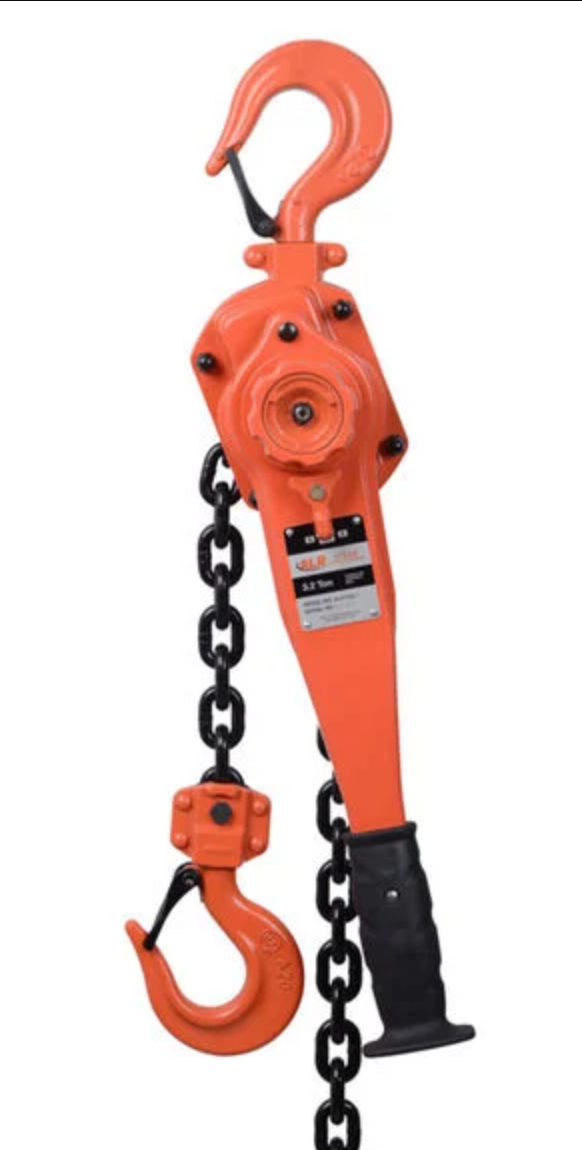

The Atlas Lifting and Rigging ALH 2-1/2 Ton Lever Chain Hoist is a meticulously engineered tool designed to elevate your lifting capabilities, ensuring safety and efficiency in demanding industrial environments. With a remarkable weight capacity of 2.5 tons (5,000 lbs) and a 5-foot lift height, this lever hoist is the perfect choice for professionals seeking robust performance without compromising on safety.
Constructed with durability in mind, the ALH-025-05-OP features a mechanical overload protection system that provides peace of mind by preventing operation when the load exceeds the rated capacity. This innovative safeguard ensures the well-being of both the operator and the equipment, making it an essential addition to any rigging setup. In addition, the hoist is made from forged steel and boasts a heat-treated alloy load chain, guaranteeing exceptional strength and longevity even under heavy-duty usage.
- 2.5-Ton Load Capacity: Designed for medium to heavy lifting and pulling applications.
- 5-Foot Lift Height: Ideal for rigging setups with standard clearance requirements.
- Mechanical Overload Protection: Prevents hoist operation if the load exceeds rated capacity.
- Forged Swivel Hooks with Safety Latches: Provide secure and flexible rigging connections.
- Heat-Treated Alloy Steel Load Chain: Built for long service life under frequent use.
- Three-Position Selector Switch: For lifting, lowering, and free-chain modes.
- Free-Chaining Capability: Quickly adjusts chain length without load tension.
- Ergonomic Lever Handle: Offers firm grip and precise manual operation.
Specifications are essential, and the Atlas ALH-025-05-OP delivers on all fronts. The model itself features a substantial lift capacity of 2.5 tons (5,000 lbs or 2,268 kg) and a lift height of 5 feet (1.5 m), making it capable of tackling various lifting tasks with ease. The forged swivel hooks, complete with safety latches, guarantee secure load attachment, while the integrated mechanical slip clutch takes the worry out of overloading.
This lever hoist further impresses with a heat-treated alloy steel load chain, ensuring performance reliability over prolonged use. Additionally, the lever handle, approximately 16 inches long, allows for comfortable handling across a wide operating temperature range of -40°F to 140°F (-40°C to 60°C), making it suitable for both indoor and outdoor applications. Weighing in at approximately 36 lbs (16.3 kg), it provides a perfect balance of portability and performance.
In essence, the Atlas ALH-025-05-OP is crafted for professionals dedicated to achieving lifting safety and efficiency. With its compact design combined with reliable overload protection, it stands as a pivotal tool in any serious lifting operation.
