Product Overview

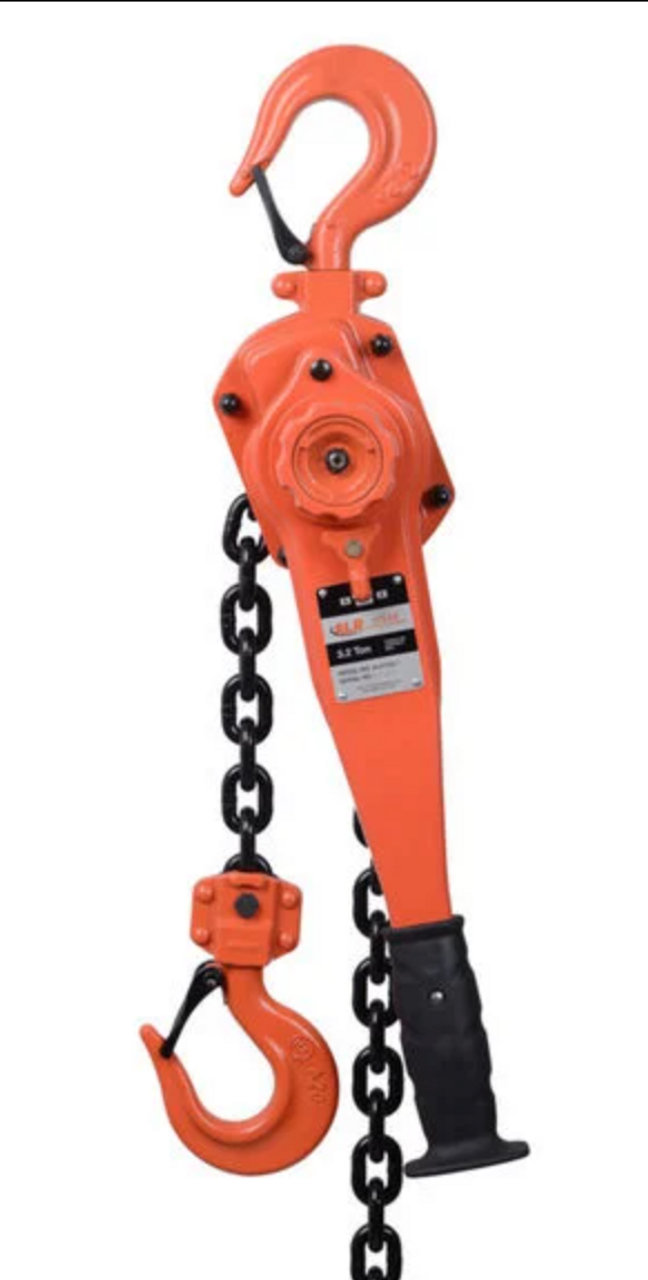

Atlas Lifting and Rigging ALH-025-10-OP Lever Hoist with Overload Protection
Designed for safety, strength, and extended reach, the ALH-025-10-OP lever hoist offers reliable performance in demanding industrial and construction environments. With a 2.5-ton (5,000 lbs) capacity and a 10-foot lift height, this hoist features a built-in mechanical overload protection system to automatically disengage lifting when the rated load is exceeded, helping prevent accidents and equipment strain.
Engineered with forged swivel hooks, a heat-treated alloy load chain, and a durable steel body, the ALH-025-10-OP delivers dependable, smooth operation even under harsh conditions. The ergonomic lever handle, free-chain mode, and precision selector switch ensure efficiency and ease of use on every lift.
Key Features:
- 2.5-Ton Load Capacity: Capable of handling tough, mid- to heavy-duty lifting tasks.
- 10-Foot Lift Height: Offers extra reach for elevated lifting points or awkward load placements.
- Mechanical Overload Protection: Enhances safety by preventing over-capacity operation.
- Swivel Hooks with Safety Latches: Secure, flexible rigging with reliable load holding.
- Heat-Treated Alloy Load Chain: Built for strength, wear resistance, and long life.
- Free-Chaining Feature: Enables quick slack adjustment before load engagement.
- Three-Position Selector: Lift, lower, and neutral positions for controlled operation.
- Ergonomic Lever Handle: Provides comfort and control during use.
Specifications:
- Model: ALH-025-10-OP
- Capacity: 2.5 Tons (5,000 lbs / 2,268 kg)
- Lift Height: 10 ft (3.0 m)
- Overload Protection: Integrated mechanical slip clutch
- Hook Type: Forged swivel hooks with safety latches
- Load Chain: Heat-treated alloy steel
- Lever Handle Length: Approx. 16 inches
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 43 lbs (19.5 kg)
The Atlas ALH-025-10-OP is ideal for professionals who need extended lift height, high capacity, and the added security of built-in overload protection—all in a dependable and rugged manual hoist.
