Product Overview

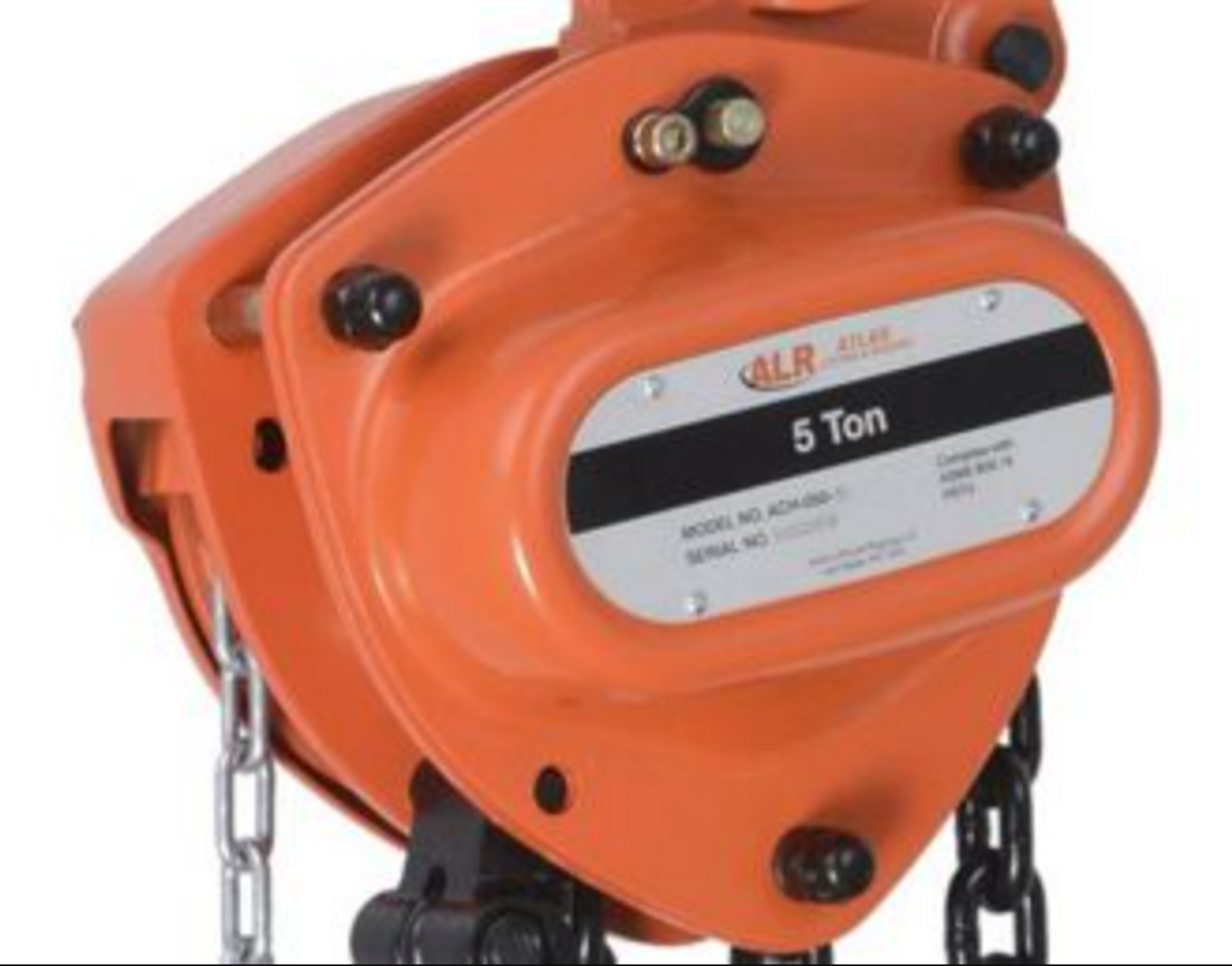

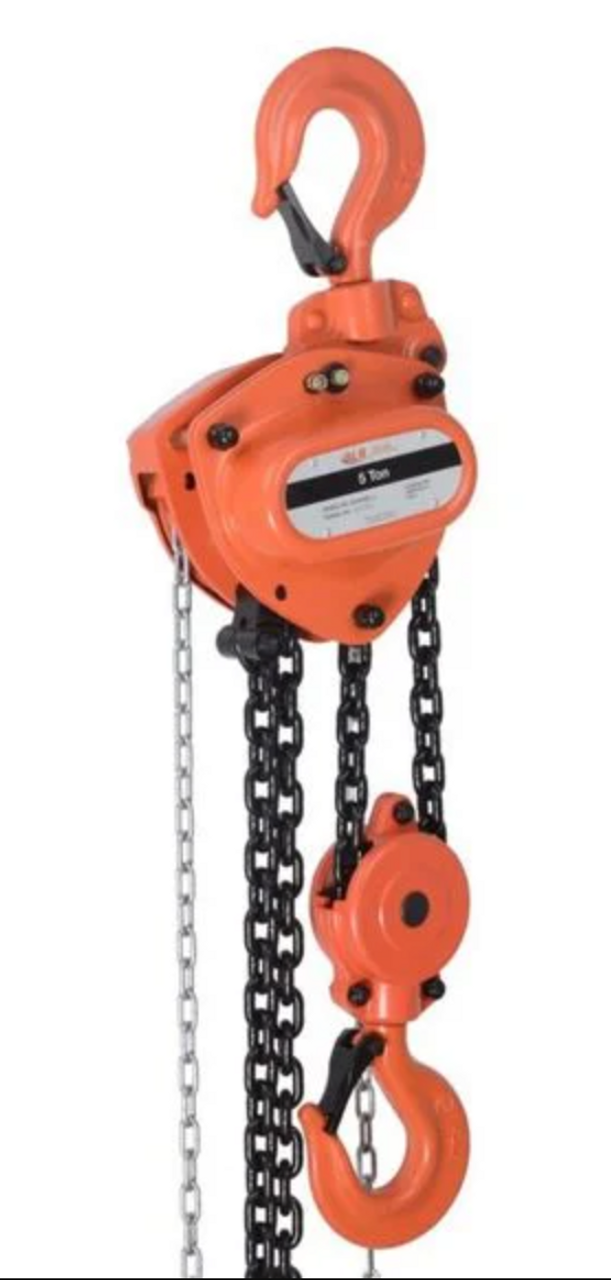

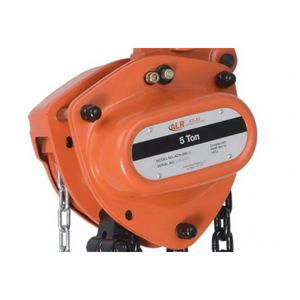

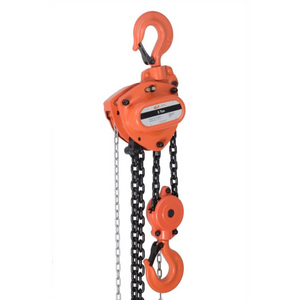

Atlas Lifting and Rigging ACH-050-30-OP Manual Chain Hoist with Overload Protection
The ACH-050-30-OP combines heavy-duty lifting capability with advanced safety features, offering a 5-ton (10,000 lbs) rated capacity and an extended 30-foot lift height. Engineered for high-reach applications, this manual chain hoist features a built-in mechanical overload protection system that engages automatically to prevent lifting beyond its rated capacity, greatly reducing the risk of equipment failure and enhancing jobsite safety.
This hoist is constructed from rugged steel and features a Weston-style mechanical brake, a Grade 80 alloy steel chain, and forged swivel hooks with safety latches. The sealed brake and gear mechanisms provide consistent, long-term performance even in harsh environments.
Key Features:
- 5-Ton Rated Capacity with Overload Protection: Internal slip clutch protects the hoist and operator from overloading.
- 30-Foot Lift Height: Extended reach ideal for tall structures or deep-lift applications.
- Rugged Steel Construction: Built for industrial reliability and resistance to damage.
- Weston-Style Mechanical Load Brake: Ensures smooth, controlled load handling and secure braking.
- Grade 80 Alloy Load Chain: Corrosion-resistant, high-strength steel for demanding applications.
- Forged Swivel Hooks with Latches: Allow full 360° rotation and secure attachment points.
- Sealed Brake and Gear Housing: Keeps out contaminants and moisture for longer service life.
Specifications:
- Model: ACH-050-30-OP
- Capacity: 5 Ton (10,000 lbs / 4,536 kg)
- Lift Height: 30 ft (9 m)
- Overload Protection: Integrated mechanical slip clutch
- Load Chain: Grade 80 alloy steel, black oxide finish
- Hand Chain: Zinc-plated steel
- Brake Type: Weston-style mechanical load brake
- Hook Type: Forged steel swivel hooks with safety latches
- Headroom: Approx. 22–24 inches
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 182–195 lbs
The Atlas ACH-050-30-OP is designed for demanding lifting applications where height, safety, and reliability are paramount. Ideal for professionals who demand performance without compromise.
