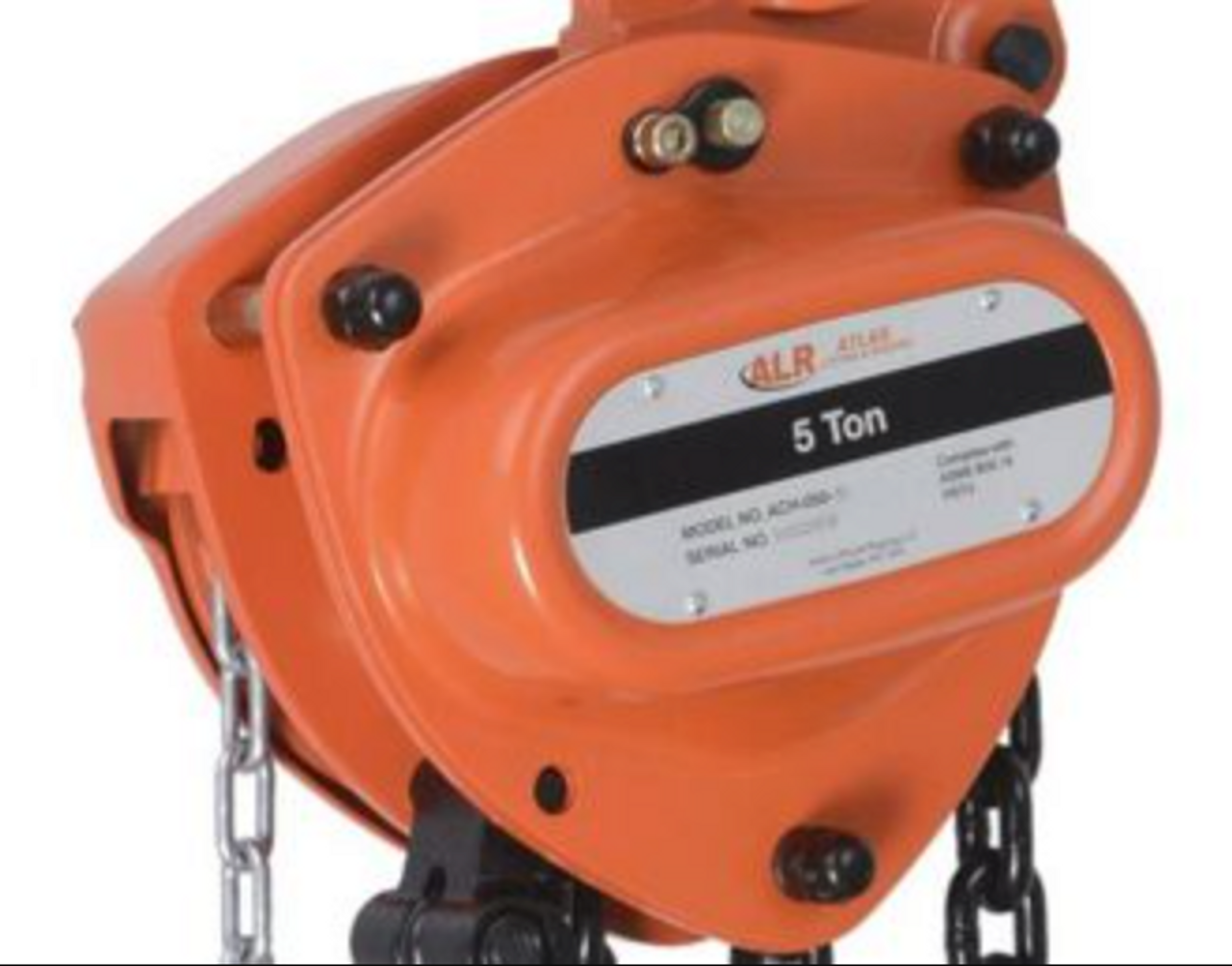

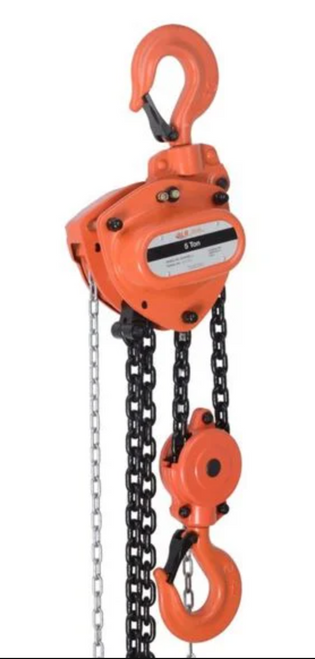

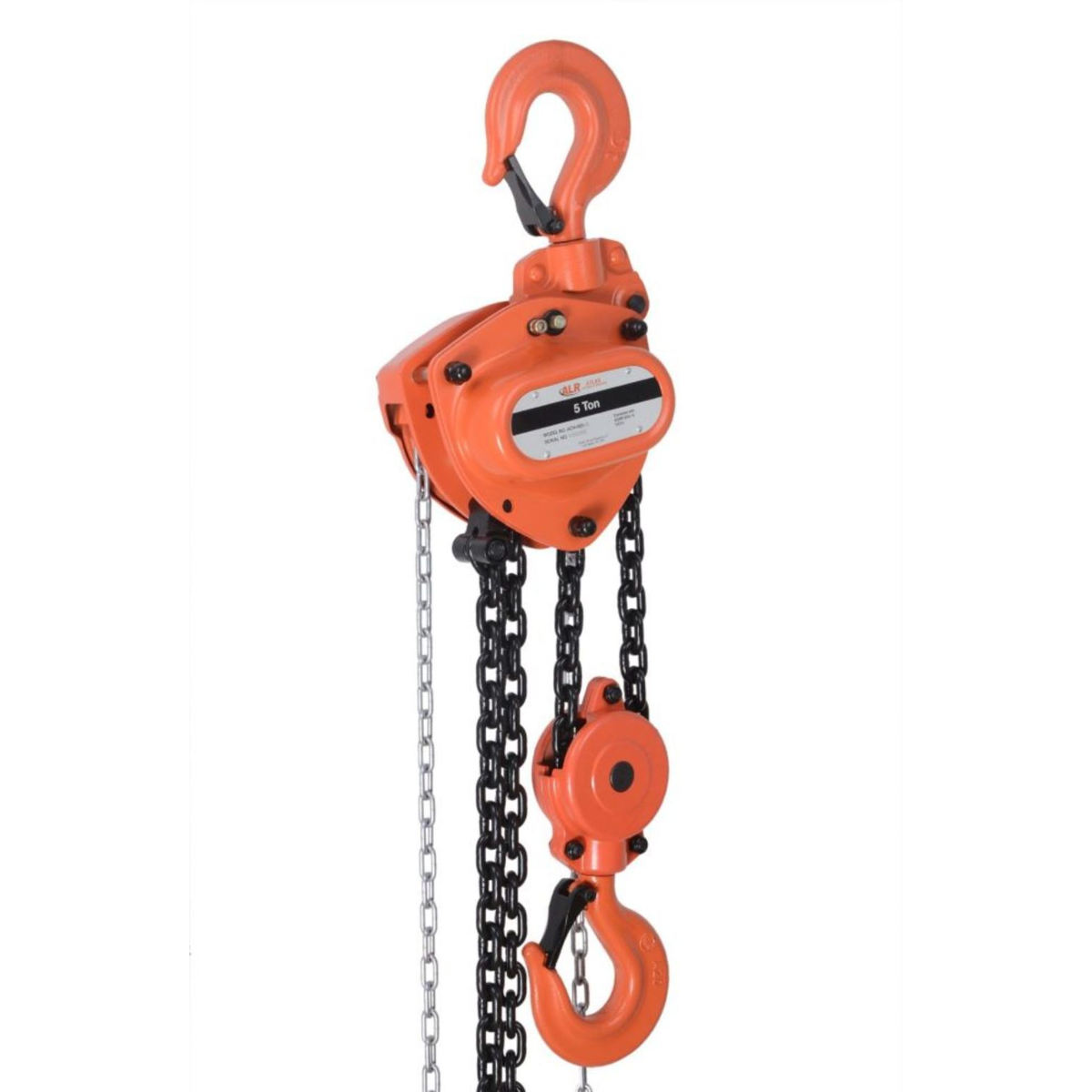

Atlas Lifting and Rigging ACH 5 Ton Chain Hoist 10 Ft. Lift with Overload Protection

Write a Review
$1,137.59
SKU: ACH-050-10-OP
Availability: In stock
Weight: 95.70 LBS
Shipping: Calculated at Checkout
Adding to cart… The item has been added

Atlas Lifting and Rigging ACH-050-10-OP Manual Chain Hoist with Overload Protection

Built for high-capacity lifting with added safety, the ACH-050-10-OP manual chain hoist is designed to tackle the most demanding loads with confidence. Featuring a 5-ton (10,000 lbs) rated capacity, a 10-foot lift height, and integrated mechanical overload protection, this hoist is the dependable choice for environments where safety and strength are critical.

The overload protection system uses a mechanical slip clutch to prevent lifting beyond the hoist’s rated load, helping to protect equipment, structures, and personnel. A robust steel body, high-grade components, and smooth-operating mechanical brake ensure reliable, controlled lifting every time.

Key Features:

  • 5-Ton Capacity with Overload Protection: The mechanical clutch stops lifting when the safe working load is exceeded.
  • 10-Foot Lift Height: Suitable for general industrial and commercial heavy-lifting tasks.
  • Heavy-Duty Steel Housing: Built for harsh conditions and repeated use.
  • Weston-Style Mechanical Brake: Provides positive load holding and smooth operation.
  • Grade 80 Alloy Steel Chain: Tough, corrosion-resistant chain for maximum durability.
  • Swivel Hooks with Safety Latches: Forged steel hooks ensure secure, flexible rigging connections.
  • Sealed Gear and Brake System: Protects internal components for extended service life.

Specifications:

  • Model: ACH-050-10-OP
  • Capacity: 5 Ton (10,000 lbs / 4,536 kg)
  • Lift Height: 10 ft (3 m)
  • Overload Protection: Integrated mechanical slip clutch
  • Load Chain: Grade 80 alloy steel, black oxide finish
  • Hand Chain: Zinc-plated steel
  • Brake Type: Weston-style mechanical load brake
  • Hook Type: Forged steel swivel hooks with safety latches
  • Headroom: Approx. 22–24 inches
  • Operating Temperature: -40°F to 140°F (-40°C to 60°C)
  • Net Weight: Approx. 100–108 lbs

The Atlas ACH-050-10-OP provides peace of mind for critical lifting operations—combining professional-grade strength with enhanced safety through integrated overload protection.
