Product Overview

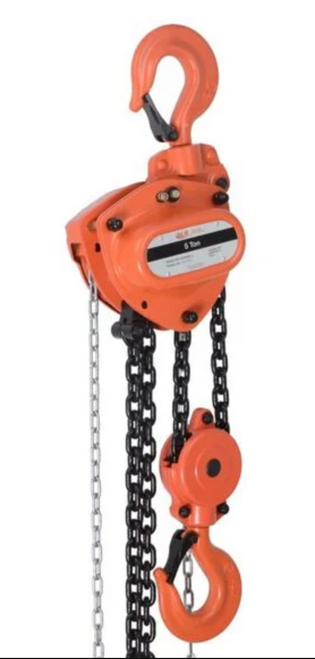

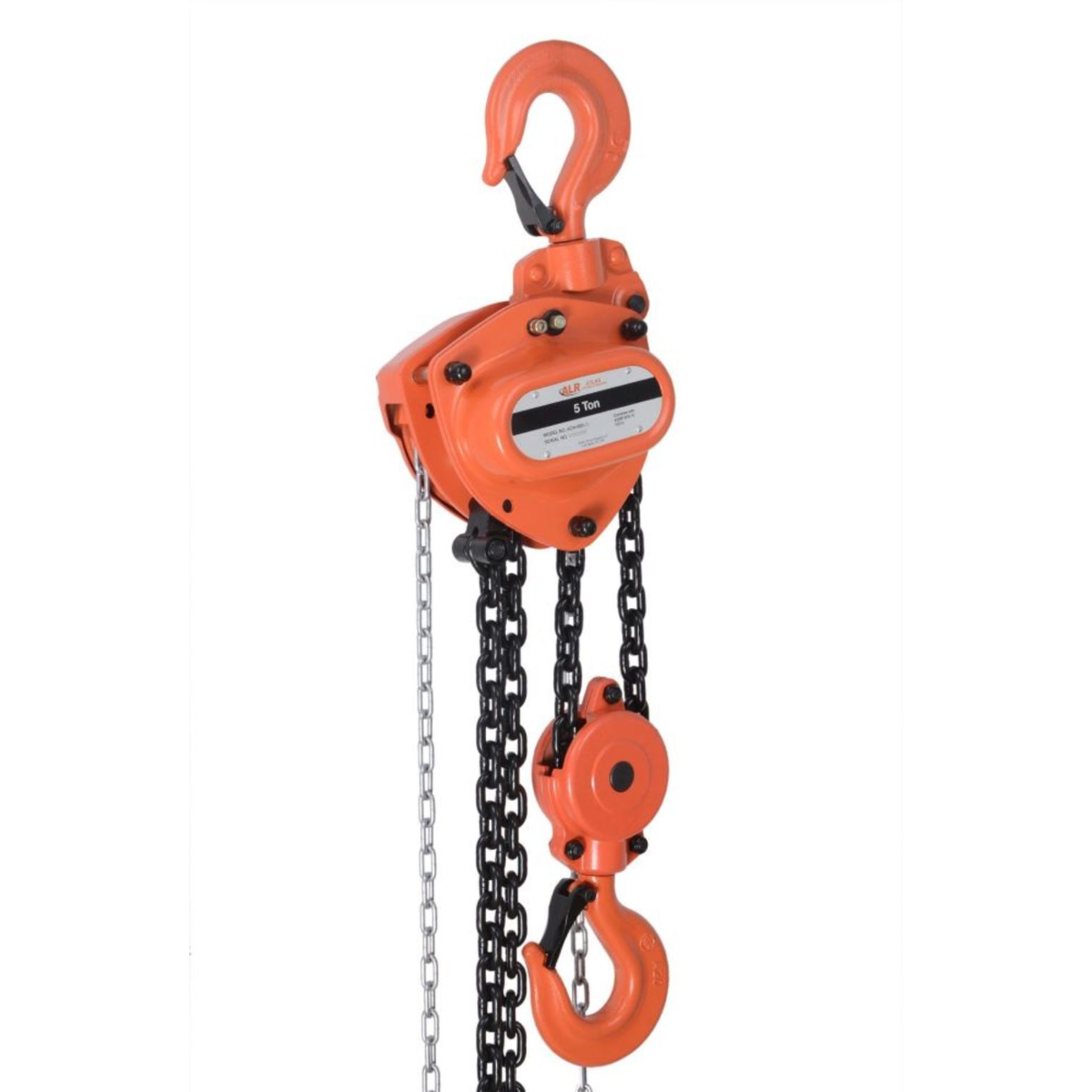

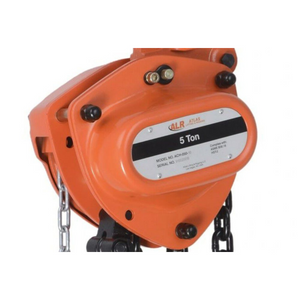

Atlas Lifting and Rigging ACH-050-15-OP Manual Chain Hoist with Overload Protection
The ACH-050-15-OP delivers trusted lifting performance for heavy-duty operations where safety is paramount. With a 5-ton (10,000 lbs) load capacity and a 15-foot lift height, this manual chain hoist is built for industrial-grade reliability. Hoist comes equipped with integrated overload protection to safeguard personnel, equipment, and structures.
The mechanical overload clutch engages automatically if the load exceeds the rated capacity, preventing damage and enhancing workplace safety. Using premium-grade materials, precision machining, and a robust braking system, this hoist ensures smooth and controlled operation under the heaviest loads.
Key Features:
- 5-Ton Capacity with Overload Protection: Built-in mechanical slip clutch stops lifting when the rated load is exceeded.
- 15-Foot Lift Height: Extended reach for versatile lifting tasks across job sites or facilities.
- Heavy-Duty Steel Construction: Built to handle harsh industrial environments.
- Weston-Style Mechanical Load Brake: Ensures positive load holding and consistent control.
- Grade 80 Alloy Steel Chain: High-strength, corrosion-resistant chain for lasting performance.
- Swivel Hooks with Safety Latches: Forged steel hooks provide secure and adaptable rigging.
- Sealed Brake and Gear Housing: Protects internal mechanisms from dirt and moisture.
Specifications:
- Model: ACH-050-15-OP
- Capacity: 5 Ton (10,000 lbs / 4,536 kg)
- Lift Height: 15 ft (4.5 m)
- Overload Protection: Integrated mechanical slip clutch
- Load Chain: Grade 80 alloy steel, black oxide finish
- Hand Chain: Zinc-plated steel
- Brake Type: Weston-style mechanical load brake
- Hook Type: Forged steel swivel hooks with safety latches
- Headroom: Approx. 22–24 inches
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 120–128 lbs
The Atlas ACH-050-15-OP offers a strong balance of power, precision, and built-in safety—ideal for lifting heavy loads where extended height and operator protection are crucial.
