Product Overview

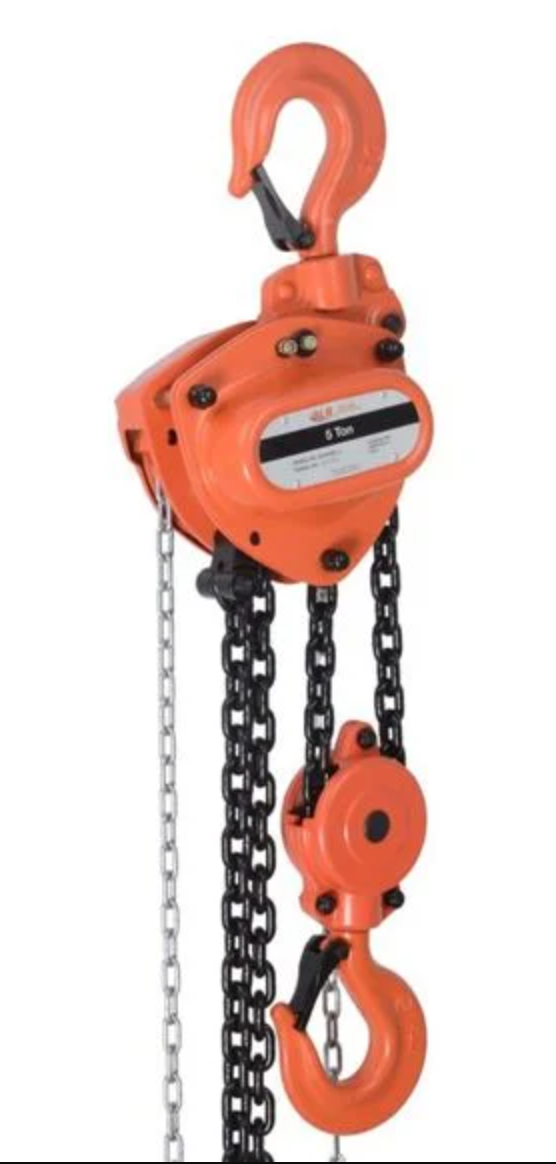

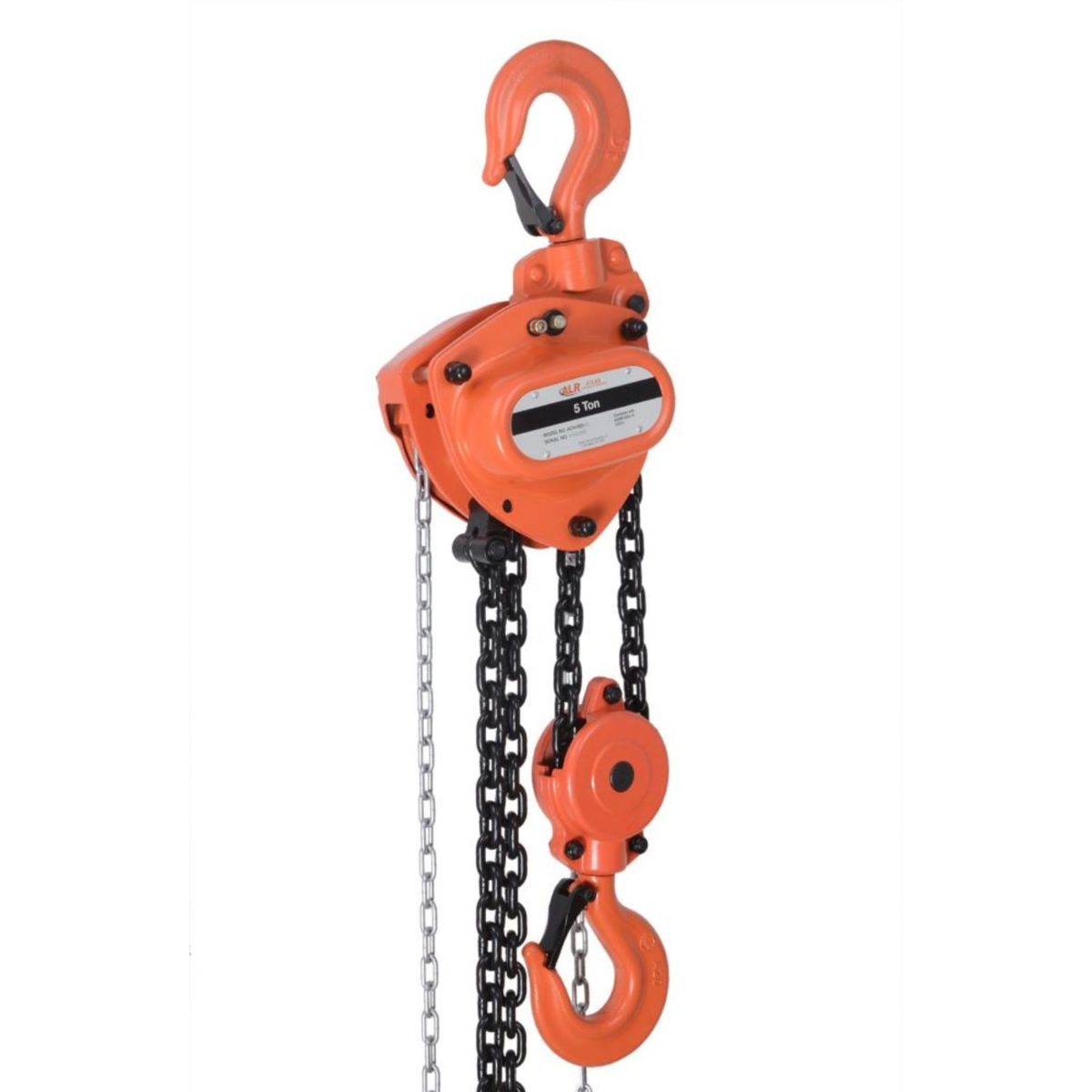

Atlas Lifting and Rigging ACH-050-20-OP Manual Chain Hoist with Overload Protection
The ACH-050-20-OP manual chain hoist is purpose-built for safe, heavy lifting in high-reach applications. With a 5-ton (10,000 lbs) rated capacity, a 20-foot lift height, and an integrated mechanical overload protection system, this hoist offers industrial-grade reliability with enhanced safety features for critical load-handling tasks.
Its overload protection clutch engages automatically to prevent lifting beyond rated limits, helping to safeguard both the operator and the equipment. Combined with forged steel components, a durable Grade 80 alloy load chain, and a Weston-style mechanical brake, this hoist is built to perform under pressure—job after job.
Key Features:
- 5-Ton Lifting Capacity with Overload Protection: Prevents damage by engaging a slip clutch when the load exceeds safe working limits.
- 20-Foot Lift Height: Extended reach for deep lifts or elevated load points.
- Reinforced Steel Housing: Built tough to withstand industrial wear and tear.
- Weston-Style Load Brake: Offers consistent load holding and smooth braking action.
- Grade 80 Alloy Steel Load Chain: High tensile strength and corrosion resistance.
- Forged Swivel Hooks with Safety Latches: Secure connections with full rotation for easier rigging.
- Sealed Gear and Brake Mechanism: Protects internals from contaminants for longer service life.
Specifications:
- Model: ACH-050-20-OP
- Capacity: 5 Ton (10,000 lbs / 4,536 kg)
- Lift Height: 20 ft (6 m)
- Overload Protection: Integrated mechanical slip clutch
- Load Chain: Grade 80 alloy steel, black oxide finish
- Hand Chain: Zinc-plated steel
- Brake Type: Weston-style mechanical load brake
- Hook Type: Forged steel swivel hooks with safety latches
- Headroom: Approx. 22–24 inches
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 140–148 lbs
The Atlas ACH-050-20-OP is the go-to hoist for professionals who require high-capacity lifting, increased height, and built-in safeguards—all in one reliable tool.
