Product Overview

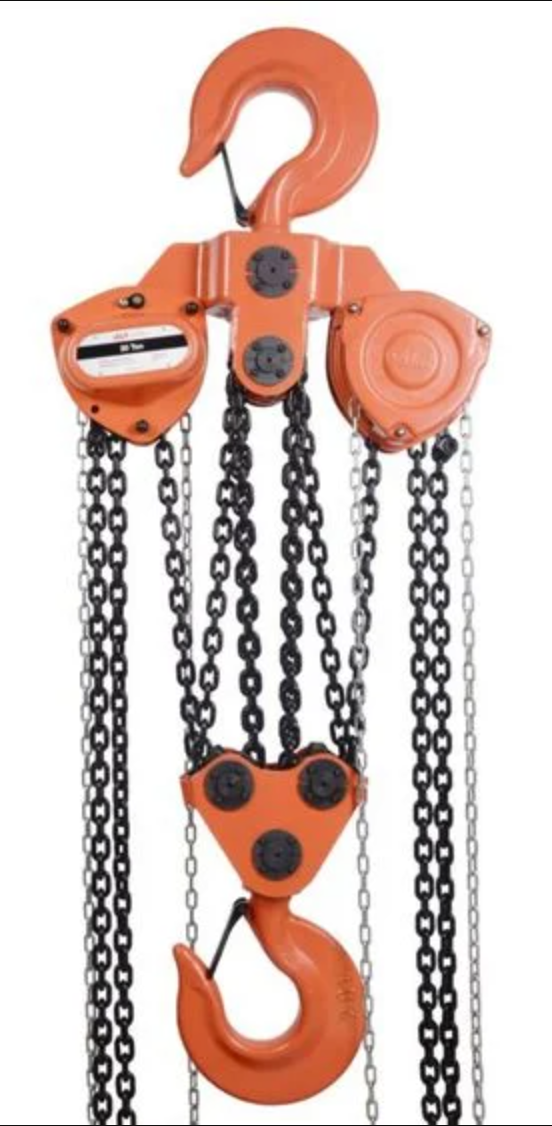

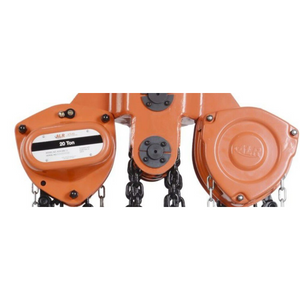

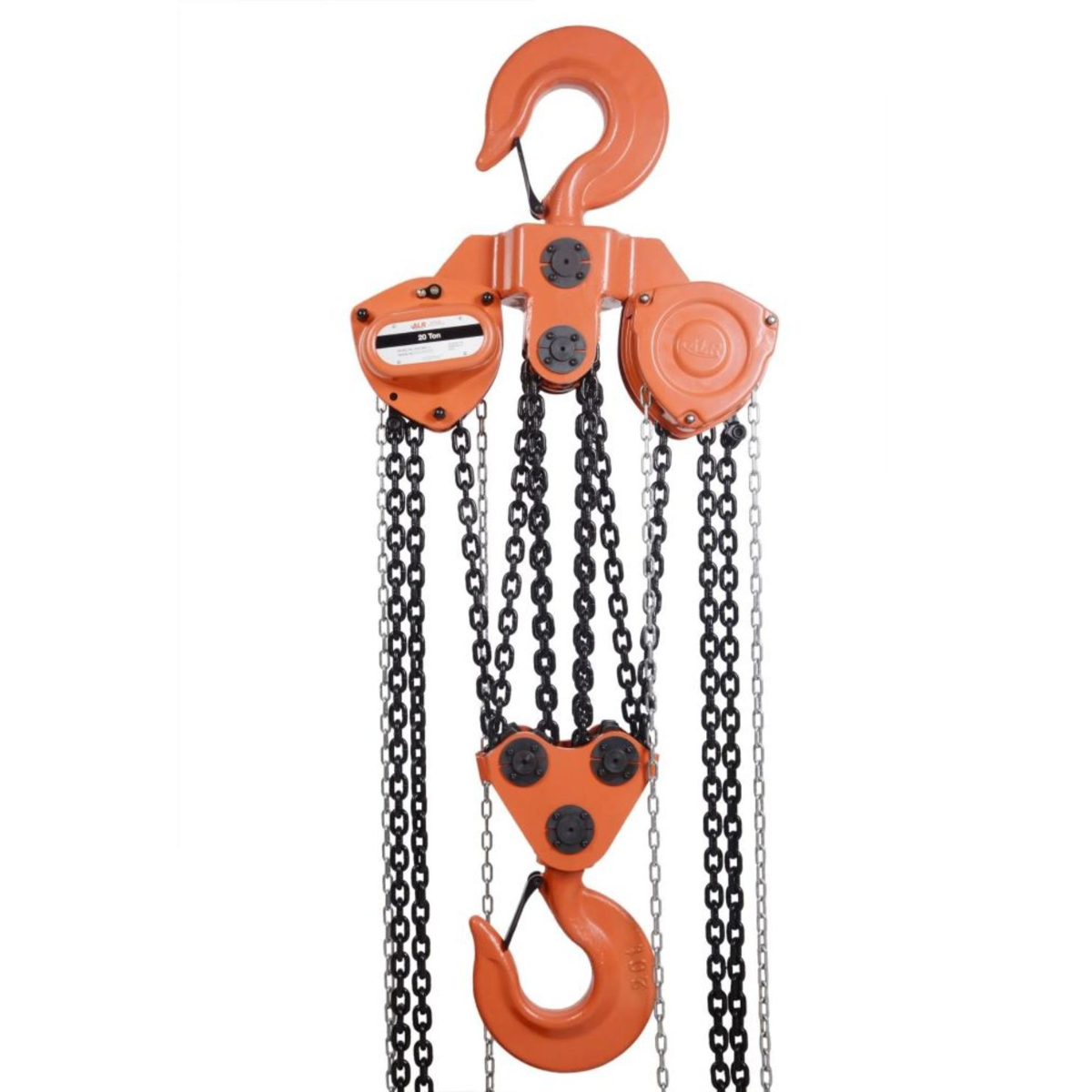

Atlas Lifting and Rigging ACH-200-30-OP Manual Chain Hoist with Overload Protection
The ACH-200-30-OP combines high lifting capacity with essential safety features. Rated for 20 tons (40,000 lbs) and featuring a 30-foot lift height, this hoist includes integrated mechanical overload protection that prevents lifting beyond the rated capacity to protect operators and equipment.
Constructed with a heavy-duty steel frame, a Weston-style mechanical load brake, and a Grade 80 alloy steel load chain, it provides smooth and reliable operation in harsh industrial conditions. Forged swivel hooks with safety latches allow for secure and flexible rigging, while the sealed gear and brake housing protect internal components from contaminants.
Key Features:
- 20-Ton Capacity with Overload Protection: Mechanical slip clutch limits lifting beyond rated load.
- 30-Foot Lift Height: Designed for high-clearance lifting applications.
- Rugged Steel Construction: Durable for long-term industrial use.

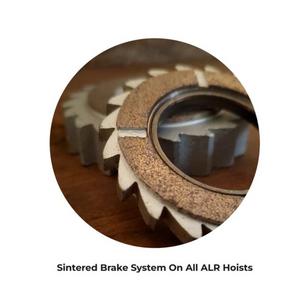

- Weston-Style Mechanical Load Brake: Ensures secure holding and smooth lowering.
- Grade 80 Alloy Steel Load Chain: High-strength and corrosion-resistant.

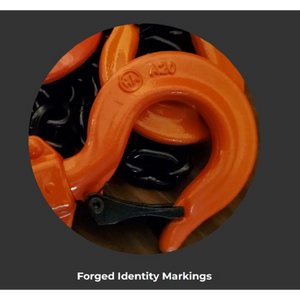

- Forged Swivel Hooks with Safety Latches: Secure 360° rotating load attachment.
- Sealed Gear and Brake Housing: Protects internal parts from dust and moisture.
Specifications:
- Model: ACH-200-30-OP
- Capacity: 20 Ton (40,000 lbs / 18,144 kg)
- Lift Height: 30 ft (9 m)
- Overload Protection: Integrated mechanical slip clutch
- Load Chain: Grade 80 alloy steel, black oxide finish
- Hand Chain: Zinc-plated steel
- Brake Type: Weston-style mechanical load brake
- Hook Type: Forged steel swivel hooks with safety latches
- Headroom: Approx. 36–40 inches
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 620–650 lbs
The Atlas ACH-200-30-OP offers heavy-duty lifting strength, combined with advanced overload protection, making it an excellent choice for demanding industrial lifting applications.
