Product Overview

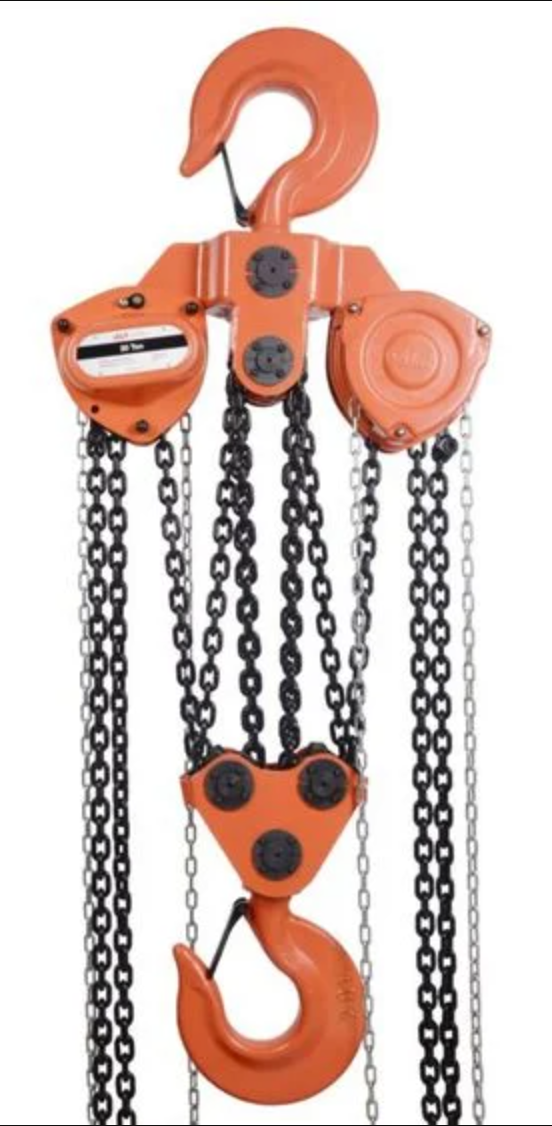

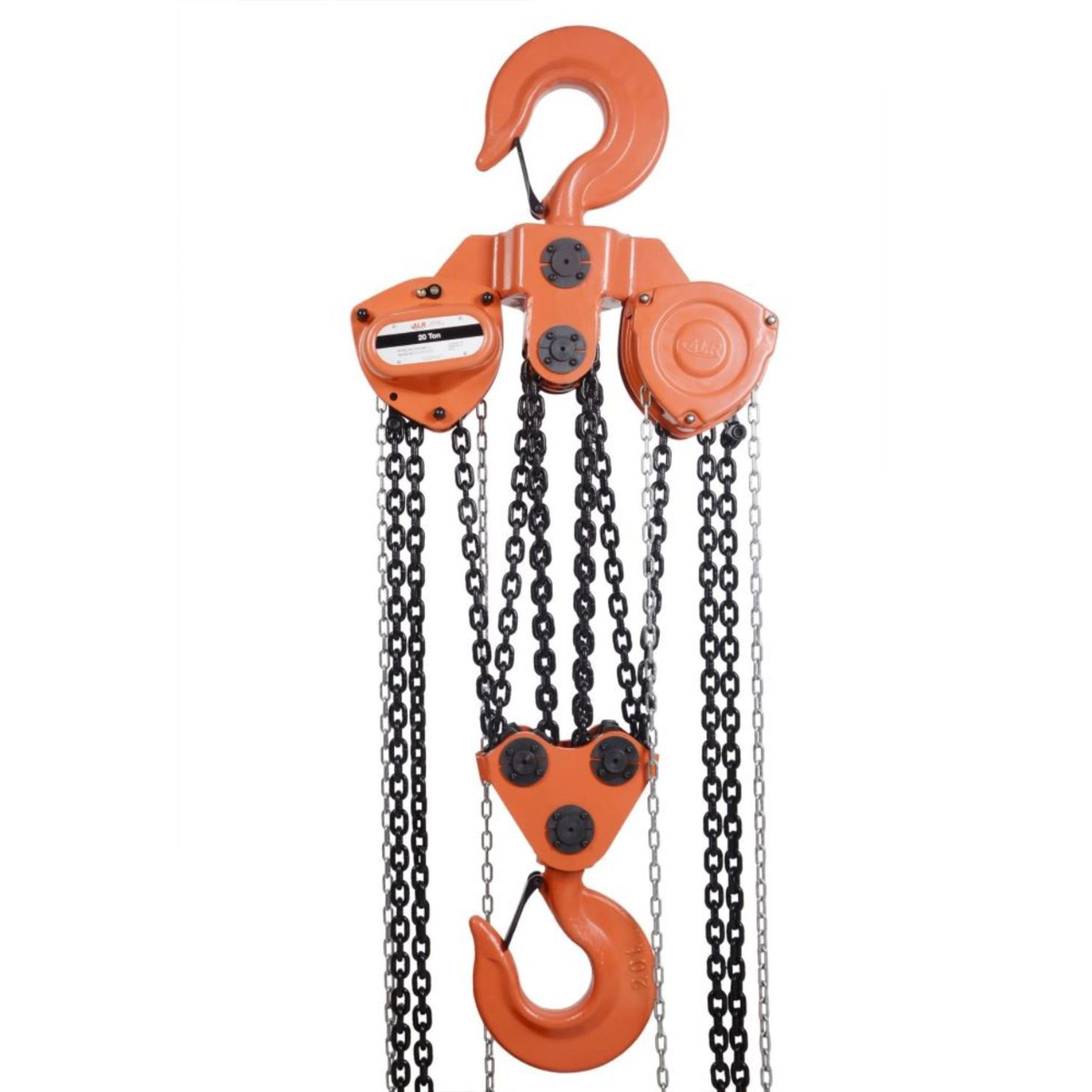

Atlas Lifting and Rigging ACH-200-30 Manual Chain Hoist
The ACH-200-30 offers heavy-duty lifting capability with a 20-ton (40,000 lbs) capacity and an extended 30-foot lift height. This manual chain hoist is built for demanding industrial applications where both strength and reach are critical.
Featuring a rugged steel frame, Weston-style mechanical load brake, and Grade 80 alloy steel load chain, the hoist ensures smooth and secure lifting performance. Forged swivel hooks with safety latches provide versatile and safe rigging options, making this hoist reliable for heavy lifts over extended vertical distances.
Key Features:
- 20-Ton Capacity: Supports heavy industrial lifting tasks.
- 30-Foot Lift Height: Ideal for applications requiring long vertical lifts.
- Robust Steel Construction: Designed for durability in harsh environments.
- Weston-Style Mechanical Load Brake: Provides reliable load holding and controlled lowering.
- Grade 80 Alloy Steel Load Chain: High-strength and corrosion-resistant.
- Forged Swivel Hooks with Safety Latches: Allow secure 360° rotating load attachment.
- Smooth Manual Chain Operation: Facilitates consistent lifting control.
Specifications:
- Model: ACH-200-30
- Capacity: 20 Ton (40,000 lbs / 18,144 kg)
- Lift Height: 30 ft (9 m)
- Load Chain: Grade 80 alloy steel, black oxide finish
- Hand Chain: Zinc-plated steel
- Brake Type: Weston-style mechanical load brake
- Hook Type: Forged steel swivel hooks with safety latches
- Headroom: Approx. 36–40 inches
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 615–645 lbs
The Atlas ACH-200-30 delivers the power and vertical reach necessary for heavy lifting operations in demanding industrial settings.
