Product Overview

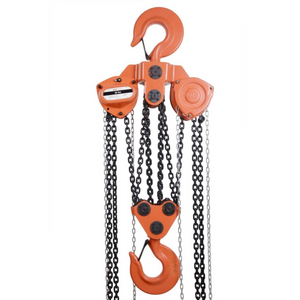

Atlas Lifting and Rigging ACH-200-15-OP Manual Chain Hoist with Overload Protection
The ACH-200-15-OP is engineered to provide heavy-duty lifting with enhanced safety features. Rated for 20 tons (40,000 lbs) and equipped with a 15-foot lift height, this hoist includes an integrated mechanical overload protection system designed to prevent lifting beyond its rated capacity, ensuring operator safety and equipment integrity.

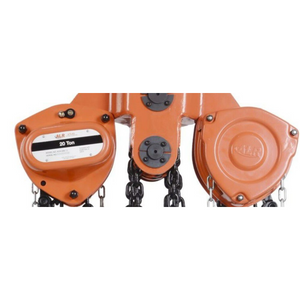

Constructed with a robust steel housing, Weston-style mechanical load brake, and Grade 80 alloy steel load chain, the hoist delivers smooth, secure operation. Forged swivel hooks with safety latches provide flexible, safe rigging options, while sealed gear and brake housing protect internal components from contaminants.
Key Features:
- 20-Ton Capacity with Overload Protection: Mechanical slip clutch prevents overload conditions.
- 15-Foot Lift Height: Suitable for a wide range of lifting applications requiring additional vertical reach.
- Heavy-Duty Steel Construction: Built to withstand challenging industrial environments.

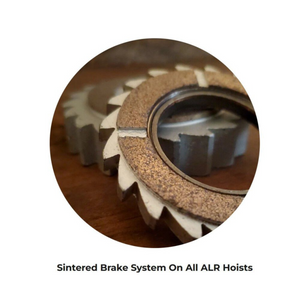

- Weston-Style Mechanical Load Brake: Ensures reliable load holding during lifting and lowering.
- Grade 80 Alloy Steel Load Chain: Durable and corrosion-resistant for long-term use.

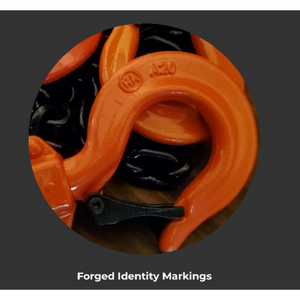

- Forged Swivel Hooks with Safety Latches: Provide secure 360° rotating load connections.
- Sealed Gear and Brake Housing: Protects against dust, moisture, and other contaminants.
Specifications:
- Model: ACH-200-15-OP
- Capacity: 20 Ton (40,000 lbs / 18,144 kg)
- Lift Height: 15 ft (4.5 m)
- Overload Protection: Integrated mechanical slip clutch
- Load Chain: Grade 80 alloy steel, black oxide finish
- Hand Chain: Zinc-plated steel
- Brake Type: Weston-style mechanical load brake
- Hook Type: Forged steel swivel hooks with safety latches
- Headroom: Approx. 36–40 inches
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 575–605 lbs
The Atlas ACH-200-15-OP offers the strength and extended reach of a 20-ton hoist, combined with crucial overload protection for safer operation in demanding environments.
