Product Overview

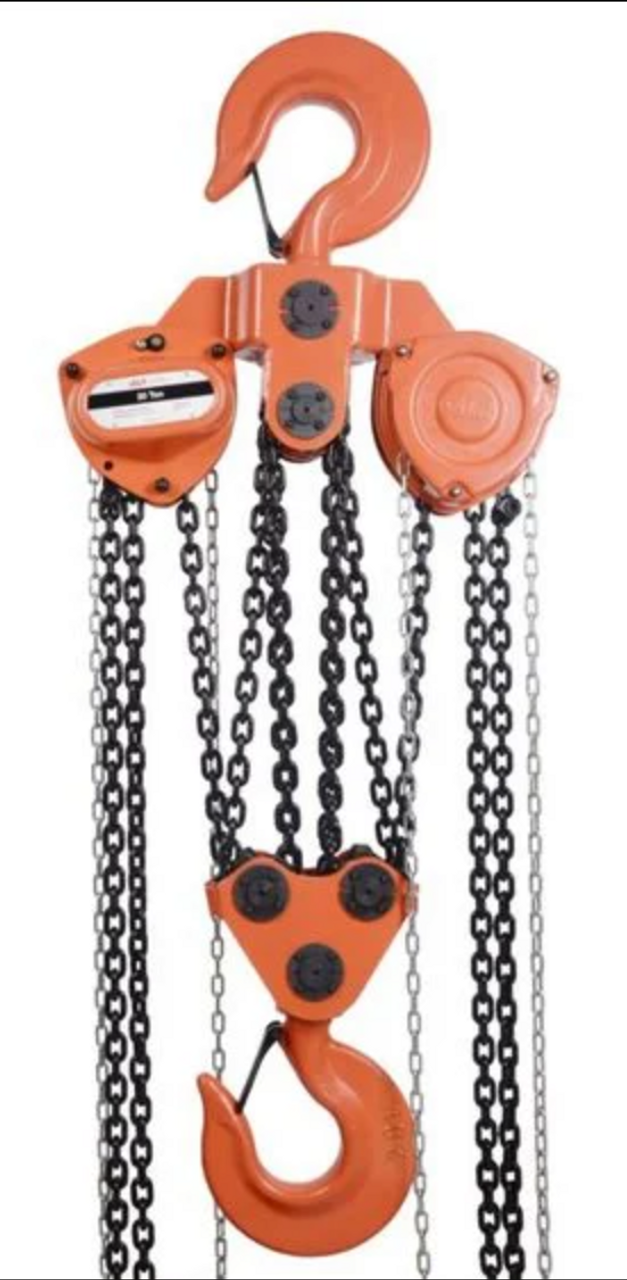

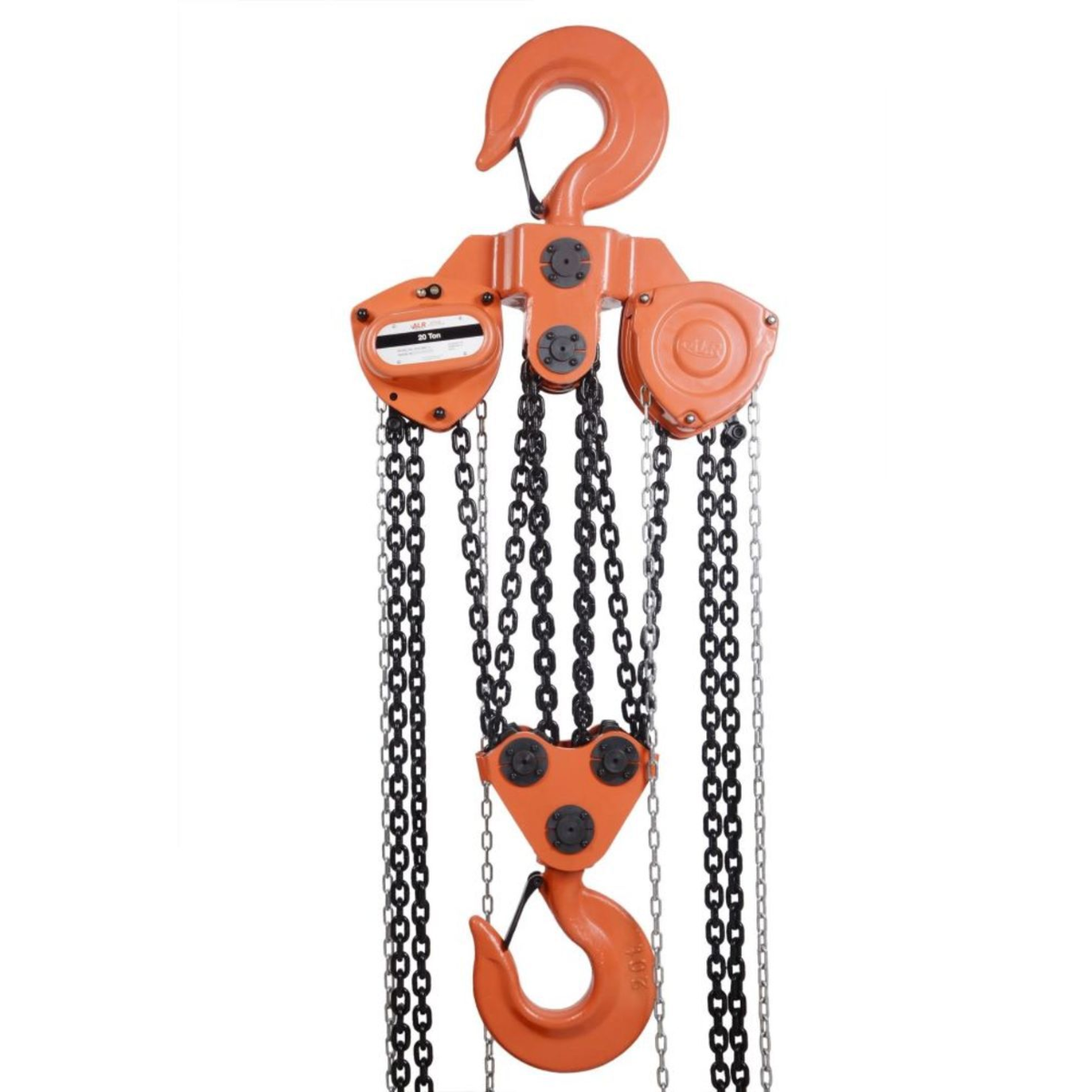

Atlas Lifting and Rigging ACH-200-20-OP Manual Chain Hoist with Overload Protection
The ACH-200-20-OP combines heavy-duty lifting capacity with essential safety features. Rated for 20 tons (40,000 lbs) and equipped with a 20-foot lift height, this hoist incorporates integrated mechanical overload protection to prevent lifting beyond rated capacity, safeguarding both the operator and equipment.
Featuring a robust steel housing, Weston-style mechanical load brake, and Grade 80 alloy steel load chain, this model delivers smooth, reliable lifting. Forged swivel hooks with safety latches allow for secure and flexible rigging, while the sealed gear and brake housing protect internal components from dirt and moisture, extending service life.
Key Features:
- 20-Ton Capacity with Overload Protection: Mechanical slip clutch prevents overload lifting.
- 20-Foot Lift Height: Suitable for high-clearance and deep-lift applications.
- Heavy-Duty Steel Construction: Built to endure tough industrial conditions.
- Weston-Style Mechanical Load Brake: Ensures secure load holding and controlled lowering.
- Grade 80 Alloy Steel Load Chain: Durable and corrosion-resistant.
- Forged Swivel Hooks with Safety Latches: Provide secure 360° rotating load attachments.
- Sealed Gear and Brake Housing: Protects internal components from contaminants.
Specifications:
- Model: ACH-200-20-OP
- Capacity: 20 Ton (40,000 lbs / 18,144 kg)
- Lift Height: 20 ft (6 m)
- Overload Protection: Integrated mechanical slip clutch
- Load Chain: Grade 80 alloy steel, black oxide finish
- Hand Chain: Zinc-plated steel
- Brake Type: Weston-style mechanical load brake
- Hook Type: Forged steel swivel hooks with safety latches
- Headroom: Approx. 36–40 inches
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 595–625 lbs
The Atlas ACH-200-20-OP provides the strength, reach, and added safety features required for demanding industrial lifting operations.
