Atlas Lifting and Rigging ACH 20 Ton Chain Hoist 20 Ft. Lift

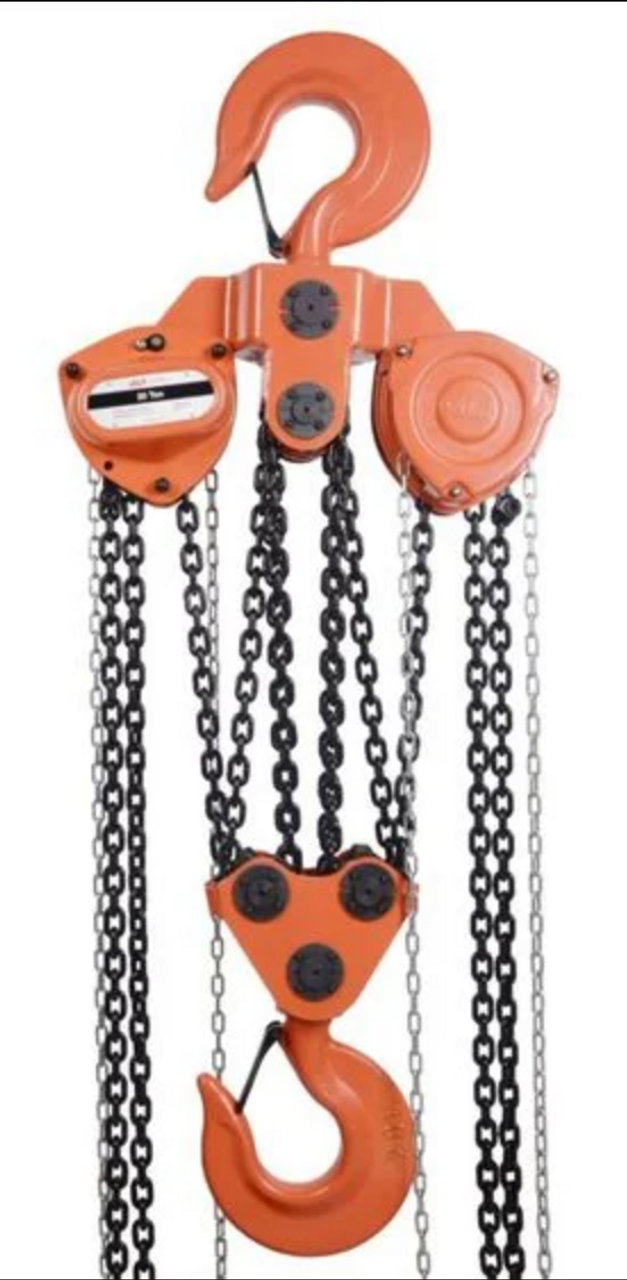

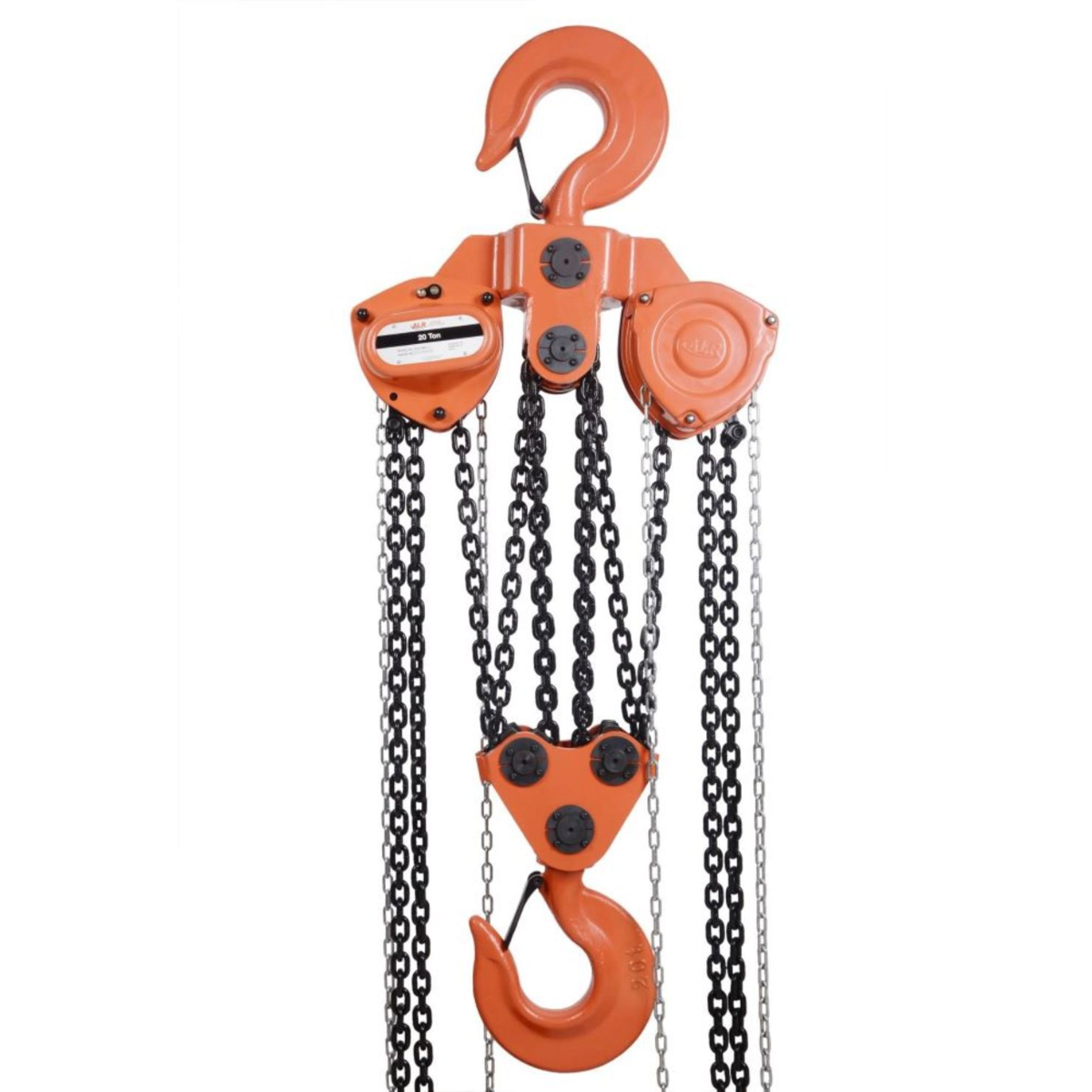

Atlas Lifting and Rigging ACH-200-20 Manual Chain Hoist

The ACH-200-20 manual chain hoist is engineered for heavy industrial lifting, providing a robust 20-ton (40,000 lbs) capacity paired with a generous 20-foot lift height. This model is ideal for applications requiring substantial load capability combined with extended vertical reach.

Built with a durable steel frame, a Weston-style mechanical load brake, and high-grade Grade 80 alloy steel load chain, the hoist ensures dependable and smooth operation under full-rated loads. Forged swivel hooks with safety latches provide secure load attachment with flexibility for a variety of rigging configurations.

Key Features:

• 20-Ton Lifting Capacity: Designed for demanding heavy lifting needs.
• 20-Foot Lift Height: Suitable for tall structures and deep-lift requirements.

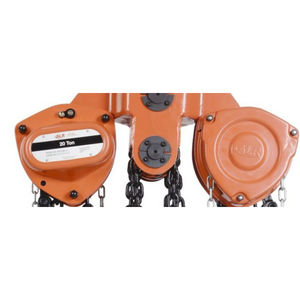

• Industrial-Grade Steel Housing: Durable frame construction for harsh environments.

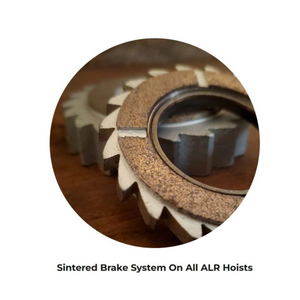

• Weston-Style Mechanical Load Brake: Provides automatic, secure load holding.
• Grade 80 Alloy Steel Load Chain: High-strength, corrosion-resistant chain.

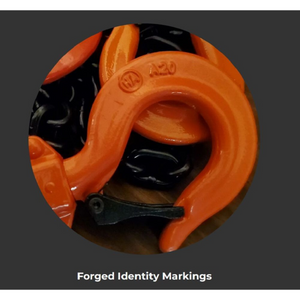

• Forged Swivel Hooks with Safety Latches: Ensure safe and flexible rigging with 360° rotation.
• Smooth Manual Chain Operation: Designed for efficient lifting control.

Specifications:

• Model: ACH-200-20
• Capacity: 20 Ton (40,000 lbs / 18,144 kg)
• Lift Height: 20 ft (6 m)
• Load Chain: Grade 80 alloy steel, black oxide finish
• Hand Chain: Zinc-plated steel
• Brake Type: Weston-style mechanical load brake
• Hook Type: Forged steel swivel hooks with safety latches
• Headroom: Approx. 36–40 inches
• Operating Temperature: -40°F to 140°F (-40°C to 60°C)
• Net Weight: Approx. 590–620 lbs

The Atlas ACH-200-20 offers reliable, heavy-duty lifting power with extended reach, making it well-suited for industrial and construction environments where performance and durability are essential.
