Product Overview

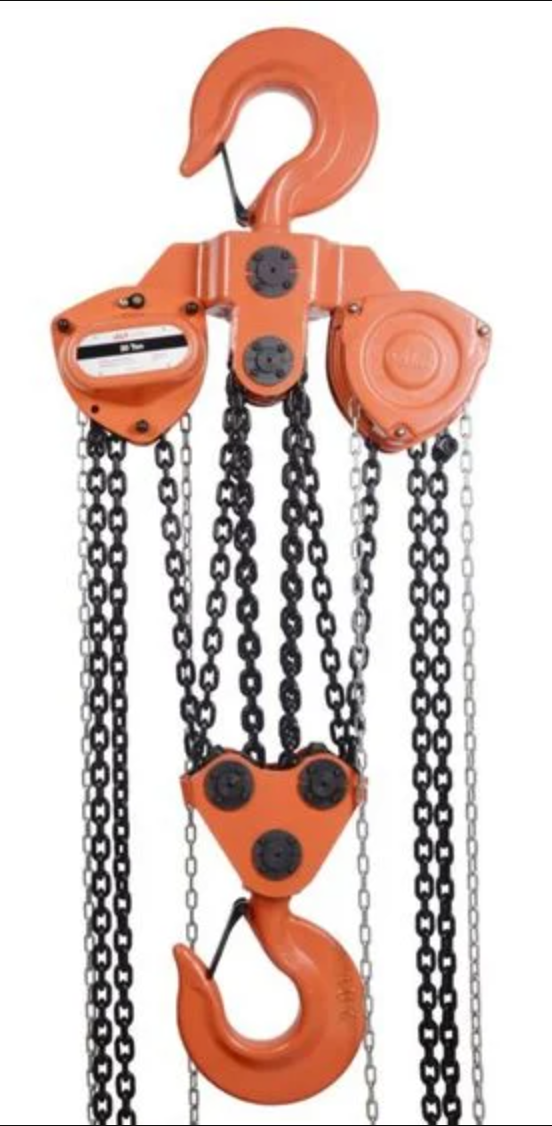

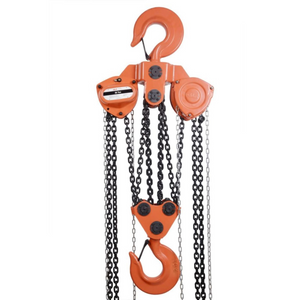

Atlas Lifting and Rigging ACH-200-10-OP Manual Chain Hoist with Overload Protection
The ACH-200-10-OP offers heavy-duty lifting power combined with advanced safety features. Rated for 20 tons (40,000 lbs) and featuring a 10-foot lift height, this hoist includes integrated mechanical overload protection to prevent lifting beyond its rated capacity, protecting both operators and equipment.
Built with a rugged steel frame, a Weston-style mechanical brake, and a Grade 80 alloy steel load chain, the hoist delivers smooth and secure lifting performance. Forged swivel hooks with safety latches enable flexible rigging and secure load attachment, while the sealed gear and brake housing shield internal components from dirt and moisture.
Key Features:
- 20-Ton Capacity with Overload Protection: A mechanical slip clutch limits lifting to the rated load for added safety.
- 10-foot Lift Height: Suitable for general-purpose lifting with limited vertical clearance.

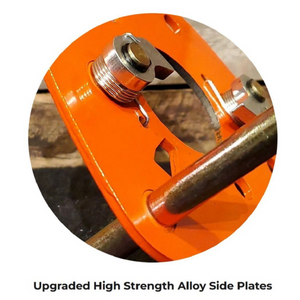

- Heavy-Duty Steel Construction: Designed for industrial durability and toughness.

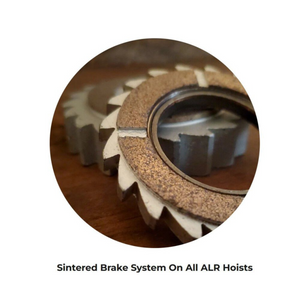

- Weston-Style Mechanical Load Brake: Ensures reliable, automatic load holding.
- Grade 80 Alloy Steel Load Chain: Strong, wear-resistant, and corrosion-protected.

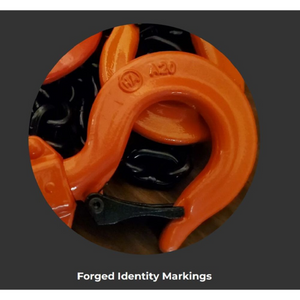

- Forged Swivel Hooks with Safety Latches: Secure, 360° rotating rigging points.
- Sealed Gear and Brake Housing: Protects against contaminants for long-term reliability.
Specifications:
- Model: ACH-200-10-OP
- Capacity: 20 Ton (40,000 lbs / 18,144 kg)
- Lift Height: 10 ft (3 m)
- Overload Protection: Integrated mechanical slip clutch
- Load Chain: Grade 80 alloy steel, black oxide finish
- Hand Chain: Zinc-plated steel
- Brake Type: Weston-style mechanical load brake
- Hook Type: Forged steel swivel hooks with safety latches
- Headroom: Approx. 36–40 inches
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 555–585 lbs
The Atlas ACH-200-10-OP combines superior lifting capacity with essential safety features, making it the best choice for industrial lifting applications that demand both strength and overload protection.
