Product Overview

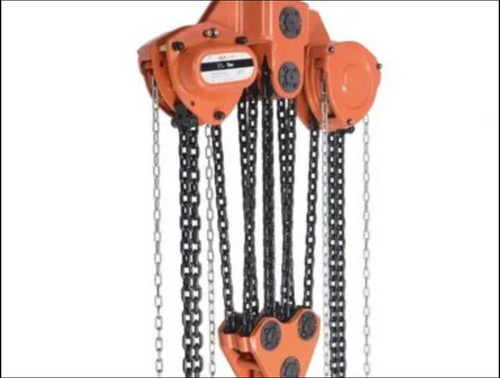

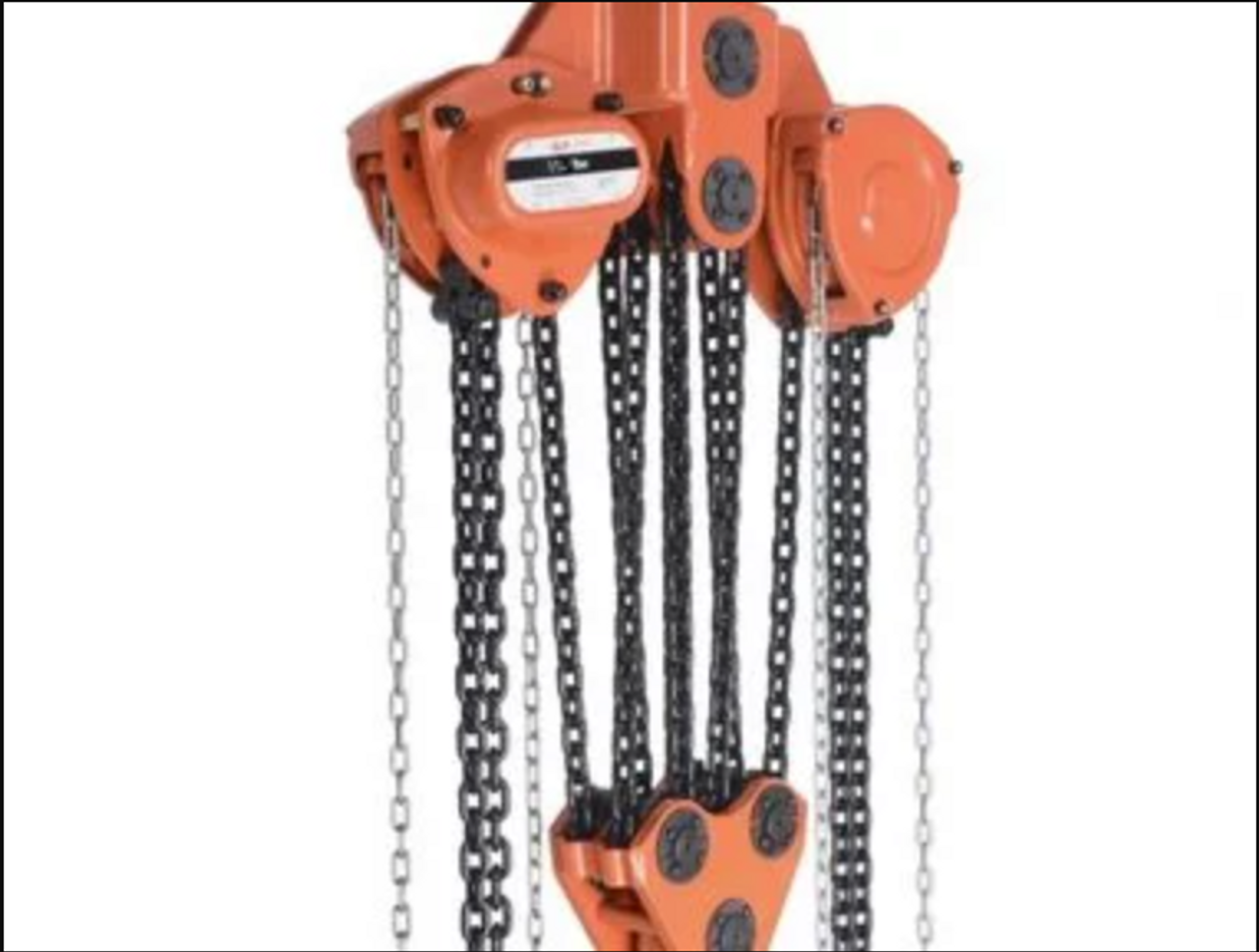

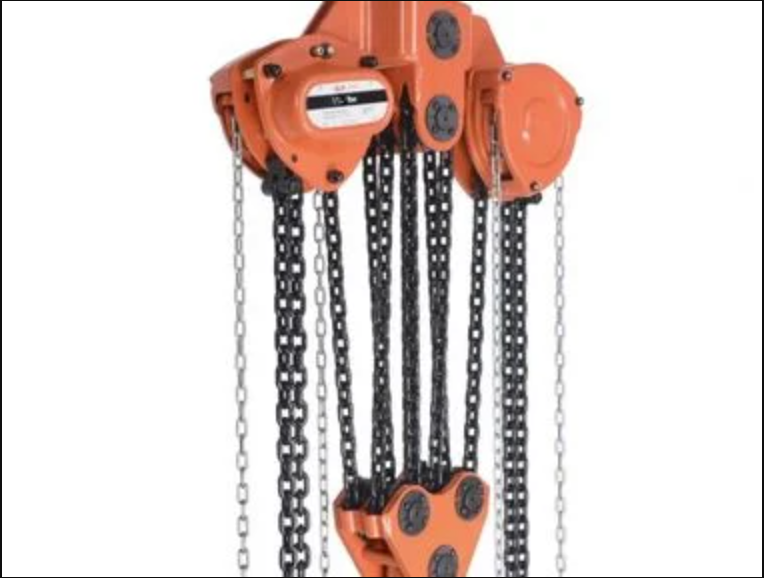

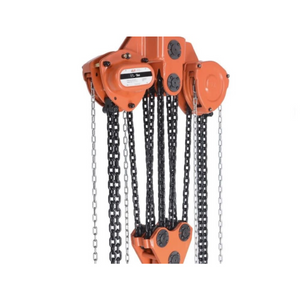

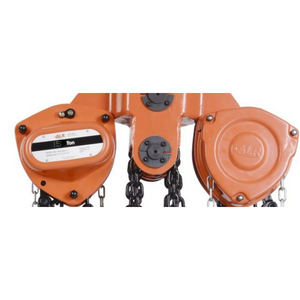

Atlas Lifting and Rigging ACH-150-20-OP Manual Chain Hoist with Overload Protection
The ACH-150-20-OP combines heavy-duty lifting capability with enhanced safety features. Rated for 15 tons (30,000 lbs) and offering a 20-foot lift height, this manual chain hoist includes an integrated mechanical overload protection system designed to prevent lifting beyond its rated capacity, protecting both operators and equipment.
Constructed with a rugged steel frame, a Weston-style mechanical brake, and a Grade 80 alloy steel load chain, the hoist provides smooth and secure operation. Forged swivel hooks with safety latches ensure reliable load attachment and flexibility in rigging setups, while the sealed gear and brake housing protect internal components from environmental contaminants.
Key Features:
- 15-Ton Capacity with Overload Protection: A mechanical slip clutch prevents overload, enhancing safety and extending equipment longevity.
- 20-Foot Lift Height: Extended vertical reach for a variety of industrial lifting applications.
- Heavy-Duty Steel Construction: Built to endure harsh working conditions.
- Weston-Style Mechanical Load Brake: Automatically holds the load securely during lifts.
- Grade 80 Alloy Steel Load Chain: Durable, wear-resistant, and corrosion-protected.
- Forged Swivel Hooks with Safety Latches: Provide secure, 360° rotating load connections.
- Sealed Gear and Brake Housing: Protects against dust, debris, and moisture intrusion.
Specifications:
- Model: ACH-150-20-OP
- Capacity: 15 Ton (30,000 lbs / 13,608 kg)
- Lift Height: 20 ft (6 m)
- Overload Protection: Integrated mechanical slip clutch
- Load Chain: Grade 80 alloy steel, black oxide finish
- Hand Chain: Zinc-plated steel
- Brake Type: Weston-style mechanical load brake
- Hook Type: Forged steel swivel hooks with safety latches
- Headroom: Approx. 32–36 inches
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 455–475 lbs
The Atlas ACH-150-20-OP is an excellent choice for heavy lifting tasks that require a long vertical reach and enhanced safety controls.
