Product Overview

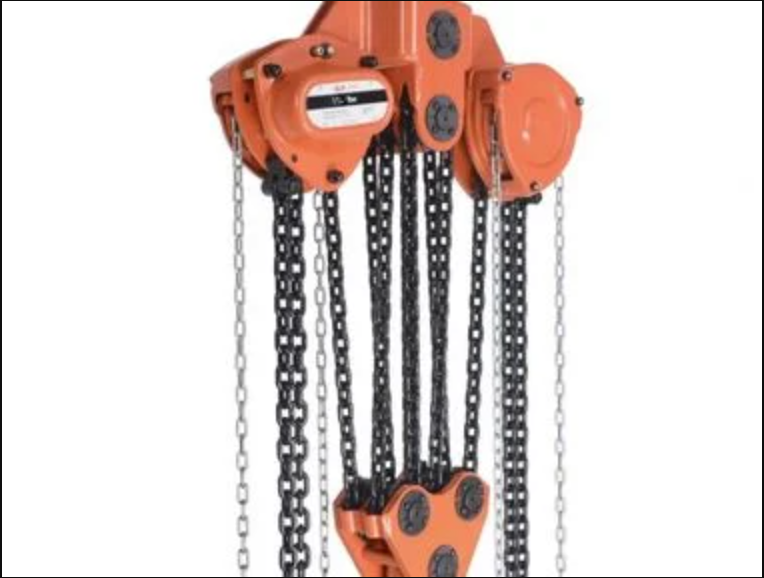

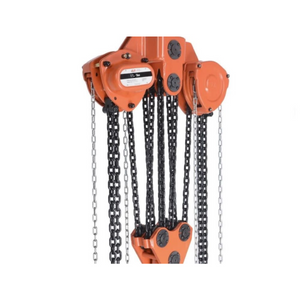

Atlas Lifting and Rigging ACH-150-30-OP Manual Chain Hoist with Overload Protection
Built for high-capacity, high-reach lifting applications, the ACH-150-30-OP offers a 15-ton (30,000 lbs) load rating and a 30-foot lift height, making it ideal for demanding industrial tasks. This hoist features mechanical overload protection, preventing lifting beyond the hoist's rated capacity and enhancing operator safety while protecting the equipment.
With a rugged steel frame, sealed internal components, and a high-strength Grade 80 alloy steel load chain, this hoist is engineered for reliability and durability in tough environments. The Weston-style mechanical brake and forged swivel hooks, equipped with safety latches, ensure precise control and secure load handling during operation.
Key Features:
- 15-Ton Capacity with Overload Protection: Integrated slip clutch safeguards against overloading.
- 30-Foot Lift Height: Long vertical reach for tall structures, pits, or elevated equipment.
- All-Steel Construction: Durable frame designed for industrial wear and tear.
- Weston-Style Mechanical Load Brake: Provides automatic, secure load holding.
- Grade 80 Alloy Steel Load Chain: Corrosion-resistant and built for heavy-duty performance.
- Forged Swivel Hooks with Safety Latches: Allow for secure, flexible rigging with full rotation.
- Sealed Gear and Brake Housing: Protects critical components from contaminants and moisture.
Specifications:
- Model: ACH-150-30-OP
- Capacity: 15 Ton (30,000 lbs / 13,608 kg)
- Lift Height: 30 ft (9 m)
- Overload Protection: Integrated mechanical slip clutch
- Load Chain: Grade 80 alloy steel, black oxide finish
- Hand Chain: Zinc-plated steel
- Brake Type: Weston-style mechanical load brake
- Hook Type: Forged steel swivel hooks with safety latches
- Headroom: Approx. 32–36 inches
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 485–505 lbs
The Atlas ACH-150-30-OP offers extended lifting height, heavy-duty construction, and added safety through overload protection—making it a trusted choice for large-scale, high-reach lifting tasks.
