Product Overview

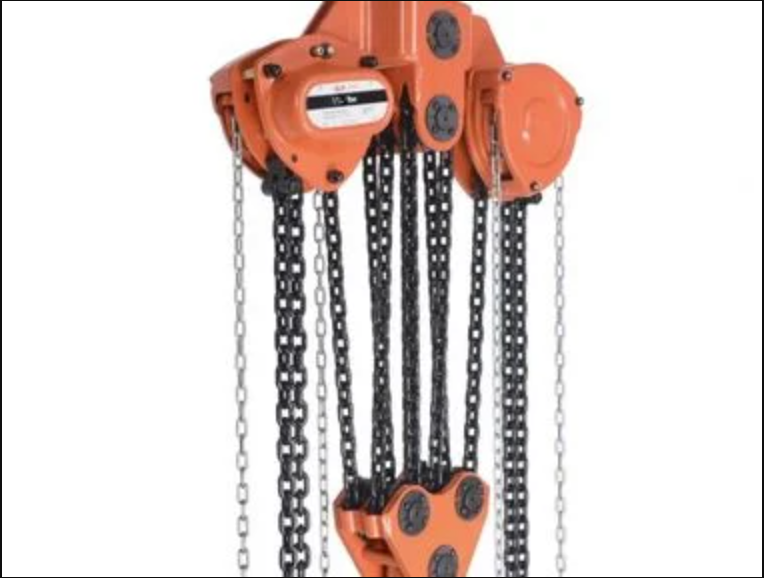

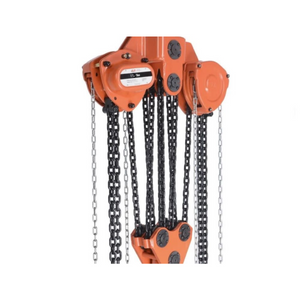

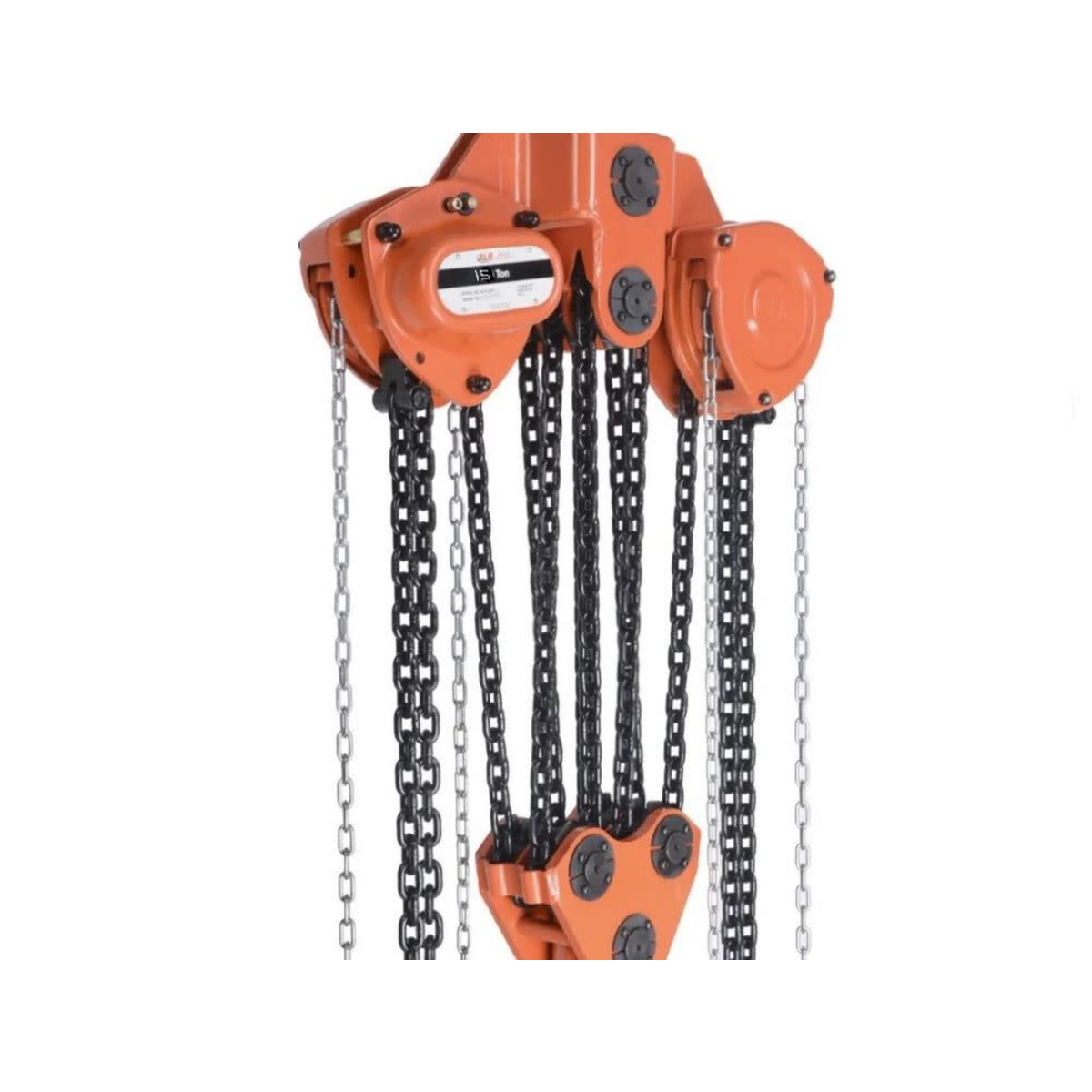

Atlas Lifting and Rigging ACH-150-15-OP Manual Chain Hoist with Overload Protection
The ACH-150-15-OP offers heavy-duty lifting capability combined with advanced safety features, rated for 15 tons (30,000 lbs) with a 15-foot lift height. Its integrated mechanical overload protection prevents lifting beyond the rated capacity, reducing risk to both operators and equipment during demanding industrial operations.
Built with a rugged steel frame, Weston-style mechanical brake, and high-strength Grade 80 alloy steel load chain, this hoist delivers smooth, secure lifting with enhanced safety. Forged swivel hooks with safety latches allow flexible rigging and reliable load attachment even in the most challenging environments.
Key Features:
- 15-Ton Capacity with Overload Protection: A mechanical slip clutch limits lifting beyond the rated load to prevent damage and enhance safety.
- 15-Foot Lift Height: Provides extended vertical reach for high or deep lifts.
- Durable Steel Housing: Designed to withstand harsh industrial conditions.
- Weston-Style Mechanical Load Brake: Securely holds loads during lifting and lowering.
- Grade 80 Alloy Steel Load Chain: High-strength and corrosion-resistant for long service life.
- Forged Swivel Hooks with Safety Latches: Enable full 360° rotation and secure rigging.
- Sealed Gear and Brake Housing: Protects internal mechanisms from dirt, dust, and moisture.
Specifications:
- Model: ACH-150-15-OP
- Capacity: 15 Ton (30,000 lbs / 13,608 kg)
- Lift Height: 15 ft (4.5 m)
- Overload Protection: Integrated mechanical slip clutch
- Load Chain: Grade 80 alloy steel, black oxide finish
- Hand Chain: Zinc-plated steel
- Brake Type: Weston-style mechanical load brake
- Hook Type: Forged steel swivel hooks with safety latches
- Headroom: Approx. 32–36 inches
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 435–455 lbs
The Atlas ACH-150-15-OP is an ideal solution for heavy lifting tasks that require not only power but also an added layer of safety to protect equipment and operators.
