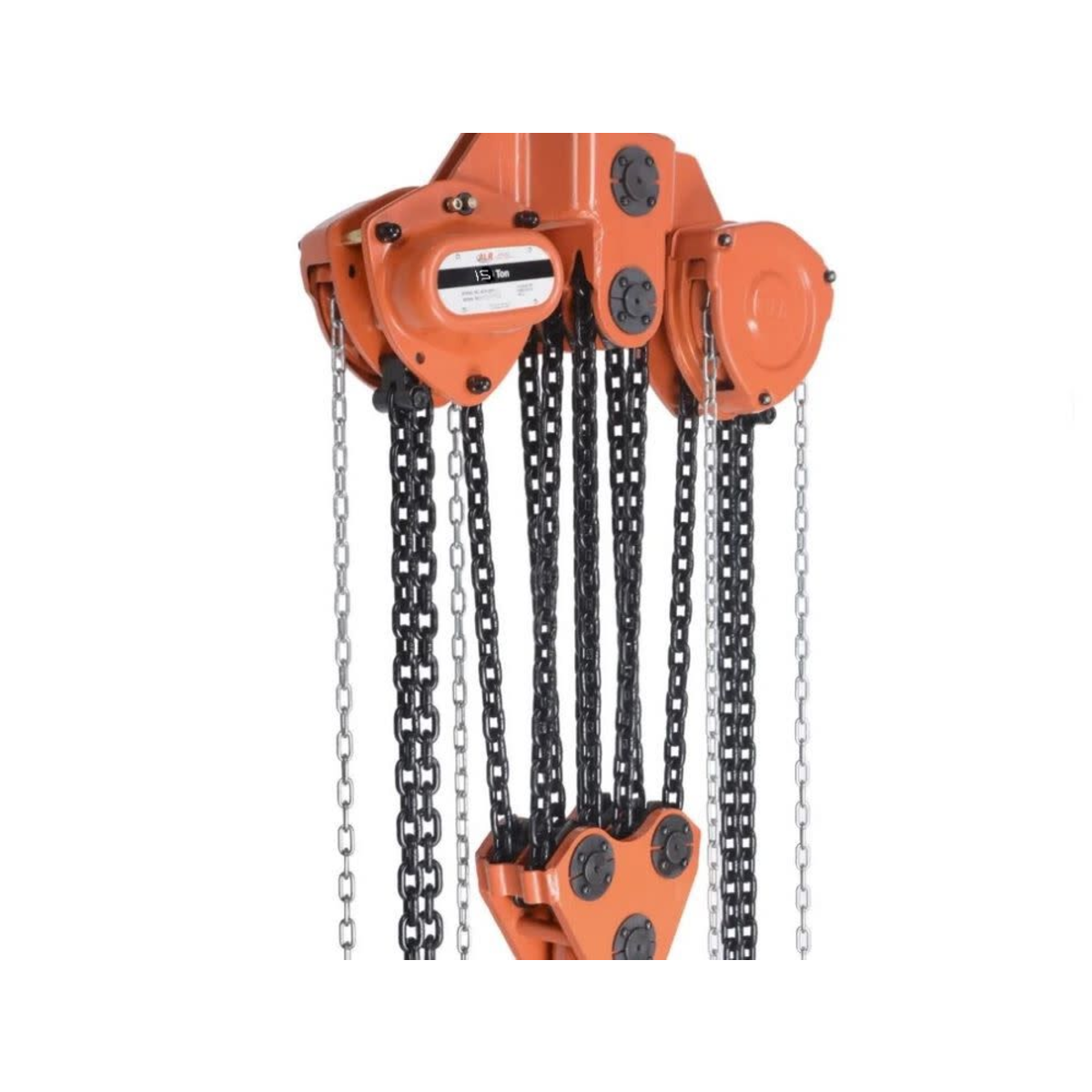

Atlas Lifting and Rigging ACH 15 Ton Chain Hoist 10 Ft. Lift with Overload Protection

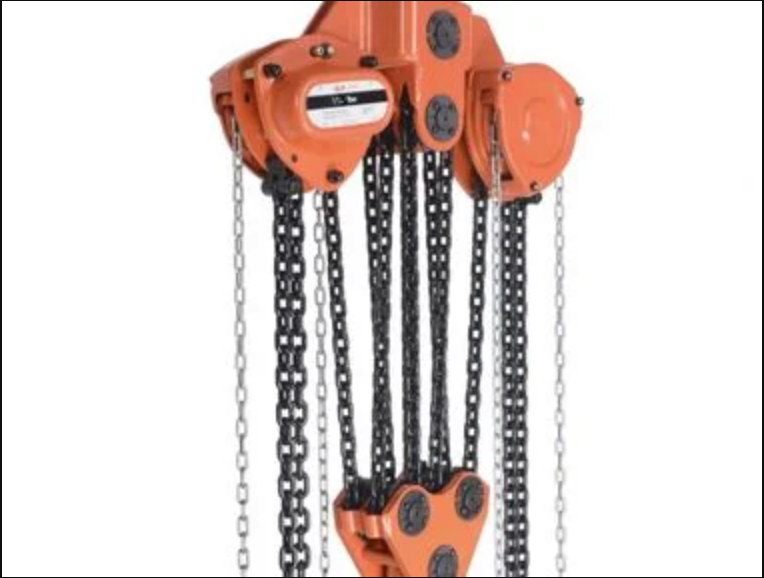

Atlas Lifting and Rigging ACH-150-10-OP Manual Chain Hoist with Overload Protection

Engineered for high-capacity lifting with built-in safety, the ACH-150-10-OP is a manual chain hoist rated for 15 tons (30,000 lbs) and features a 10-foot lift height. With a heavy-duty design and integrated mechanical overload protection, this hoist ensures optimal performance while guarding against dangerous overloading.

The overload protection system engages a slip clutch to prevent lifting beyond the rated capacity, reducing equipment strain and enhancing operator safety. Combined with forged swivel hooks, a rugged steel frame, and a Grade 80 alloy steel chain, the ACH-150-10-OP is built for the most demanding industrial environments.

Key Features:

• 15-Ton Capacity with Overload Protection: Mechanical slip clutch prevents lifting loads beyond rated capacity.

• 10-Foot Lift Height: Provides reliable reach for ground-level and elevated applications.

• Durable All-Steel Construction: Built to perform in harsh, high-load conditions.

• Weston-Style Mechanical Load Brake: Ensures secure load control and automatic holding.

• Grade 80 Alloy Steel Load Chain: High-strength, corrosion-resistant chain for long-term use.

• Forged Swivel Hooks with Safety Latches: Enable full rotation and dependable rigging.

• Sealed Brake and Gear Housing: Protects internal components from dust and moisture.

Specifications:

• Model: ACH-150-10-OP

• Capacity: 15 Ton (30,000 lbs / 13,608 kg)

• Lift Height: 10 ft (3 m)

• Overload Protection: Integrated mechanical slip clutch

• Load Chain: Grade 80 alloy steel, black oxide finish

• Hand Chain: Zinc-plated steel

• Brake Type: Weston-style mechanical load brake

• Hook Type: Forged steel swivel hooks with safety latches

• Headroom: Approx. 32–36 inches

• Operating Temperature: -40°F to 140°F (-40°C to 60°C)

• Net Weight: Approx. 415–435 lbs

The Atlas ACH-150-10-OP is the dependable choice for lifting heavy loads safely and efficiently, with integrated safeguards to ensure optimal performance in industrial settings.
