Product Overview

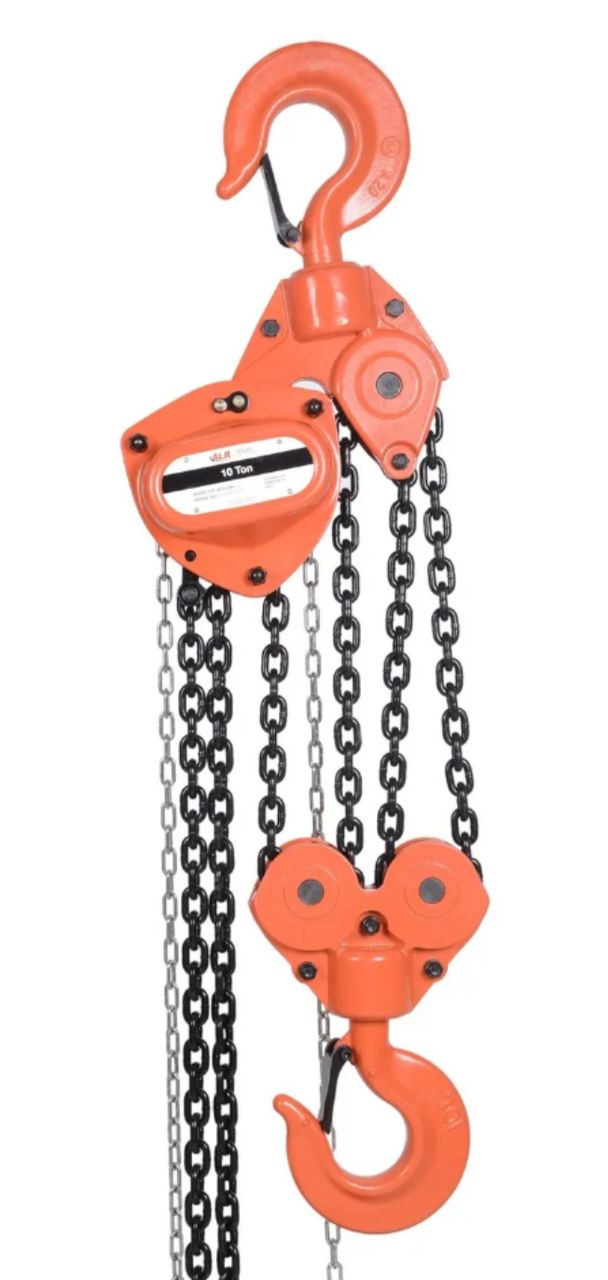

Atlas Lifting and Rigging ACH-100-15-OP Manual Chain Hoist with Overload Protection
The ACH-100-15-OP manual chain hoist delivers robust lifting power, added safety, and extended reach—all in one high-performance package. With a 10-ton (20,000 lbs) capacity and a 15-foot lift height, this hoist is engineered for demanding applications in industrial, construction, and maintenance environments. The integrated overload protection system provides an added layer of safety by automatically engaging a slip clutch if the load exceeds the rated capacity.
Forged from premium-grade steel and featuring a Grade 80 alloy chain, a sealed Weston-style brake, and swivel hooks with safety latches, this hoist is built for strength, durability, and consistent performance in the most demanding conditions.
Key Features:
- 10-Ton Lifting Capacity with Overload Protection: Prevents overloading by disengaging the lifting mechanism when capacity is exceeded.
- 15-Foot Lift Height: Versatile reach for elevated or deep-lift tasks.
- Heavy-Duty Steel Construction: Engineered for extreme-duty industrial applications.
- Weston-Style Mechanical Brake: Automatically holds the load during lifting and lowering operations.
- Grade 80 Alloy Steel Load Chain: High strength and wear-resistant for extended service life.
- Forged Swivel Hooks with Safety Latches: Allow safe, full-rotation rigging and secure connections.
- Sealed Gear and Brake Housing: Keeps contaminants out for long-term reliability.
Specifications:
- Model: ACH-100-15-OP
- Capacity: 10 Ton (20,000 lbs / 9,072 kg)
- Lift Height: 15 ft (4.5 m)
- Overload Protection: Integrated mechanical slip clutch
- Load Chain: Grade 80 alloy steel, black oxide finish
- Hand Chain: Zinc-plated steel
- Brake Type: Weston-style mechanical load brake
- Hook Type: Forged steel swivel hooks with safety latches
- Headroom: Approx. 30–34 inches
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 290–305 lbs
The Atlas ACH-100-15-OP is the perfect solution for critical heavy-lift operations where performance, reach, and safety are top priorities.
