Product Overview

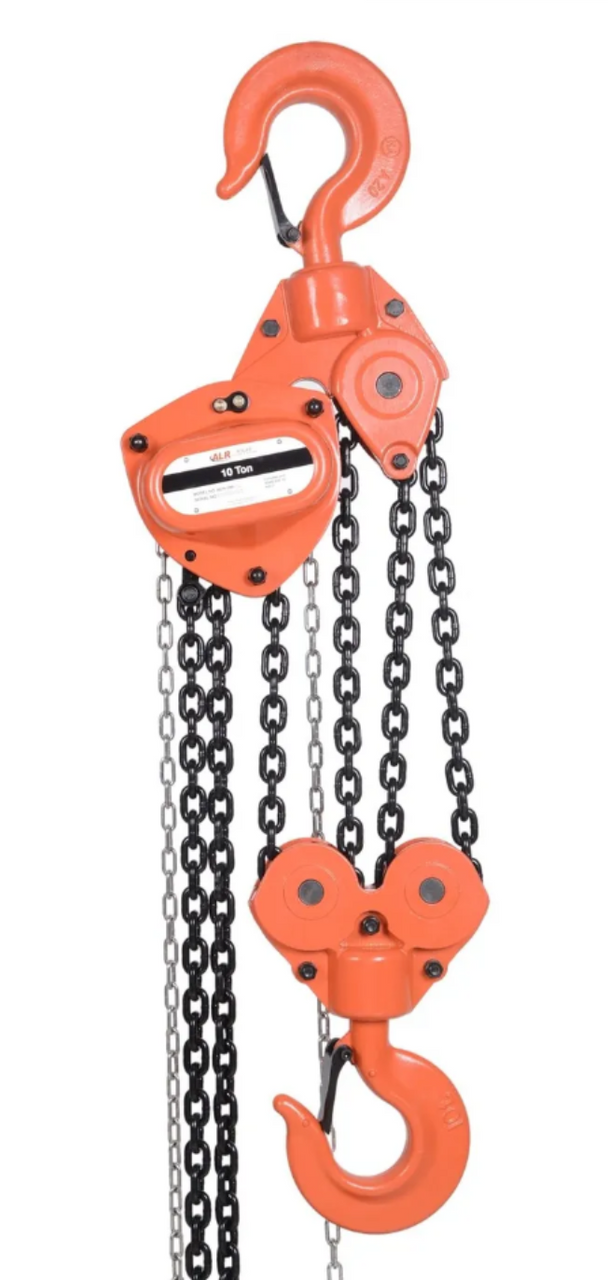

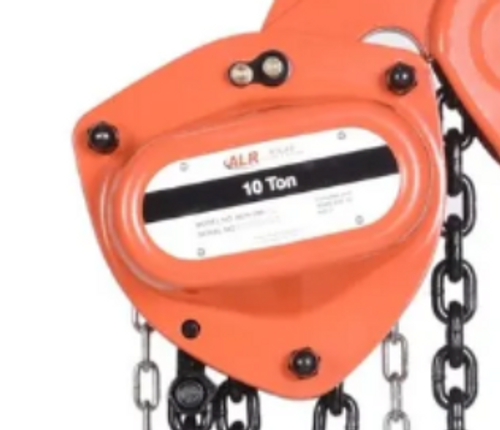

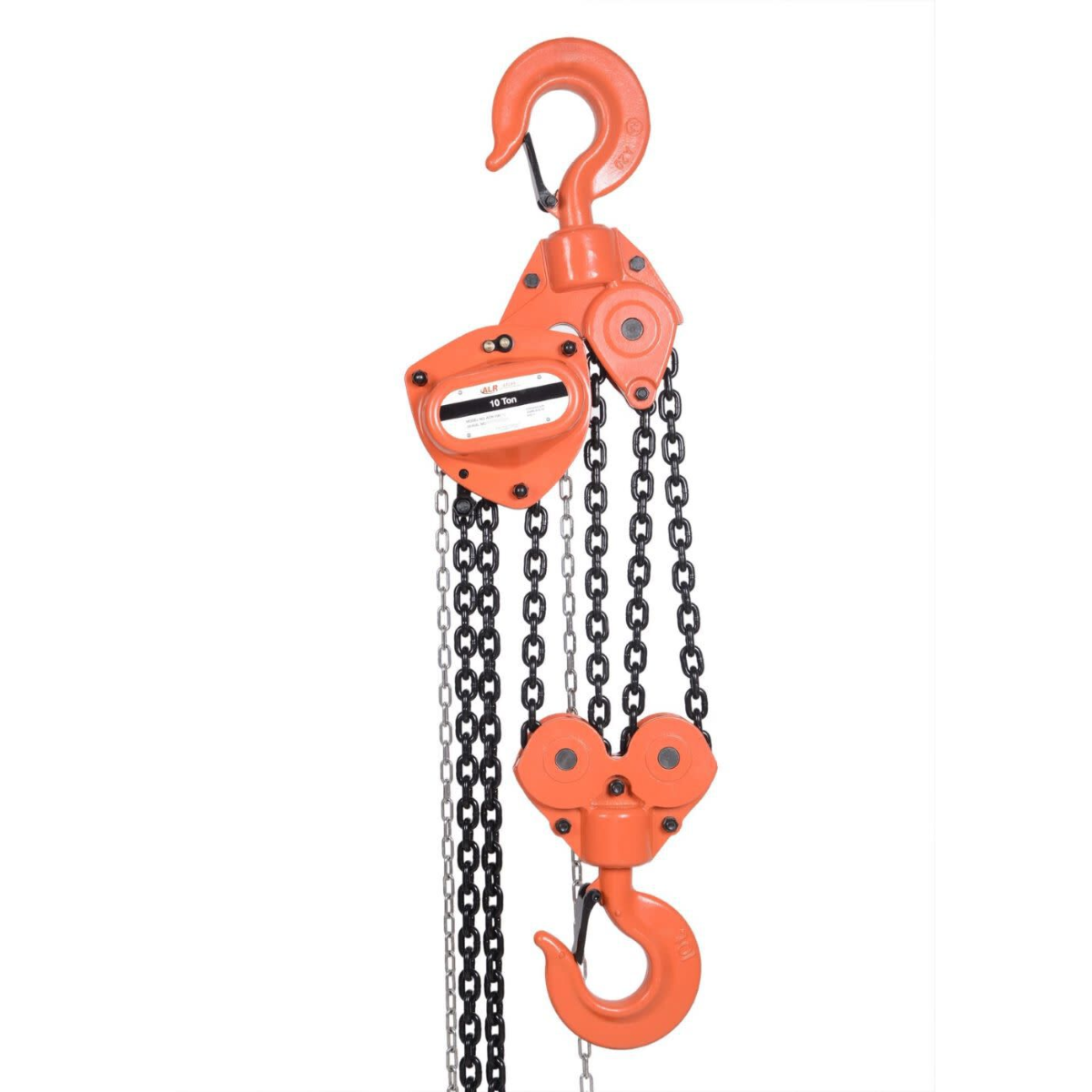

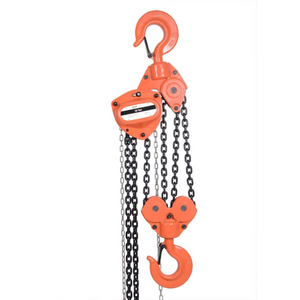

Atlas Lifting and Rigging ACH-100-30-OP Manual Chain Hoist with Overload Protection
The ACH-100-30-OP is a high-capacity manual chain hoist designed for long-reach, heavy-duty lifting with built-in safety features. Rated for 10 tons (20,000 lbs) and equipped with a 30-foot lift height, it is the ideal solution for elevated lifting scenarios or deep-access environments where precision, power, and protection are essential.
Designed with a mechanical overload protection system, this model automatically disengages the lifting mechanism when loads exceed the rated capacity—safeguarding the hoist, operator, and surrounding equipment. Combined with an industrial-grade steel frame, Weston-style brake, and high-strength Grade 80 alloy chain, this hoist is built for the most challenging conditions and the most demanding loads.
Key Features:
- 10-Ton Capacity with Overload Protection: A built-in slip clutch prevents overloading, enhancing safety and extending equipment longevity.
- 30-Foot Lift Height: Ideal for high-clearance operations, deep pits, or multi-level installations.
- Rugged Steel Construction: Resists impacts, corrosion, and wear in harsh industrial environments.

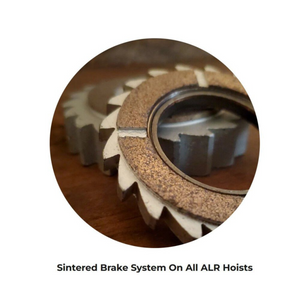

- Weston-Style Mechanical Load Brake: Automatically holds the load securely during lifting and lowering.
- Grade 80 Alloy Load Chain: High-strength, wear-resistant chain for dependable performance.

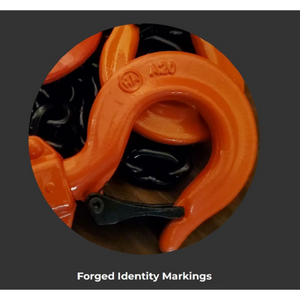

- Forged Swivel Hooks with Safety Latches: Provide secure connections with full rotation capability.
- Sealed Brake and Gear Housing: Protects internal components from dust, debris, and moisture.
Specifications:

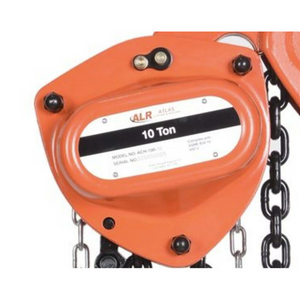

- Model: ACH-100-30-OP
- Capacity: 10 Ton (20,000 lbs / 9,072 kg)
- Lift Height: 30 ft (9 m)
- Overload Protection: Integrated mechanical slip clutch
- Load Chain: Grade 80 alloy steel, black oxide finish
- Hand Chain: Zinc-plated steel
- Brake Type: Weston-style mechanical load brake
- Hook Type: Forged steel swivel hooks with safety latches
- Headroom: Approx. 30–34 inches
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 395–415 lbs
The Atlas ACH-100-30-OP is purpose-built for maximum lifting safety and reach—ideal for critical lifts where every foot and every pound matters.
