Product Overview

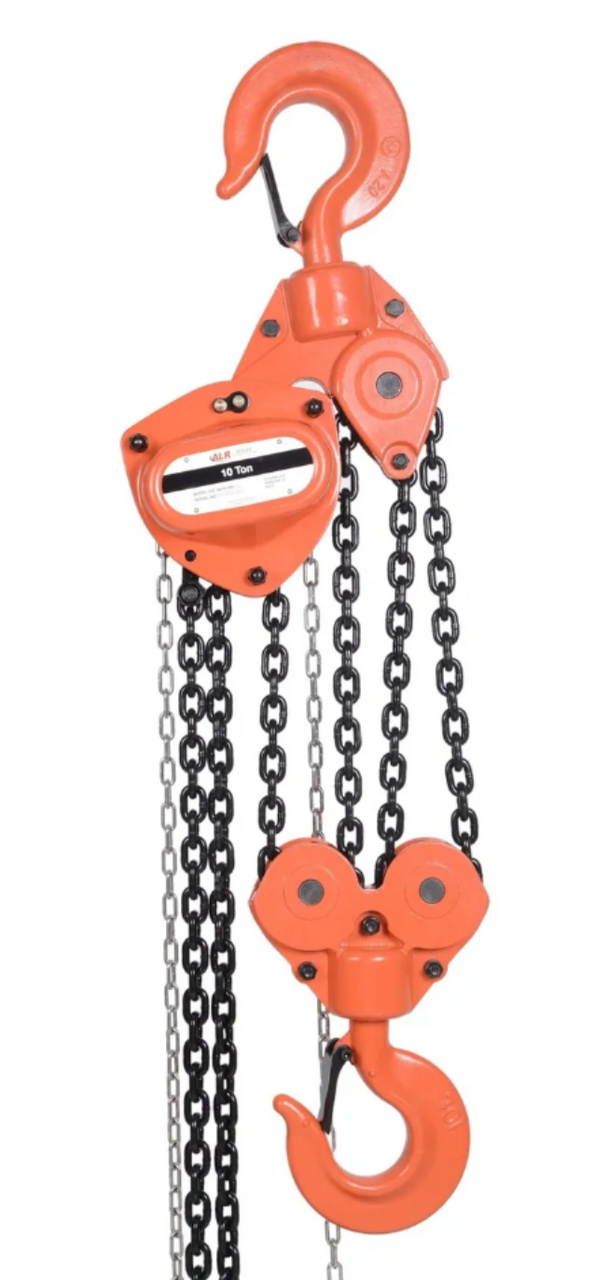

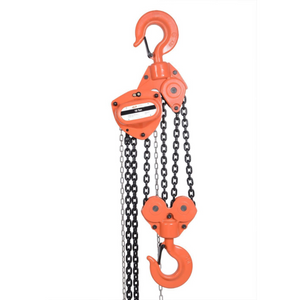

Atlas Lifting and Rigging ACH-100-20-OP Manual Chain Hoist with Overload Protection
The ACH-100-20-OP delivers powerful lifting performance with added protection for high-stakes applications. With a 10-ton (20,000 lbs) lifting capacity and an extended 20-foot lift height, this manual chain hoist is built for demanding industrial tasks. The integrated mechanical overload protection system automatically limits lifting if the load exceeds rated capacity—reducing risk and extending equipment life.
Crafted for resilience, this hoist features an all-steel housing, Grade 80 alloy steel load chain, sealed Weston-style mechanical brake, and forged swivel hooks for superior reliability and performance in the field. Whether being used in manufacturing, infrastructure, or rigging operations, this hoist provides the muscle and safety professionals need.
Key Features:
- 10-Ton Capacity with Overload Protection: A slip clutch mechanism prevents lifting beyond the rated capacity.
- 20-Foot Lift Height: Ideal for high-reach jobs in construction, utility, and industrial applications.
- Rugged Steel Construction: Designed for durability in harsh and demanding environments.

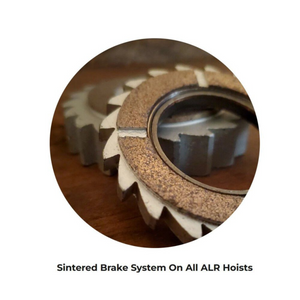

- Weston-Style Mechanical Load Brake: Automatically holds the load securely during use.
- Grade 80 Alloy Steel Load Chain: This high-strength, wear-resistant chain ensures a long service life.

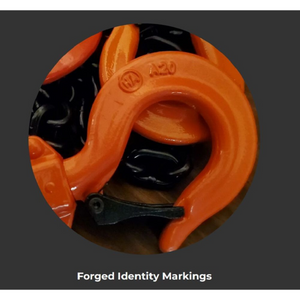

- Forged Swivel Hooks with Safety Latches: Full 360° rotation and positive load engagement.
- Sealed Gear and Brake Housing: Protects critical components from dirt, moisture, and contaminants.
Specifications:
- Model: ACH-100-20-OP
- Capacity: 10 Ton (20,000 lbs / 9,072 kg)
- Lift Height: 20 ft (6 m)
- Overload Protection: Integrated mechanical slip clutch
- Load Chain: Grade 80 alloy steel, black oxide finish
- Hand Chain: Zinc-plated steel
- Brake Type: Weston-style mechanical load brake
- Hook Type: Forged steel swivel hooks with safety latches
- Headroom: Approx. 30–34 inches
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 330–345 lbs
The Atlas ACH-100-20-OP provides industrial-grade lifting strength with built-in safety, making it the ideal choice for professionals who demand both performance and protection.
