Product Overview

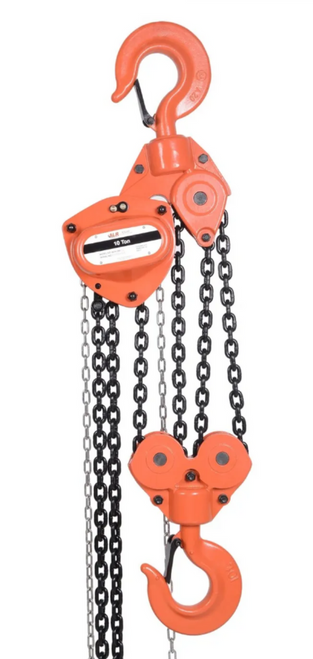

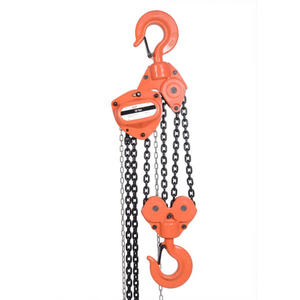

Atlas Lifting and Rigging ACH-100-10-OP Manual Chain Hoist with Overload Protection
Built for maximum lifting power and safety, the ACH-100-10-OP delivers a 10-ton (20,000 lbs) capacity with a standard 10-foot lift height and includes integrated mechanical overload protection. Engineered for large-scale industrial applications, this hoist combines brute strength with intelligent safety, ensuring dependable performance and load control.
The built-in overload clutch activates automatically if the load exceeds the rated capacity, protecting the hoist, the operator, and the rigging system from overstraining. With rugged construction, precision-machined gearing, and a Weston-style brake system, the ACH-100-10-OP is designed to handle critical lifting tasks with total confidence.
Key Features:
- 10-Ton Rated Capacity with Overload Protection: A mechanical clutch prevents lifting above the safe working load.
- 10-Foot Lift Height: Standard reach for demanding industrial lift scenarios.
- Durable All-Steel Housing: Reinforced for resistance to impact and extreme conditions.

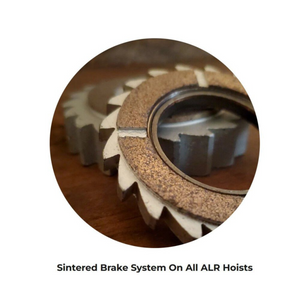

- Weston-Style Mechanical Load Brake: Ensures smooth, secure lifting and positive load control.
- Grade 80 Alloy Load Chain: Engineered for strength, corrosion resistance, and long wear life.

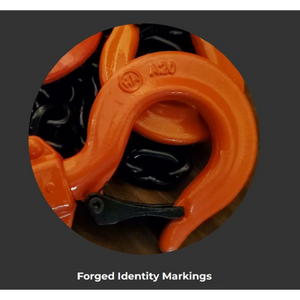

- Forged Swivel Hooks with Safety Latches: Secure attachment with full 360° rotation.
- Sealed Gear and Brake Housing: Protects internal components from dirt, dust, and moisture.
Specifications:
- Model: ACH-100-10-OP
- Capacity: 10 Ton (20,000 lbs / 9,072 kg)
- Lift Height: 10 ft (3 m)
- Overload Protection: Integrated mechanical slip clutch
- Load Chain: Grade 80 alloy steel, black oxide finish
- Hand Chain: Zinc-plated steel
- Brake Type: Weston-style mechanical load brake
- Hook Type: Forged steel swivel hooks with safety latches
- Headroom: Approx. 30–34 inches
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 245–265 lbs
The Atlas ACH-100-10-OP is a high-capacity hoist designed for precision, durability, and job site safety. It is ideal for lifting the heaviest of loads, where performance and protection are non-negotiable.
