Product Overview

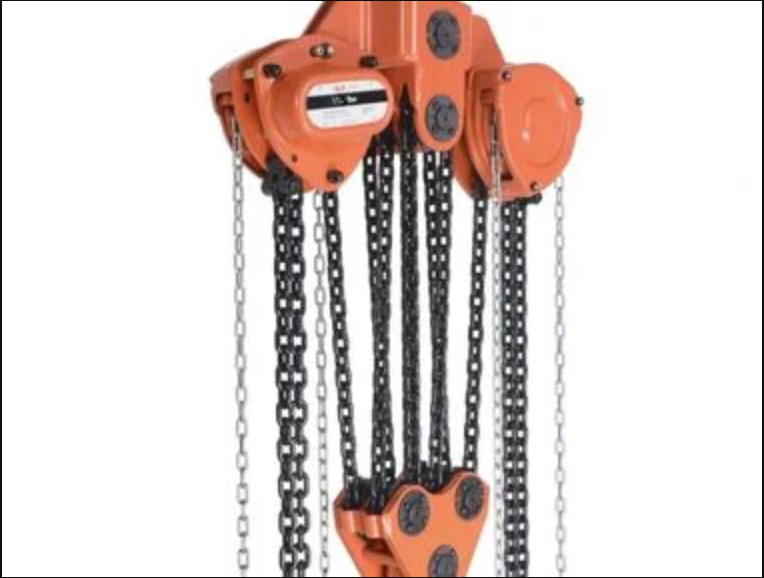

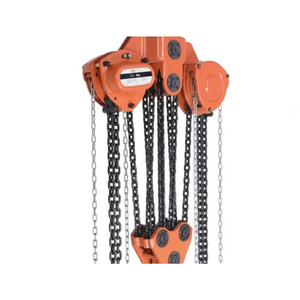

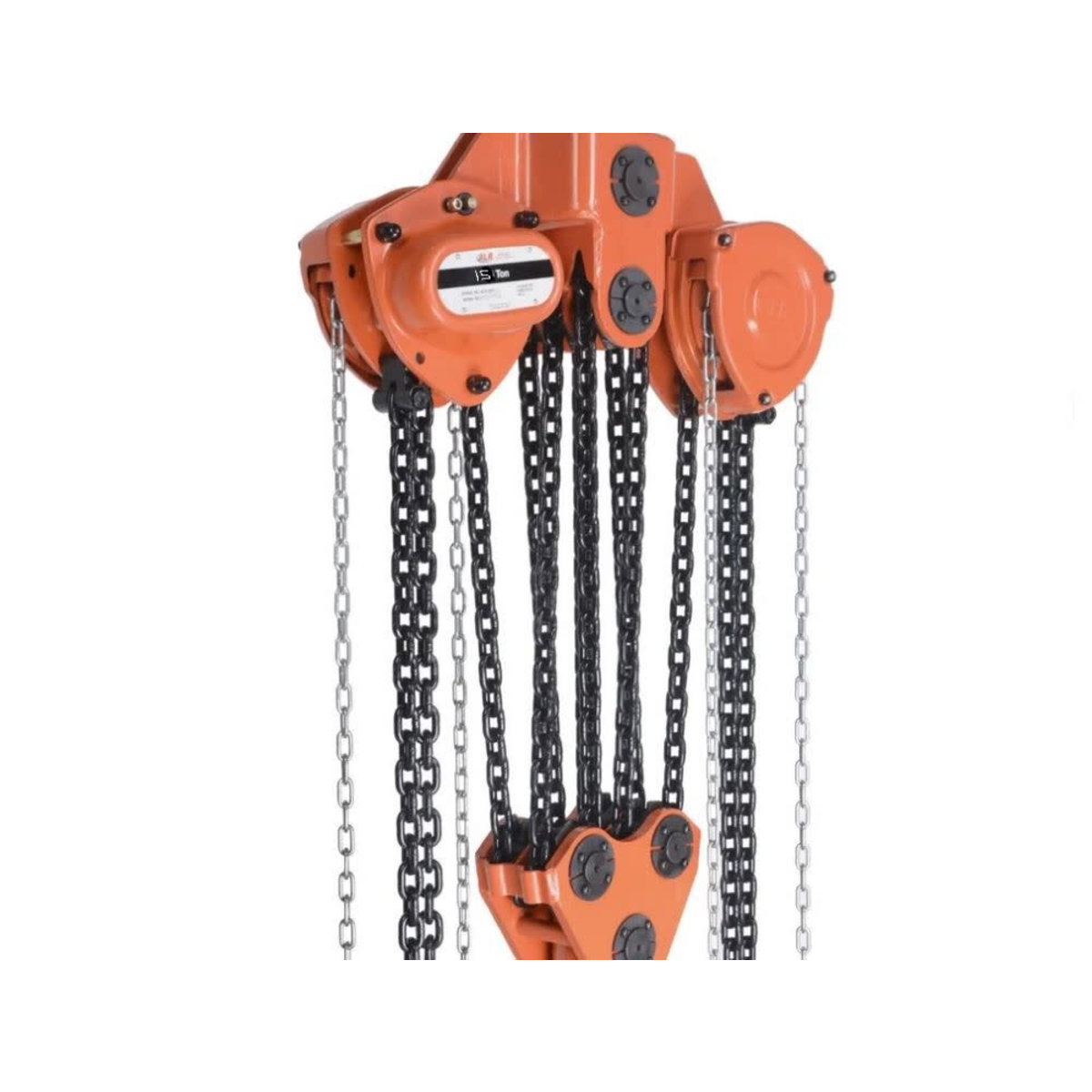

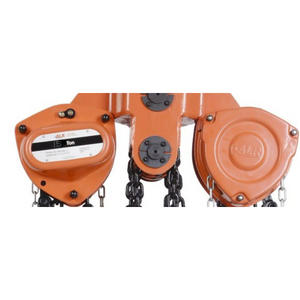

Atlas Lifting and Rigging ACH-150-10 Manual Chain Hoist
Built for serious industrial strength, the ACH-150-10 from Atlas Lifting and Rigging is a high-capacity manual chain hoist rated for 15 tons (30,000 lbs). With a standard 10-foot lift height, this hoist is the perfect solution for tough jobs that demand superior lifting power in a compact form.
Designed with a robust steel frame, a Weston-style mechanical brake, and a heavy-duty Grade 80 alloy steel load chain, the ACH-150-10 offers unmatched durability, control, and reliability. Forged swivel hooks with safety latches provide secure and flexible rigging, while the hoist’s smooth manual operation allows for precise load handling even under maximum capacity.
Key Features:
- 15-Ton Rated Capacity: Lifts hefty loads with confidence and control.
- 10-Foot Lift Height: Standard reach suitable for most ground-level and elevated lifts.
- Industrial-Grade Steel Housing: Withstands demanding environments and frequent use.
- Weston-Style Mechanical Brake: Provides secure and automatic load holding during lifting and lowering.
- Grade 80 Alloy Load Chain: Engineered for strength, wear resistance, and corrosion protection.
- Forged Swivel Hooks with Safety Latches: Allow for secure attachment and smooth rotation under load.
- Low-Effort Chain Operation: Designed for ease of use, even at full capacity.
Specifications:
- Model: ACH-150-10
- Capacity: 15 Ton (30,000 lbs / 13,608 kg)
- Lift Height: 10 ft (3 m)
- Load Chain: Grade 80 alloy steel, black oxide finish
- Hand Chain: Zinc-plated steel
- Brake Type: Weston-style mechanical load brake
- Hook Type: Forged steel swivel hooks with safety latches
- Headroom: Approx. 32–36 inches
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 410–430 lbs
The Atlas ACH-150-10 is the go-to manual hoist when you need serious lifting capacity in a reliable, efficient package for industrial or heavy construction use.
