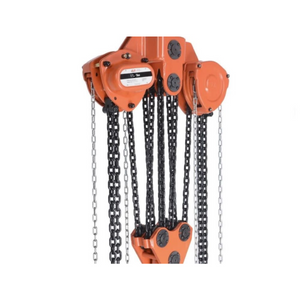

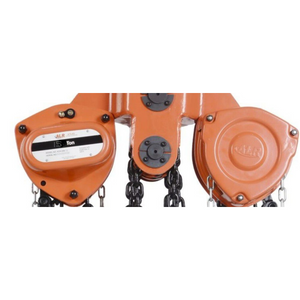

Atlas Lifting and Rigging ACH 15 Ton Chain Hoist 33000 lbs 20 Ft. Lift

Write a Review
$5,174.99
SKU: ACH-150-20
Availability: In stock
Weight: 366.00 LBS
Shipping: Calculated at Checkout
Adding to cart… The item has been added

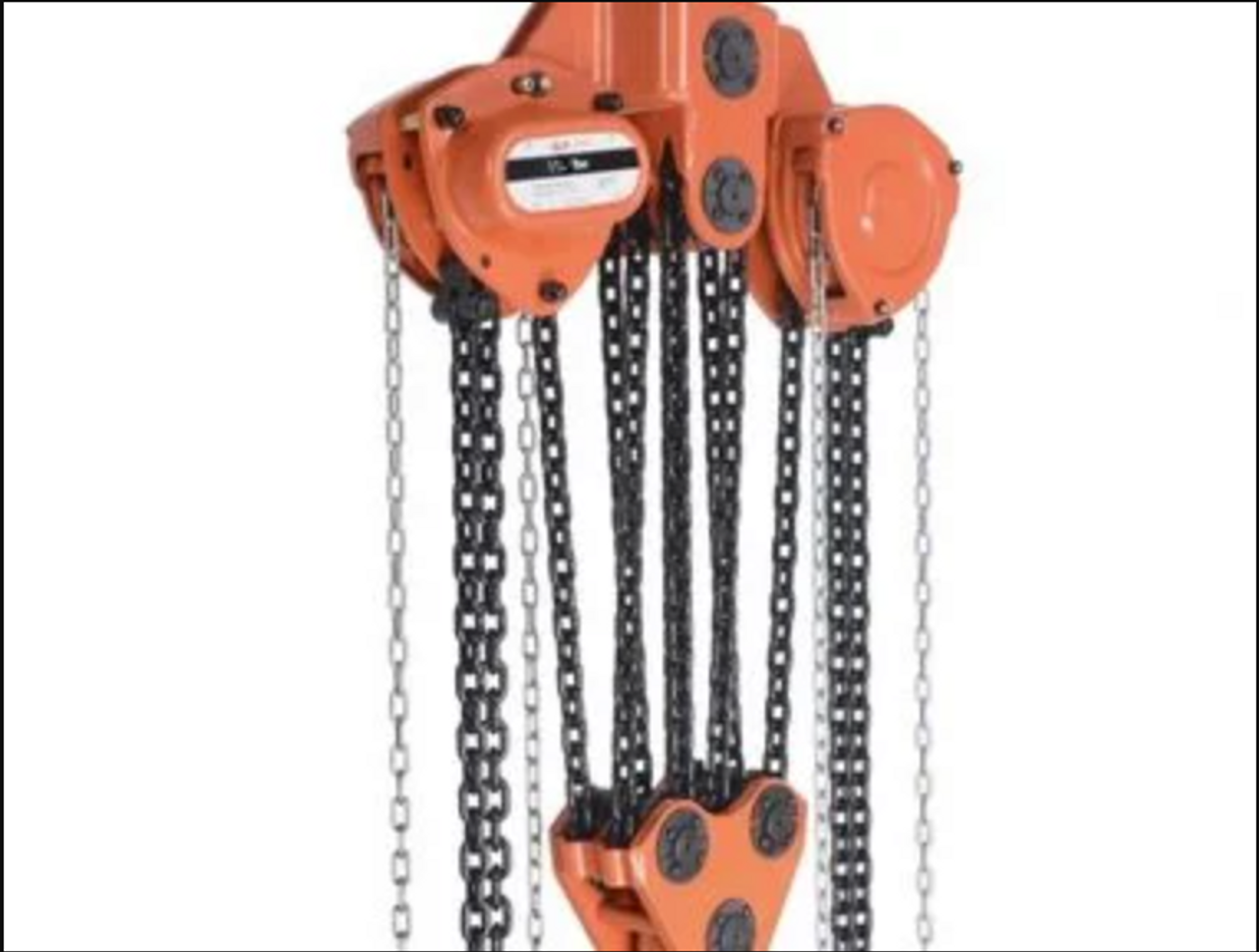

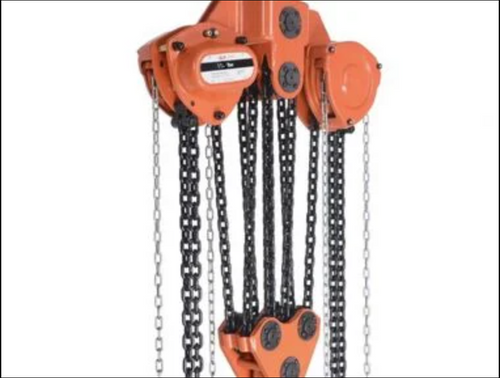

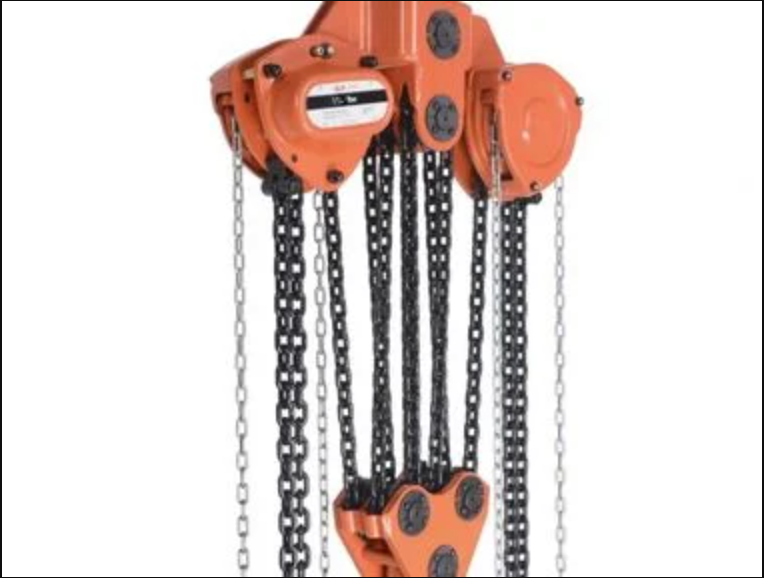

Atlas Lifting and Rigging ACH-150-20 Manual Chain Hoist

The ACH-150-20 manual chain hoist combines heavy lifting power with extended vertical reach, rated to lift to 15 tons (30,000 lbs) with a generous 20-foot lift height. This hoist is designed for rigorous industrial and construction applications where reliability and strength are paramount.

Featuring a robust steel housing, Weston-style mechanical load brake, and premium Grade 80 alloy steel load chain, the ACH-150-20 provides smooth operation and dependable load control. Forged swivel hooks with safety latches offer secure attachment and 360° rotation to accommodate diverse rigging configurations.

Key Features:

  • 15-Ton Capacity: Capable of handling substantial heavy-duty lifting tasks.
  • 20-Foot Lift Height: Extended reach ideal for high-clearance or deep-lift requirements.
  • Durable Steel Construction: Engineered to withstand demanding environments.
  • Weston-Style Mechanical Load Brake: Ensures safe and reliable load holding.
  • Grade 80 Alloy Steel Load Chain: Strong, wear-resistant, and corrosion-protected.
  • Forged Swivel Hooks with Safety Latches: Facilitate flexible and secure rigging.
  • Smooth Manual Chain Operation: Designed for ease of use under heavy load.

Specifications:

  • Model: ACH-150-20
  • Capacity: 15 Ton (30,000 lbs / 13,608 kg)
  • Lift Height: 20 ft (6 m)
  • Load Chain: Grade 80 alloy steel, black oxide finish
  • Hand Chain: Zinc-plated steel
  • Brake Type: Weston-style mechanical load brake
  • Hook Type: Forged steel swivel hooks with safety latches
  • Headroom: Approx. 32–36 inches
  • Operating Temperature: -40°F to 140°F (-40°C to 60°C)
  • Net Weight: Approx. 450–470 lbs

The Atlas ACH-150-20 provides dependable heavy lifting with the extended reach required for complex industrial tasks.
