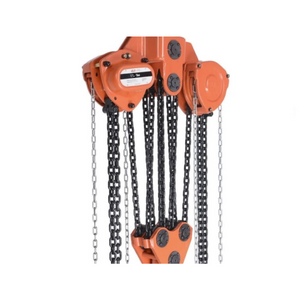

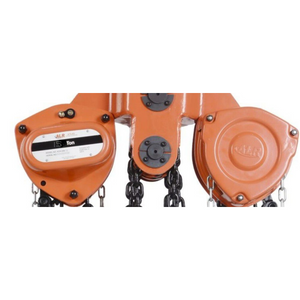

Atlas Lifting and Rigging ACH 15 Ton Chain Hoist 33000 lbs 15 Ft. Lift

Atlas Lifting and Rigging ACH-150-15 Manual Chain Hoist

The ACH-150-15 manual chain hoist combines heavy-duty lifting power with extended reach, rated to safely lift loads up to 15 tons (30,000 lbs) with a 15-foot lift height. This model is designed for harsh industrial environments where strength, reliability, and operator control are critical.

Constructed with a durable steel frame, high-strength Grade 80 alloy steel chain, and a Weston-style mechanical load brake, this hoist offers smooth operation and secure load handling. Forged swivel hooks with safety latches ensure flexible rigging and safe load attachment for demanding lifting applications.

Key Features:

• 15-Ton Rated Capacity: Designed for heavy industrial lifting tasks.
• 15-Foot Lift Height: Provides additional vertical reach for elevated or deep-lift requirements.
• Robust Steel Construction: Built to withstand rigorous use in harsh conditions.
• Weston-Style Mechanical Load Brake: Automatically holds and controls the load securely.
• Grade 80 Alloy Load Chain: Durable, wear-resistant, and corrosion-protected.
• Forged Swivel Hooks with Safety Latches: Enable full rotation and secure rigging.
• Smooth Manual Chain Operation: Designed for ease of use, even at full load.

Specifications:

• Model: ACH-150-15
• Capacity: 15 Ton (30,000 lbs / 13,608 kg)
• Lift Height: 15 ft (4.5 m)
• Load Chain: Grade 80 alloy steel, black oxide finish
• Hand Chain: Zinc-plated steel
• Brake Type: Weston-style mechanical load brake
• Hook Type: Forged steel swivel hooks with safety latches
• Headroom: Approx. 32–36 inches
• Operating Temperature: -40°F to 140°F (-40°C to 60°C)
• Net Weight: Approx. 430–450 lbs

The Atlas ACH-150-15 is engineered to handle heavy loads with extended lift capability, making it a reliable choice for demanding lifting operations.
