Product Overview

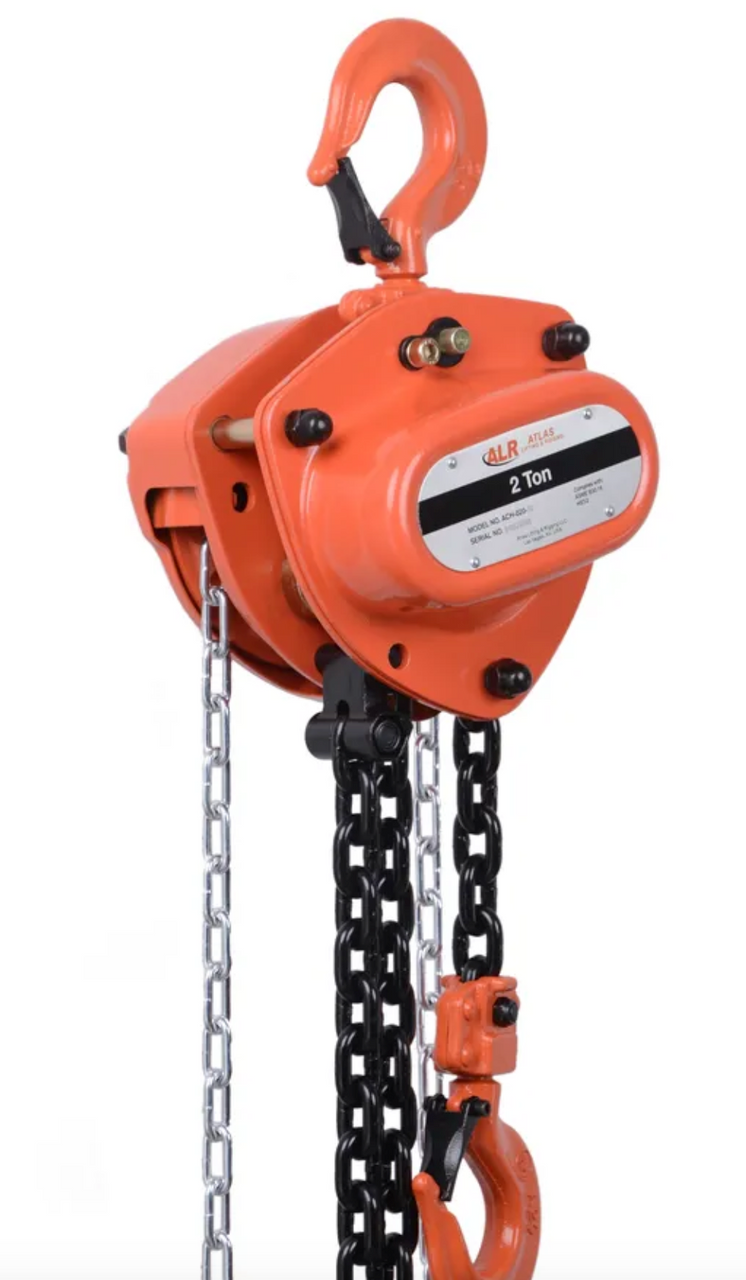

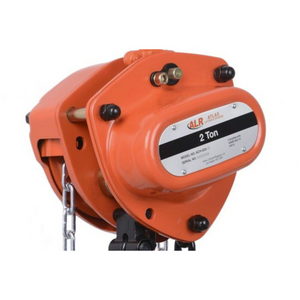

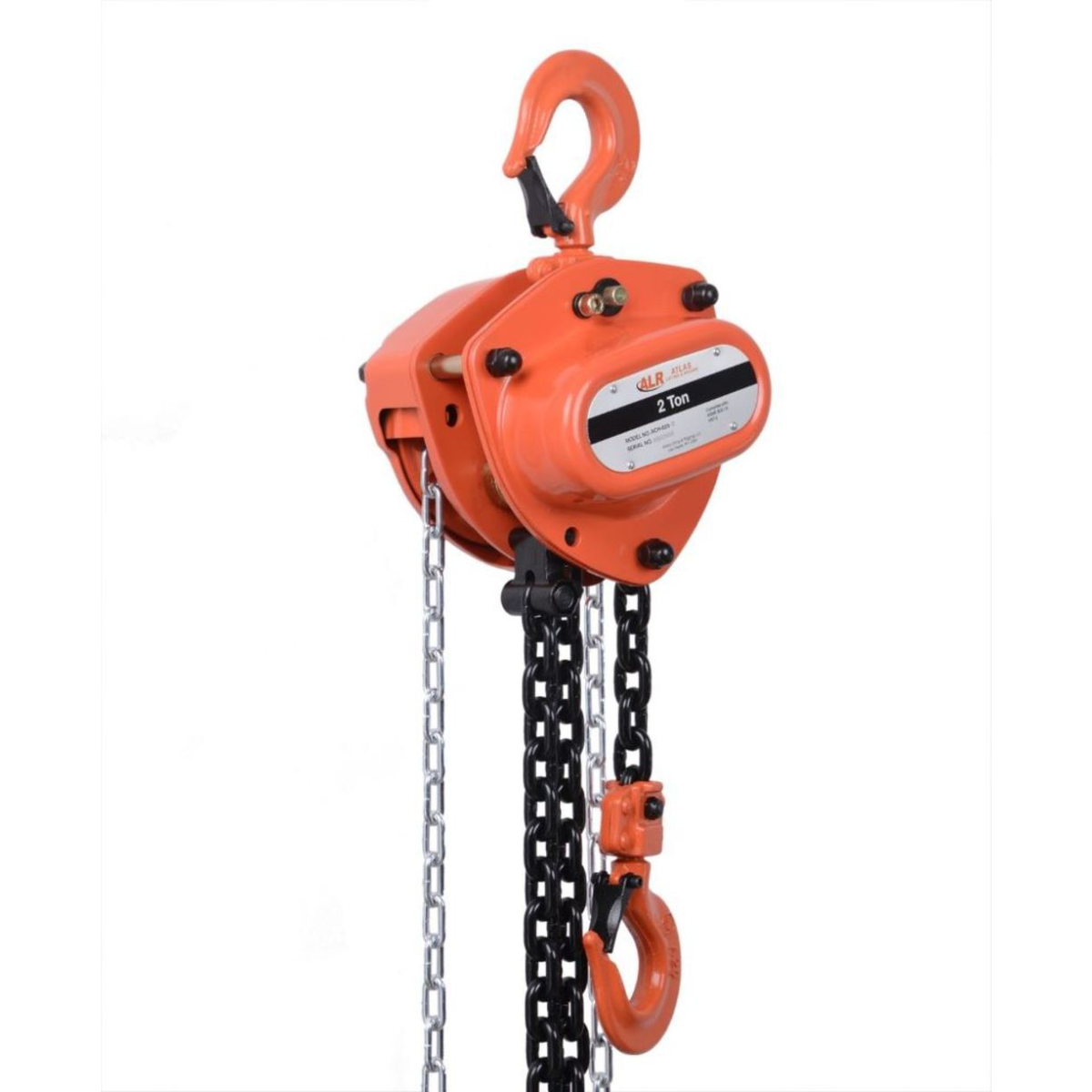

Atlas Lifting and Rigging ACH-020-20-OP Manual Chain Hoist with Overload Protection
The ACH-020-20-OP from Atlas Lifting and Rigging is built to handle extended lifting tasks with added safety and control. Featuring a 2-ton (4,000 lbs) load capacity, a 20-foot lift height, and an integrated mechanical overload protection system, this hoist is ideal for jobs that demand vertical reach and reliable safety safeguards.
The internal overload protection automatically disengages the lifting mechanism if the load exceeds the rated capacity, protecting both the user and the equipment from excessive stress. Combined with a rugged steel housing, high-grade load chain, and smooth-operating mechanical brake, this hoist is ready for long, repeated use in industrial settings.
Key Features:
- 2-Ton Capacity with Overload Protection: Prevents lifting above the rated limit, enhancing job site safety.
- 20-Foot Lift Height: Extended reach for elevated or below-grade lifting applications.
- Durable Steel Construction: Impact-resistant frame withstands heavy use in harsh environments.
- Weston-Style Load Brake: Offers consistent control and dependable load holding.
- Ergonomic Hand Chain Pull: Smooth, low-effort operation during long lifts.
- Swivel Hooks with Safety Latches: Enable secure connections and reduce chain twists.
- Enclosed Gearing: Sealed internals reduce wear and minimize required maintenance.
Specifications:
- Model: ACH-020-20-OP
- Capacity: 2 Ton (4,000 lbs / 1,814 kg)
- Lift Height: 20 ft (6 m)
- Overload Protection: Integrated mechanical slip clutch
- Load Chain: Grade 80 alloy steel, black oxide finish
- Hand Chain: Zinc-plated steel
- Brake Type: Weston-style mechanical load brake
- Hook Type: Forged steel swivel hooks with safety latches
- Headroom: Approx. 15–17 inches
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 56–62 lbs
The Atlas ACH-020-20-OP is the ideal choice when you need maximum lift height with added peace of mind. Whether you're lifting from deep pits or hoisting above overhead beams, it delivers strength, control, and built-in safety in one dependable package.
