Product Overview

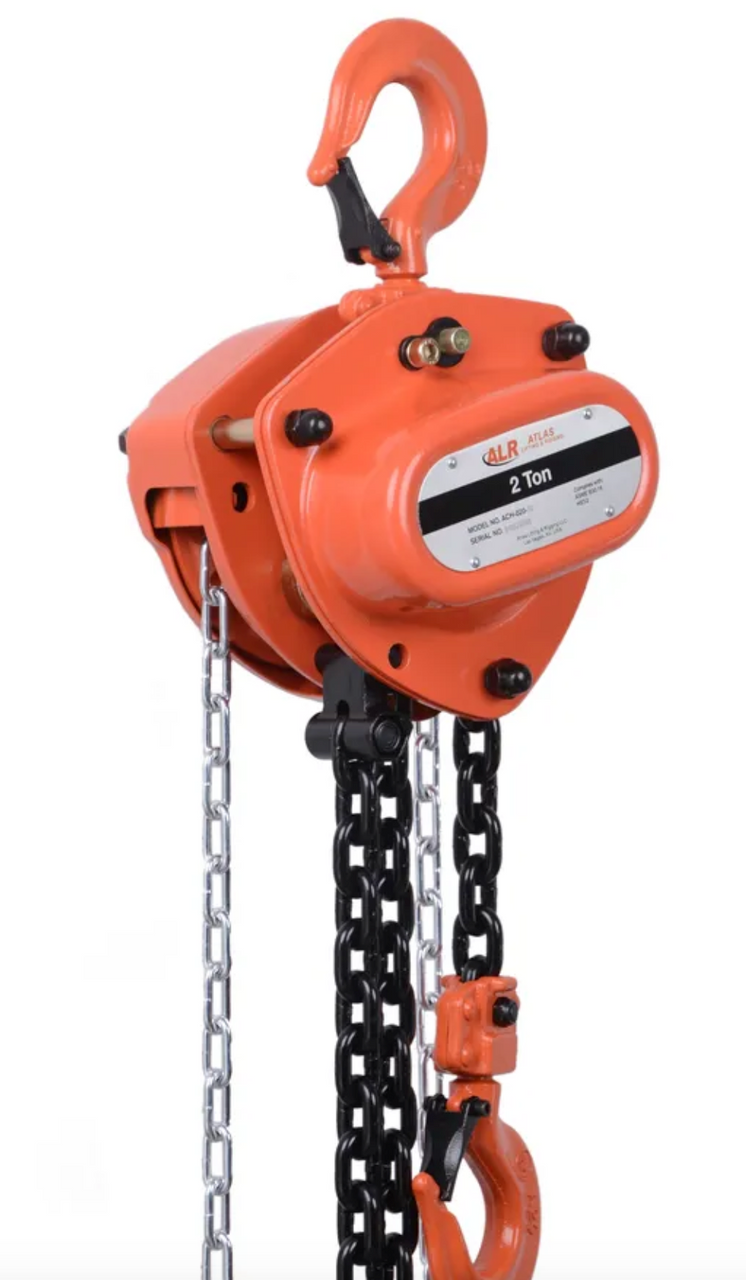

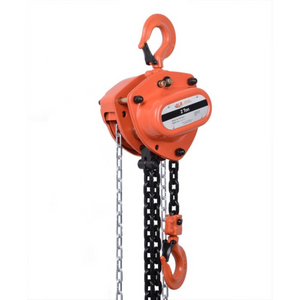

Atlas Lifting and Rigging ACH-020-10-OP Manual Chain Hoist with Overload Protection
The ACH-020-10-OP Manual Chain Hoist combines heavy-duty lifting performance with premimum safety features, making it ideal for rigorous industrial and construction applications. With a 2-ton (4,000 lbs) capacity and a 10-foot lift height, this hoist is equipped with an integrated overload protection system that disengages the lifting mechanism if the load exceeds its rated limit, reducing the risk of accidents and equipment damage.
Built with hardened steel construction, a high-performance Weston-style brake, and a Grade 80 alloy steel chain, the ACH-020-10-OP offers smooth, reliable lifting for demanding jobs where safety and durability matter most.
Key Features:
- 2-Ton Capacity with Overload Protection: Mechanical slip clutch prevents lifting beyond the rated limit, protecting both operator and hoist.
- 10-Foot Lift Height: Ideal for standard vertical lifting applications across various industries.
- Rugged Steel Housing: Provides long-term durability and resistance to harsh conditions.

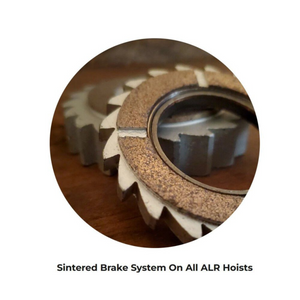

- Weston-Style Mechanical Brake: Ensures precise control and secure load holding.
- Smooth Hand Chain Operation: Ergonomic pull for easier, low-effort use.
- Swivel Hooks with Safety Latches: Enable secure and flexible rigging.
- Sealed Gear System: Protects internal components from debris, extending service life.
Specifications:
- Model: ACH-020-10-OP
- Capacity: 2 Ton (4,000 lbs / 1,814 kg)
- Lift Height: 10 ft (3 m)
- Overload Protection: Integrated mechanical slip clutch
- Load Chain: Grade 80 alloy steel, black oxide finish
- Hand Chain: Zinc-plated steel
- Brake Type: Weston-style mechanical load brake
- Hook Type: Forged steel swivel hooks with safety latches
- Headroom: Approx. 15–17 inches
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 40–45 lbs
The Atlas ACH-020-10-OP delivers high-performance lifting with the added assurance of built-in overload protection. It's a smart, reliable choice for professionals who prioritize safety without compromising power or durability.
