Product Overview

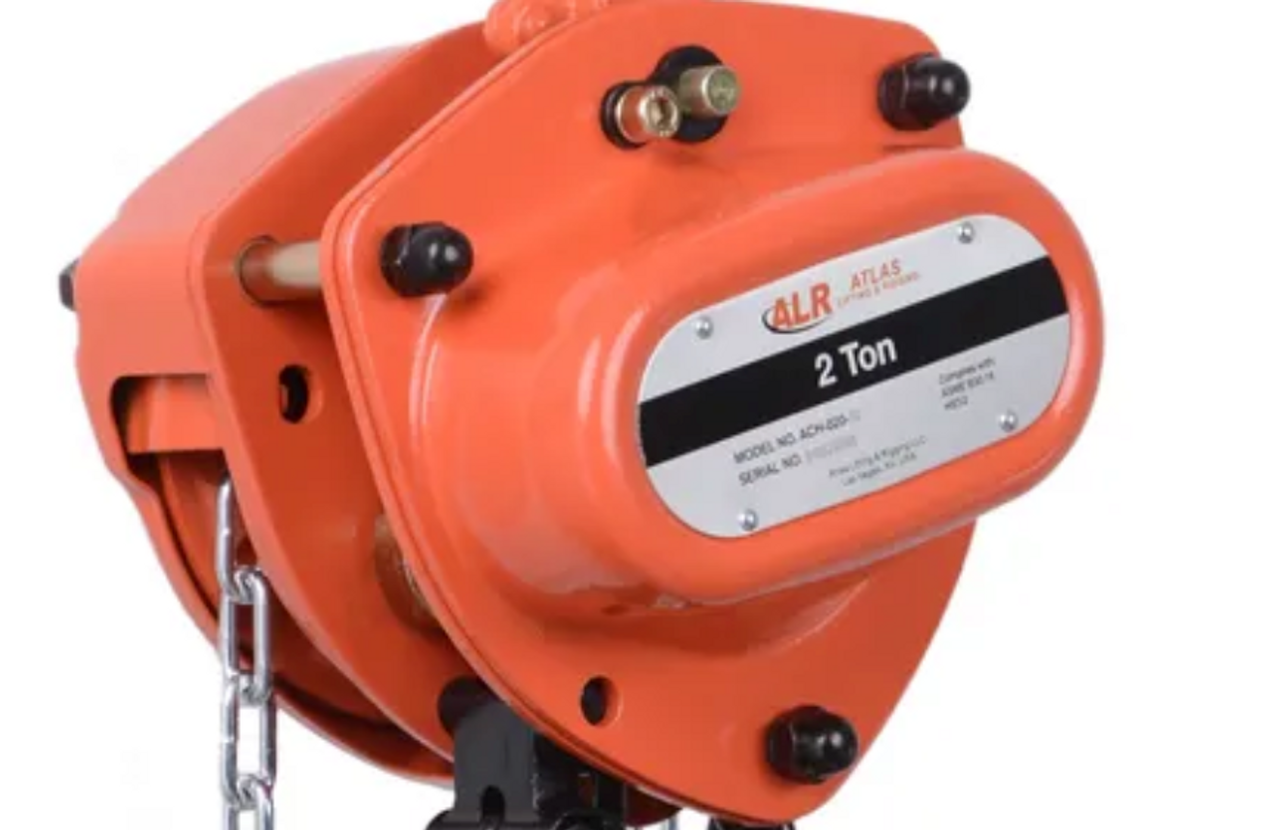

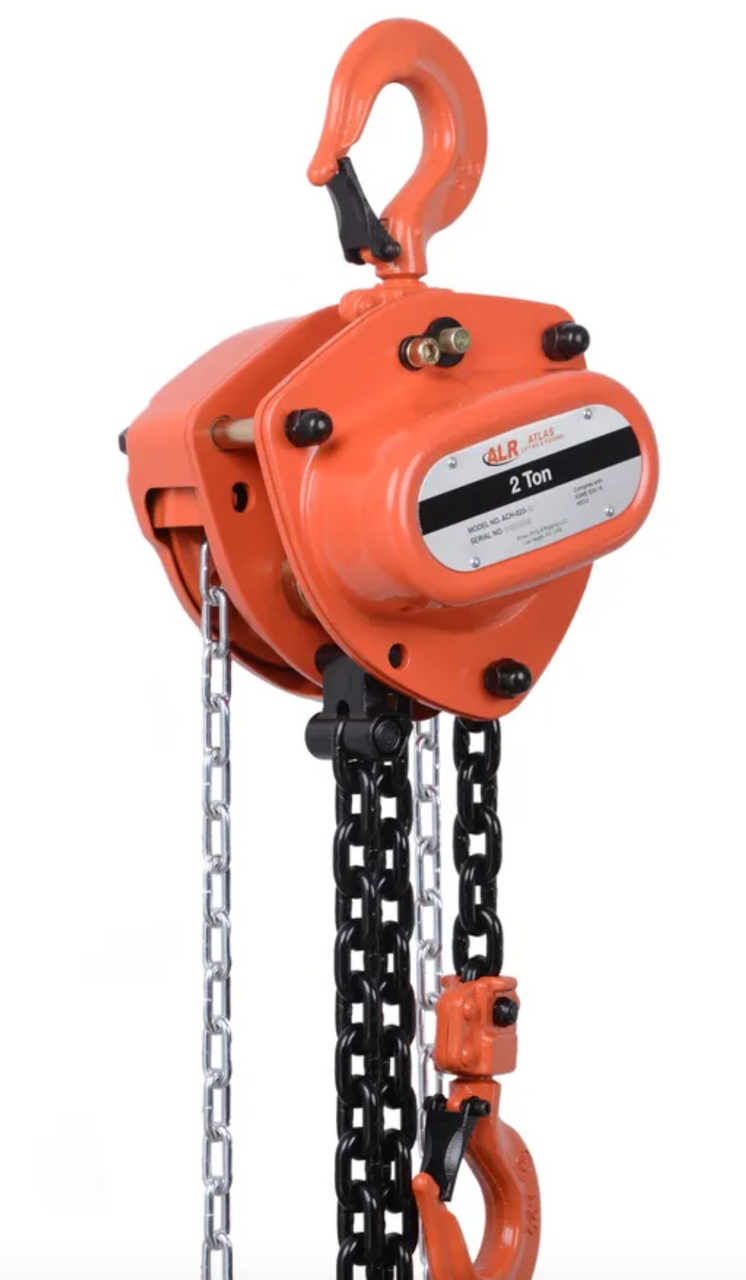

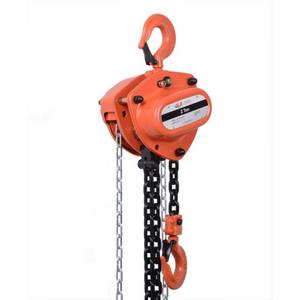

Atlas Lifting and Rigging ACH-020-15-OP Manual Chain Hoist with Overload Protection
Designed for demanding lift operations where safety and reach are essential, the ACH-020-15-OP Manual Chain Hoist offers a powerful 2-ton (4,000 lbs) capacity with an extended 15-foot lift height. Equipped with integrated overload protection, this model helps prevent overloading by disengaging the lifting mechanism when the rated capacity is exceeded, thereby enhancing safety and preventing costly damage.
Engineered with rugged steel construction, a Weston-style mechanical brake, and a high-grade alloy chain, this hoist gives you reliable performance in a wide range of industrial and construction environments. The ergonomic hand chain system ensures ease of use even during prolonged operation.
Key Features:
- 2-Ton Capacity with Overload Protection: Integrated mechanical slip clutch automatically prevents overloading.
- 15-Foot Lift Height: Ideal for tall structures, elevated rigging, or extended vertical lifts.
- Heavy-Duty Steel Housing: Built for long-term use in harsh environments.
- Weston-Style Load Brake: Provides smooth control and secure load holding.
- Ergonomic Hand Chain Pull: Allows for controlled lifting with reduced operator effort.
- Swivel Hooks with Safety Latches: Ensure secure and flexible attachment.
- Sealed Gearing and Enclosed Brake: Internal mechanisms are protected from dirt and debris.
Specifications:
- Model: ACH-020-15-OP
- Capacity: 2 Ton (4,000 lbs / 1,814 kg)
- Lift Height: 15 ft (4.5 m)
- Overload Protection: Integrated mechanical slip clutch
- Load Chain: Grade 80 alloy steel, black oxide finish
- Hand Chain: Zinc-plated steel
- Brake Type: Weston-style mechanical load brake
- Hook Type: Forged steel swivel hooks with safety latches
- Headroom: Approx. 15–17 inches
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 48–54 lbs
The Atlas ACH-020-15-OP is built to tackle taller lifts with confidence and control. Whether used in elevated rigging, mechanical installation, or steel erection, this hoist delivers safe, dependable performance with the added assurance of overload protection.
