Product Overview

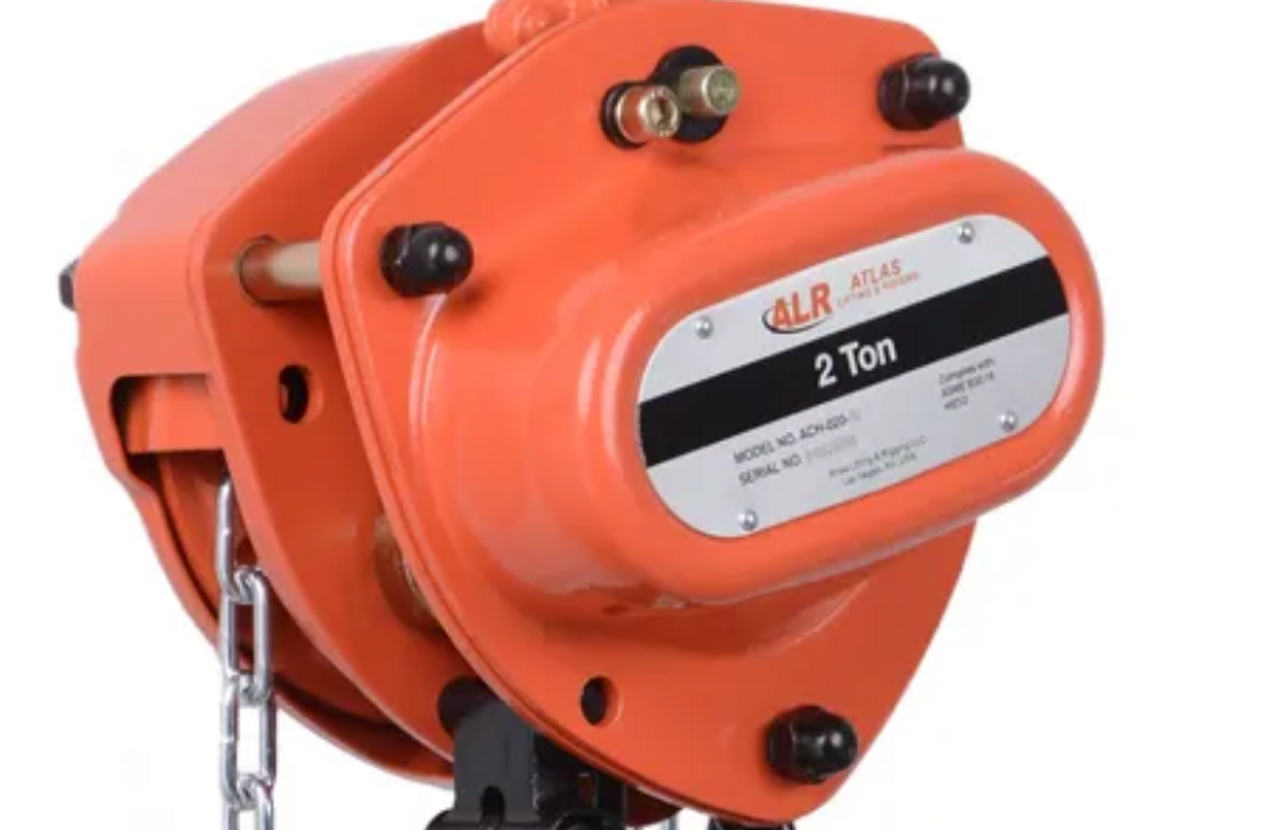

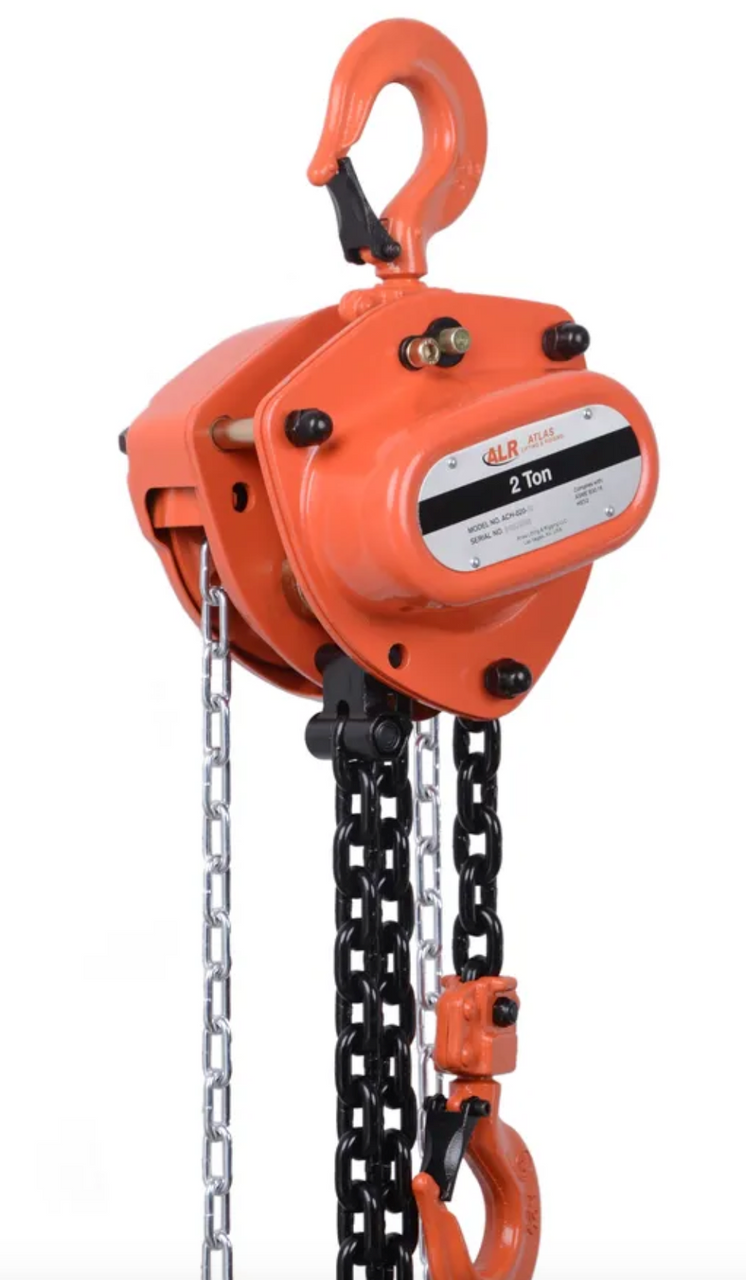

Atlas Lifting and Rigging ACH-020-30-OP Manual Chain Hoist with Overload Protection
The ACH-020-30-OP is designed for heavy-duty lifting applications that demand both extended reach and enhanced safety. Featuring a 2-ton (4,000 lbs) capacity, a 30-foot lift height, and built-in overload protection, this hoist prevents lifting beyond its rated capacity to safeguard operators and equipment.
With rugged steel construction, a Weston-style mechanical brake, and a Grade 80 alloy steel chain, this model combines durability, reliability, and safety. Its smooth hand-chain operation and secure swivel hooks with safety latches make it a dependable tool for industrial and construction sites that require long lifts.
Key Features:
- 2-Ton Capacity with Overload Protection: Mechanical slip clutch prevents overloading and associated hazards.
- 30-Foot Lift Height: Extended vertical reach for tall structures and deep lifts.
- Heavy-Duty Steel Housing: Engineered to withstand rough environments and heavy use.
- Weston-Style Mechanical Brake: Delivers smooth, secure load control.
- Ergonomic Hand Chain Pull: Facilitates ease of operation over extended lifts.
- Swivel Hooks with Safety Latches: Secure load attachment and prevent chain twisting.
- Sealed Internal Gearing: Protects components from dirt and debris to extend service life.
Specifications:
- Model: ACH-020-30-OP
- Capacity: 2 Ton (4,000 lbs / 1,814 kg)
- Lift Height: 30 ft (9 m)
- Overload Protection: Integrated mechanical slip clutch
- Load Chain: Grade 80 alloy steel, black oxide finish
- Hand Chain: Zinc-plated steel
- Brake Type: Weston-style mechanical load brake
- Hook Type: Forged steel swivel hooks with safety latches
- Headroom: Approx. 15–17 inches
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 70–77 lbs
The Atlas ACH-020-30-OP is the ultimate choice for professionals who require safe, powerful lifting with maximum vertical reach. It combines rugged performance with built-in overload protection, ensuring peace of mind on the job.
