Product Overview

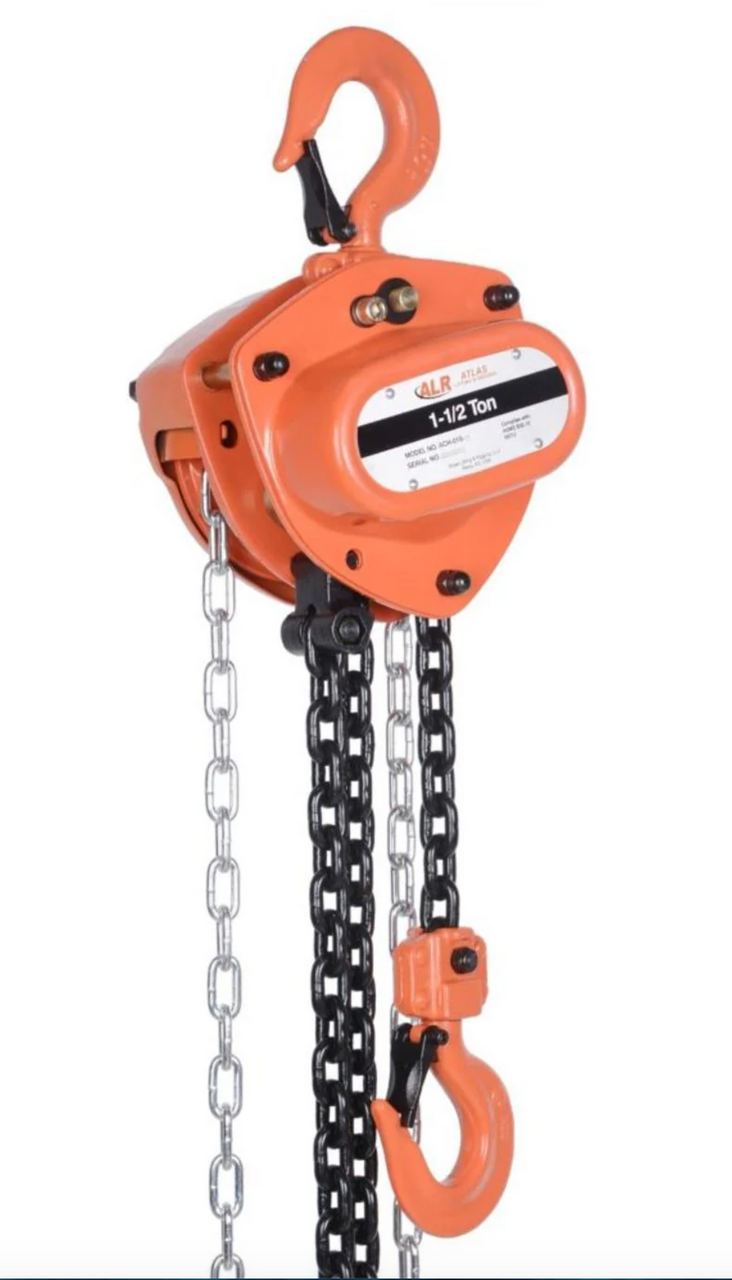

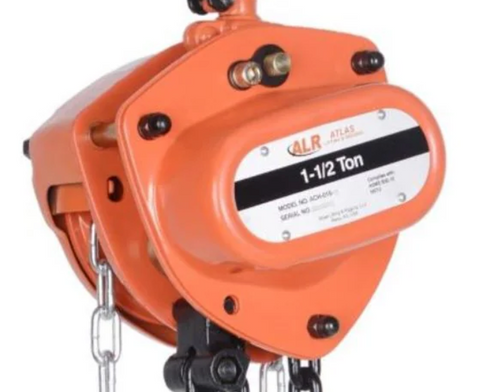

Atlas Lifting and Rigging ACH-015-30-OP Manual Chain Hoist with Overload Protection
The ACH-015-30-OP Manual Chain Hoist offers the extended reach of a 30-foot lift height combined with the added safety of integrated overload protection, Giving you the ideal solution for heavy-duty industrial applications where both range and safety are essential.
With a 1.5-ton (3,000 lbs) load rating, this hoist features a heavy-duty steel frame, precision-machined gears, and a reliable Weston-style mechanical brake system. Its overload protection mechanism is designed to disengage lifting when the rated capacity is exceeded, helping to safeguard operators and equipment from overexertion and mechanical failure.
Key Features:
- 1.5-Ton Capacity with Overload Protection: Slip clutch system prevents lifting beyond safe load limits.
- 30-Foot Lift Height: Ideal for overhead rigging, tall structures, and deep-lift operations.
- Durable Steel Housing: Built to perform in demanding industrial and construction environments.
- Weston-Style Mechanical Load Brake: Ensures smooth and secure lifting control.
- Ergonomic Hand Chain Pull: Reduces fatigue and enables precise load positioning.
- Swivel Hooks with Safety Latches: Allow safe, tangle-free load handling.
- Low Maintenance: Sealed and protected internal components extend service life.
Specifications:
- Model: ACH-015-30-OP
- Capacity: 1.5 Ton (3,000 lbs / 1,360 kg)
- Lift Height: 30 ft (9 m)
- Overload Protection: Integrated mechanical slip clutch
- Load Chain: Grade 80 alloy steel, black oxide finish
- Hand Chain: Zinc-plated steel
- Brake Type: Weston-style mechanical load brake
- Hook Type: Forged steel swivel hooks with safety latches
- Headroom: Approx. 13–16 inches
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 58–65 lbs
The Atlas ACH-015-30-OP is the professional’s choice when extended lift height and safety are non-negotiable. Perfect for lifting equipment, setting steel, or managing loads in elevated environments, it delivers power, control, and peace of mind on every lift.
