Product Overview

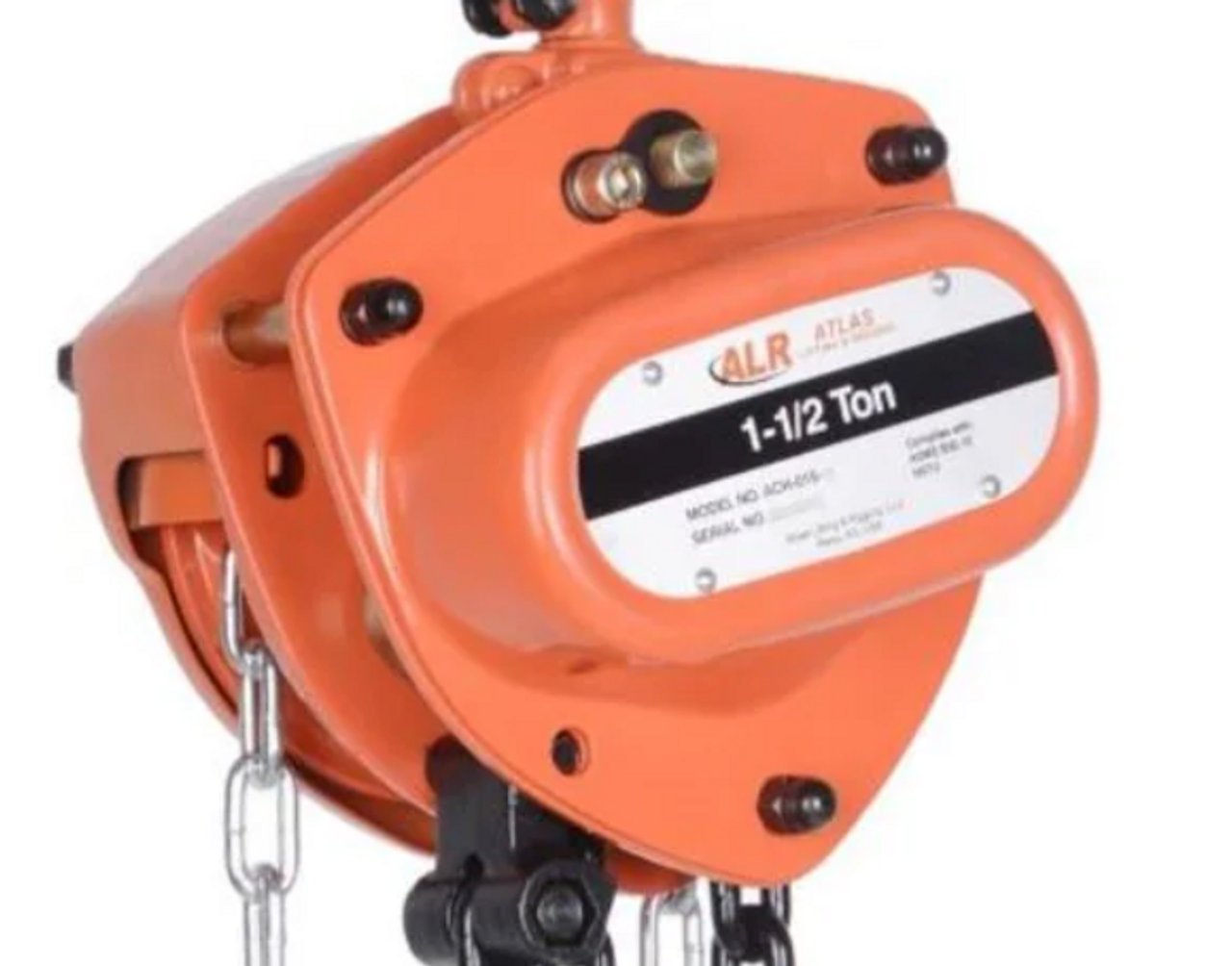

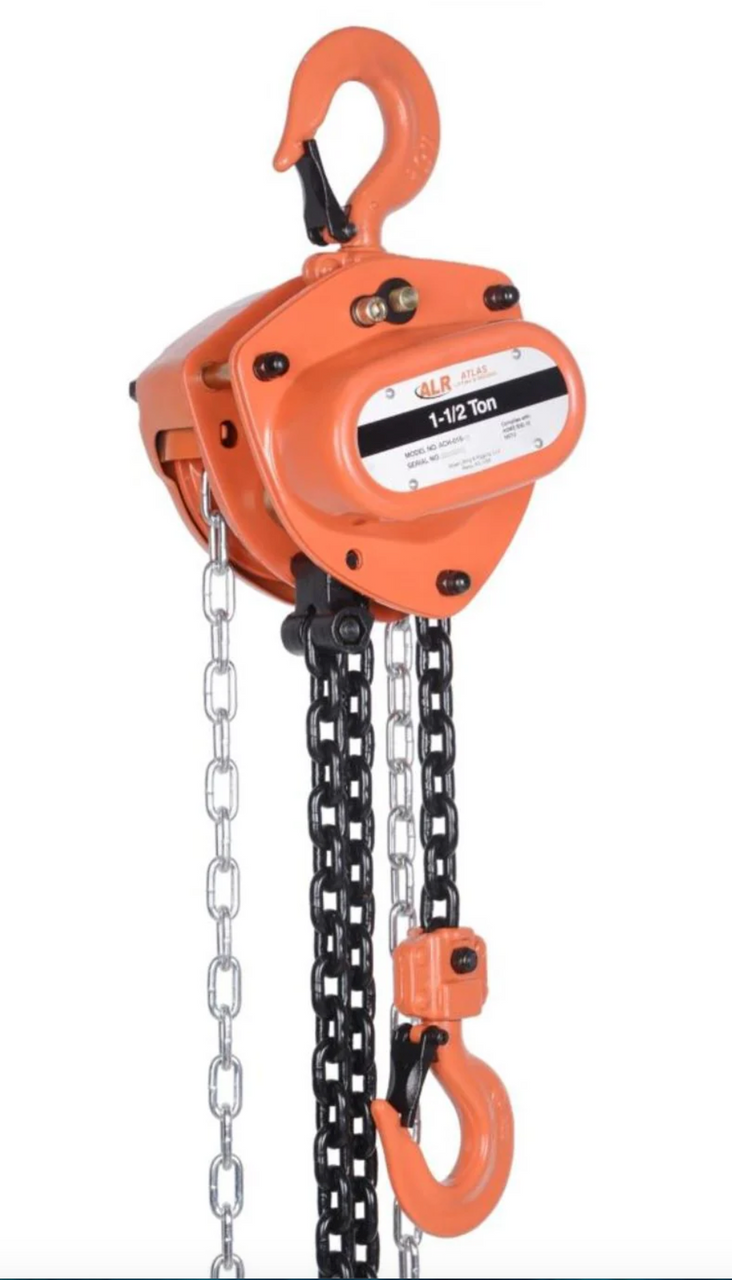

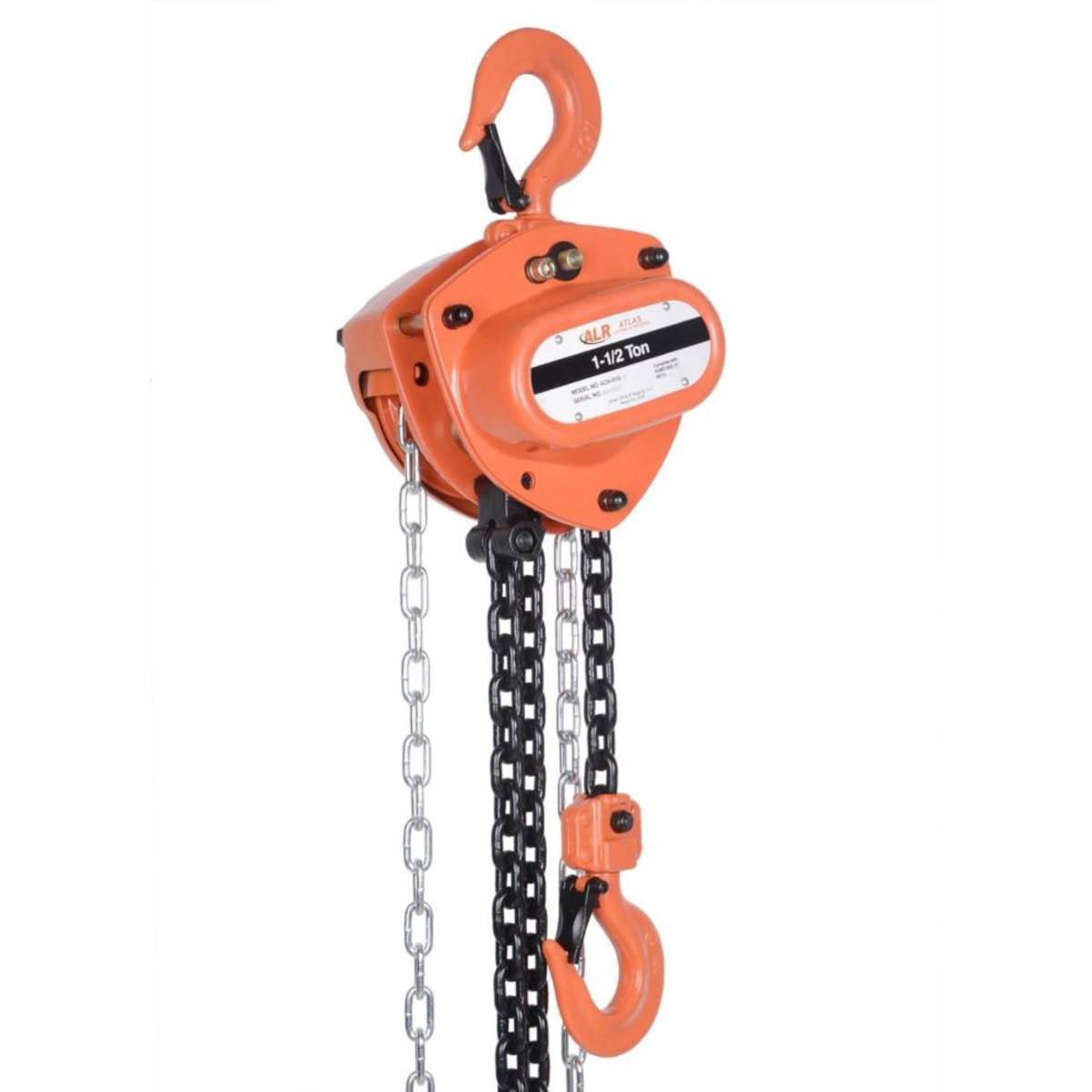

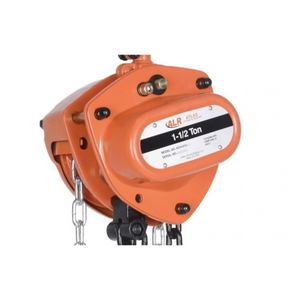

Atlas Lifting and Rigging ACH-015-15-OP Manual Chain Hoist with Overload Protection
The ACH-015-15-OP Manual Chain Hoist offers powerful lifting capability paired with advanced safety features. Rated for 1.5 tons (3,000 lbs) and featuring a 15-foot lift height, this hoist includes integrated overload protection to help prevent damage from lifting excessive loads.
This hoist is built with a rugged steel housing, grade 80 alloy steel chain, and equipped with a reliable Weston-style mechanical brake, the ACH-015-15-OP delivers smooth, controlled lifting with an emphasis on operator safety. The overload protection system disengages the hoist mechanism when the load exceeds the rated capacity, minimizing the risk of accidents and equipment damage.
Key Features:
- 1.5-Ton Capacity with Overload Protection: A slip clutch prevents lifting beyond the rated load for enhanced safety.
- 15-Foot Lift Height: Ideal for elevated lifting applications requiring extended reach.
- Heavy-Duty Steel Construction: Durable and impact-resistant housing built for industrial use.

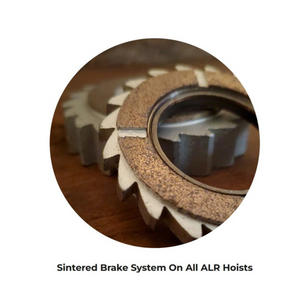

- Weston-Style Mechanical Load Brake: Ensures secure load holding at any lift position.
- Smooth Hand Chain Operation: The ergonomic design reduces operator fatigue and enables precise control.
- Swivel Hooks with Safety Latches: Provide flexible rigging and prevent chain twisting.
- Sealed Components: Protect internal parts from dust and debris, reducing maintenance needs.
Specifications:
- Model: ACH-015-15-OP
- Capacity: 1.5 Ton (3,000 lbs / 1,360 kg)
- Lift Height: 15 ft (4.5 m)
- Overload Protection: Integrated slip clutch system
- Load Chain: Grade 80 alloy steel, black oxide finish
- Hand Chain: Zinc-plated steel
- Brake Type: Weston-style mechanical load brake
- Hook Type: Forged steel swivel hooks with safety latches
- Headroom: Approx. 13–16 inches
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 38–42 lbs
The Atlas ACH-015-15-OP is the wise choice for professionals needing both strength and overload safety in a versatile manual chain hoist. Its extended lift and protective features make it ideal for demanding industrial and construction tasks.
