Product Overview

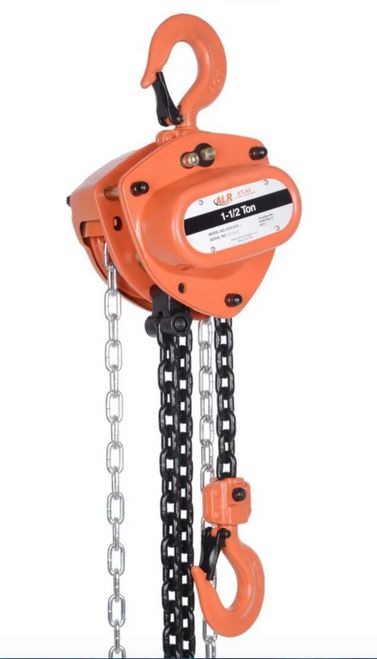

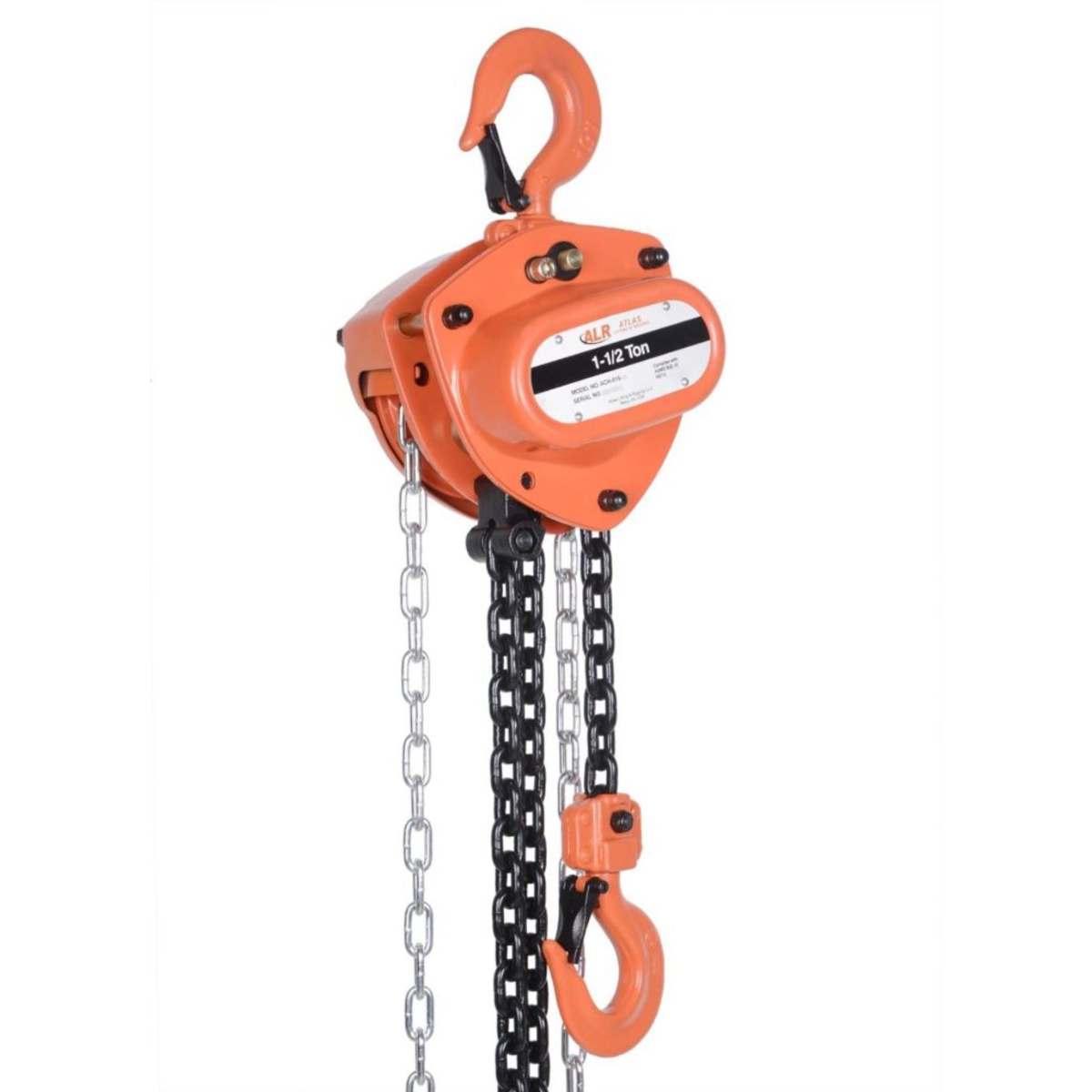

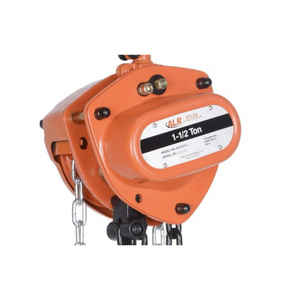

Atlas Lifting and Rigging ACH-015-10-OP Manual Chain Hoist with Overload Protection
The ACH-015-10-OP Manual Chain Hoist combines robust lifting capability with enhanced safety features for demanding industrial applications. Rated for 1.5 tons (3,000 lbs) and equipped with a 10-foot lift height, this hoist is engineered with an integrated overload protection system to prevent overloading and potential damage.
Built with heavy-duty steel housing and precision gearing, the ACH-015-10-OP delivers smooth, controlled lifting with minimal hand effort. Its Weston-style mechanical brake ensures positive load holding, while forged swivel hooks with safety latches provide secure and flexible rigging options.
Key Features:
- 1.5-Ton Capacity with Overload Protection: A slip clutch system protects against lifting beyond the rated load.
- 10-Foot Lift Height: Suitable for typical rigging and maintenance tasks.
- Heavy-Duty Steel Construction: Durable housing designed for industrial environments.
- Weston-Style Load Brake: Ensures reliable load holding at any lift position.
- Smooth Hand Chain Operation: Ergonomic design reduces operator fatigue.
- Swivel Hooks with Safety Latches: Prevent chain twisting and enhance safety.
- Maintenance-Friendly Design: Sealed components protect internal parts from contamination.
Specifications:
- Model: ACH-015-10-OP
- Capacity: 1.5 Ton (3,000 lbs / 1,360 kg)
- Lift Height: 10 ft (3 m)
- Overload Protection: Integrated slip clutch system
- Load Chain: Grade 80 alloy steel, black oxide finish
- Hand Chain: Zinc-plated steel
- Brake Type: Weston-style mechanical load brake
- Hook Type: Forged steel swivel hooks with safety latches
- Headroom: Approx. 13–16 inches
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 30–34 lbs
The Atlas ACH-015-10-OP is designed for professionals who demand both strength and safety in their lifting equipment. With overload protection and a compact form factor, it’s perfect for industrial maintenance, construction, and rigging applications where reliability and operator security are top priorities.
