Product Overview

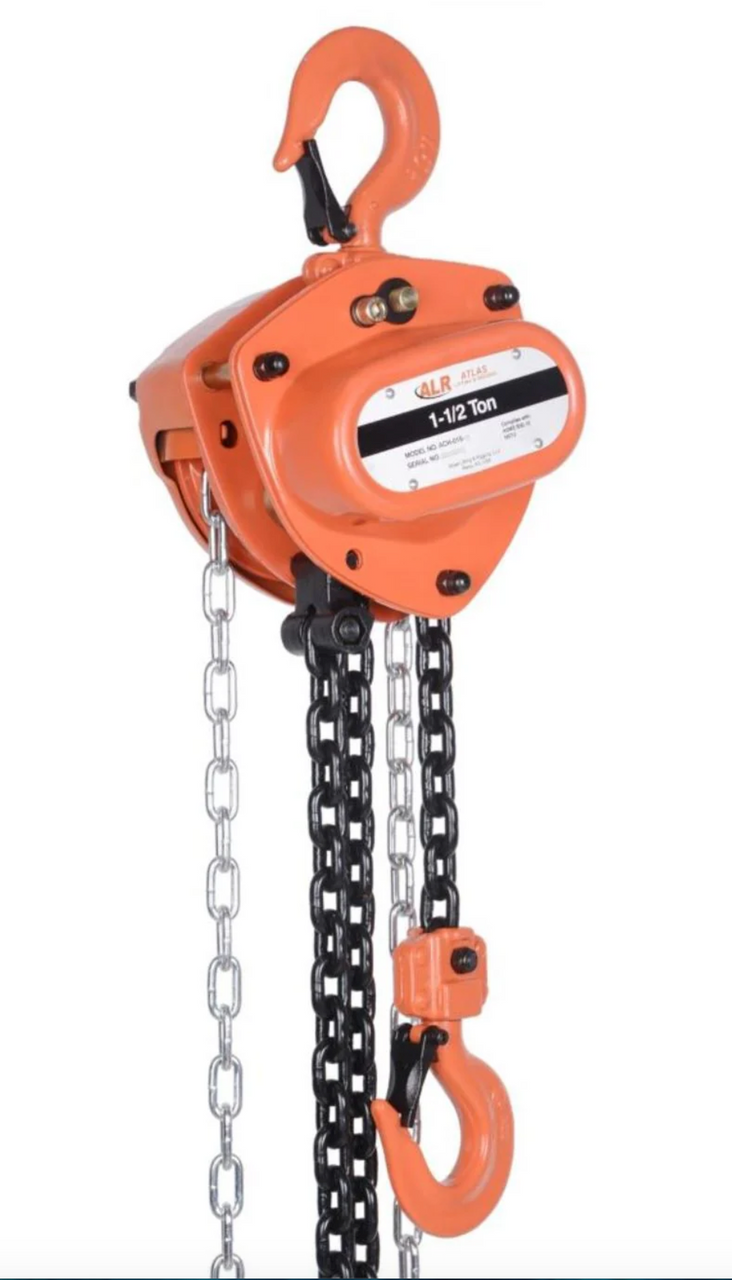

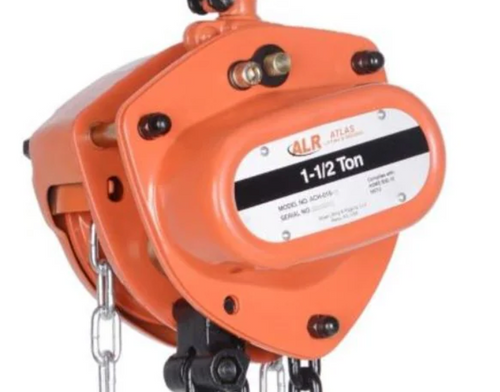

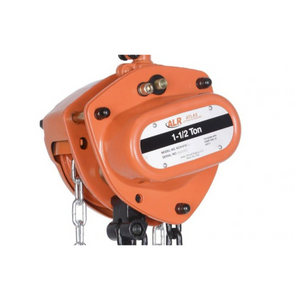

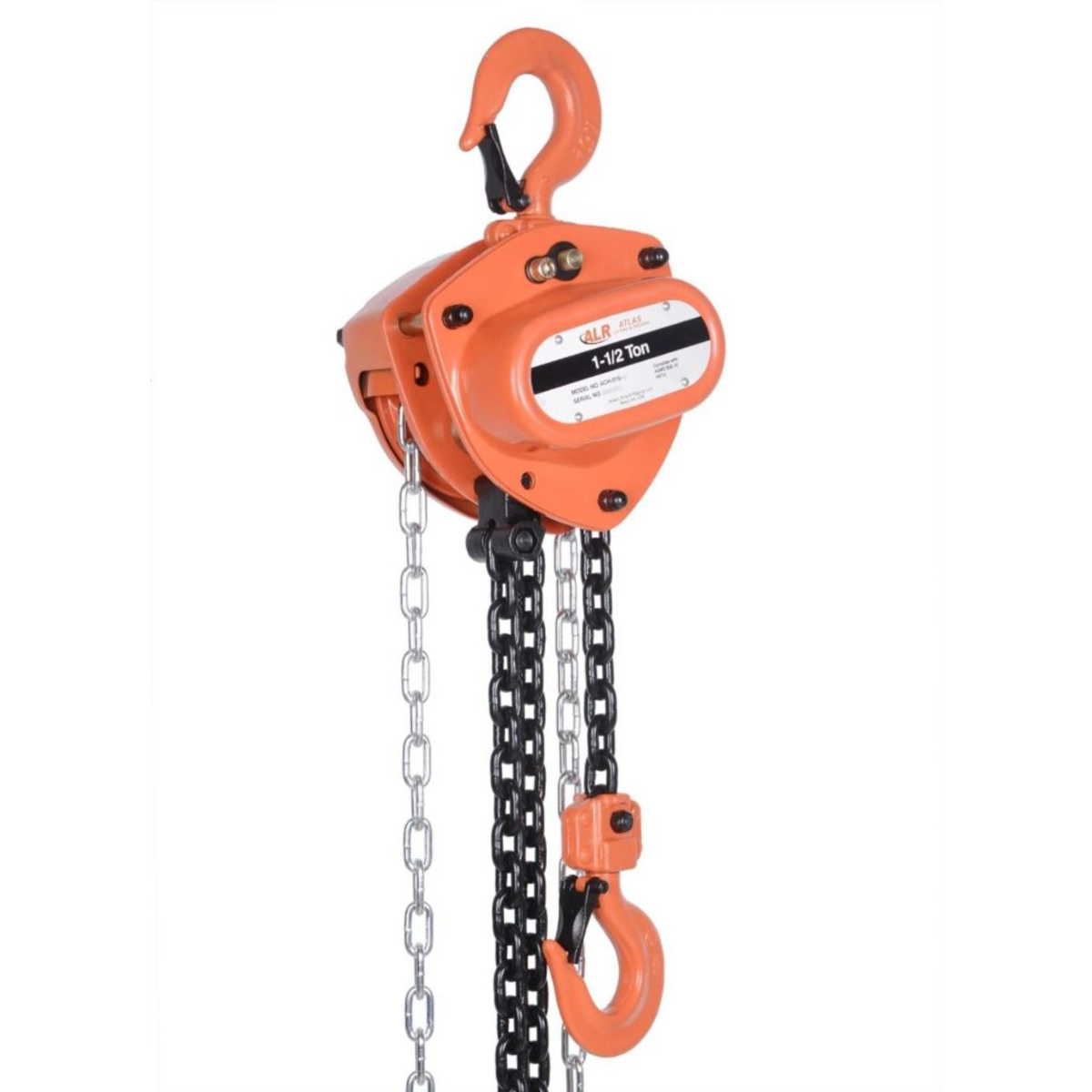

Atlas Lifting and Rigging ACH-015-10 Manual Chain Hoist
The ACH-015-10 Manual Chain Hoist from Atlas Lifting and Rigging is engineered for enhanced lifting power, providing a 1.5-ton (3,000 lbs) capacity in a compact, rugged design. With a 10-foot lift height, this hoist is ideal for medium- to heavy-duty applications where strength, control, and durability are critical.
Built with high-strength steel components and equipped with a reliable mechanical brake system, the ACH-015-10 offers precise load control and dependable performance in industrial, commercial, and construction environments. Its ergonomic hand chain operation and forged swivel hooks make it user-friendly while maintaining strict safety standards.
Key Features:
- 1.5-Ton Load Capacity: Increased lifting power for handling heavier loads safely and efficiently.
- 10-Foot Lift Height: Suited for general-purpose lifting in workshops, job sites, and warehouses.
- Durable All-Steel Housing: Resistant to impact and corrosion, built for harsh environments.
- Weston-Style Load Brake: Provides positive load control and secure holding at any height.
- Smooth Hand Chain Operation: Requires minimal effort for steady, controlled lifting.
- Swivel Hooks with Safety Latches: Enable flexible rigging and prevent chain twisting.
- Low Maintenance Design: Enclosed gearing protects internal mechanisms from dust and debris.
Specifications:
- Model: ACH-015-10
- Capacity: 1.5 Ton (3,000 lbs / 1,360 kg)
- Lift Height: 10 ft (3 m)
- Load Chain: Grade 80 alloy steel, black oxide finish
- Hand Chain: Zinc-plated steel

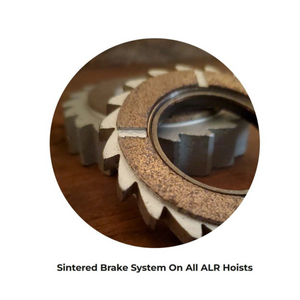

- Brake Type: Weston-style mechanical load brake

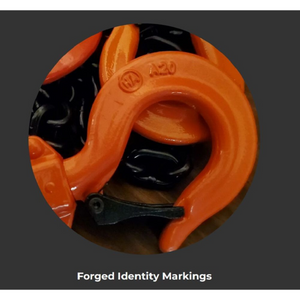

- Hook Type: Forged steel swivel hooks with safety latches
- Headroom: Approx. 13–16 inches
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 28–32 lbs
The Atlas ACH-015-10 is a workhorse hoist designed for operators who need more lifting power in a compact, reliable package. Whether you're hoisting machinery, steel components, or construction materials, this model delivers strength and confidence on every lift.
