Product Overview

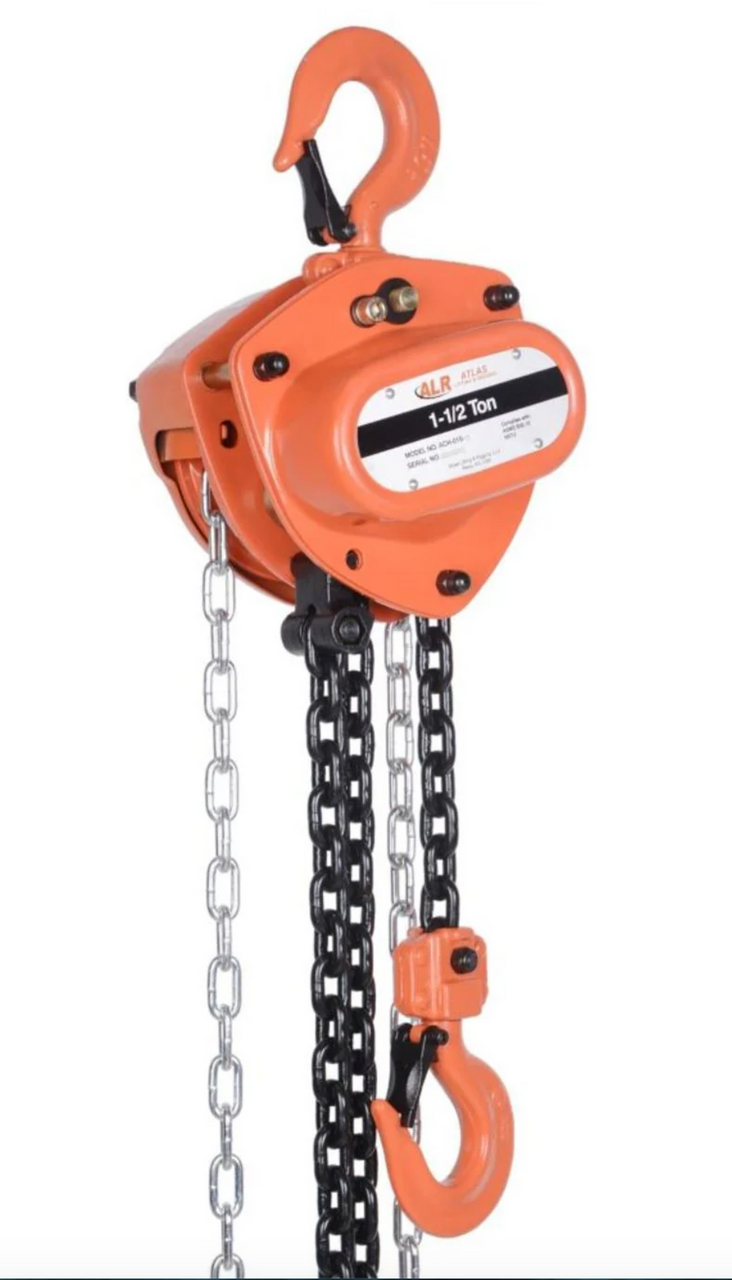

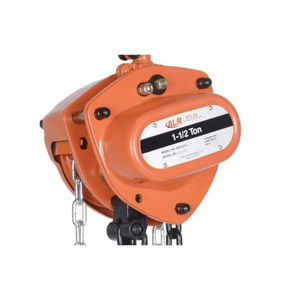

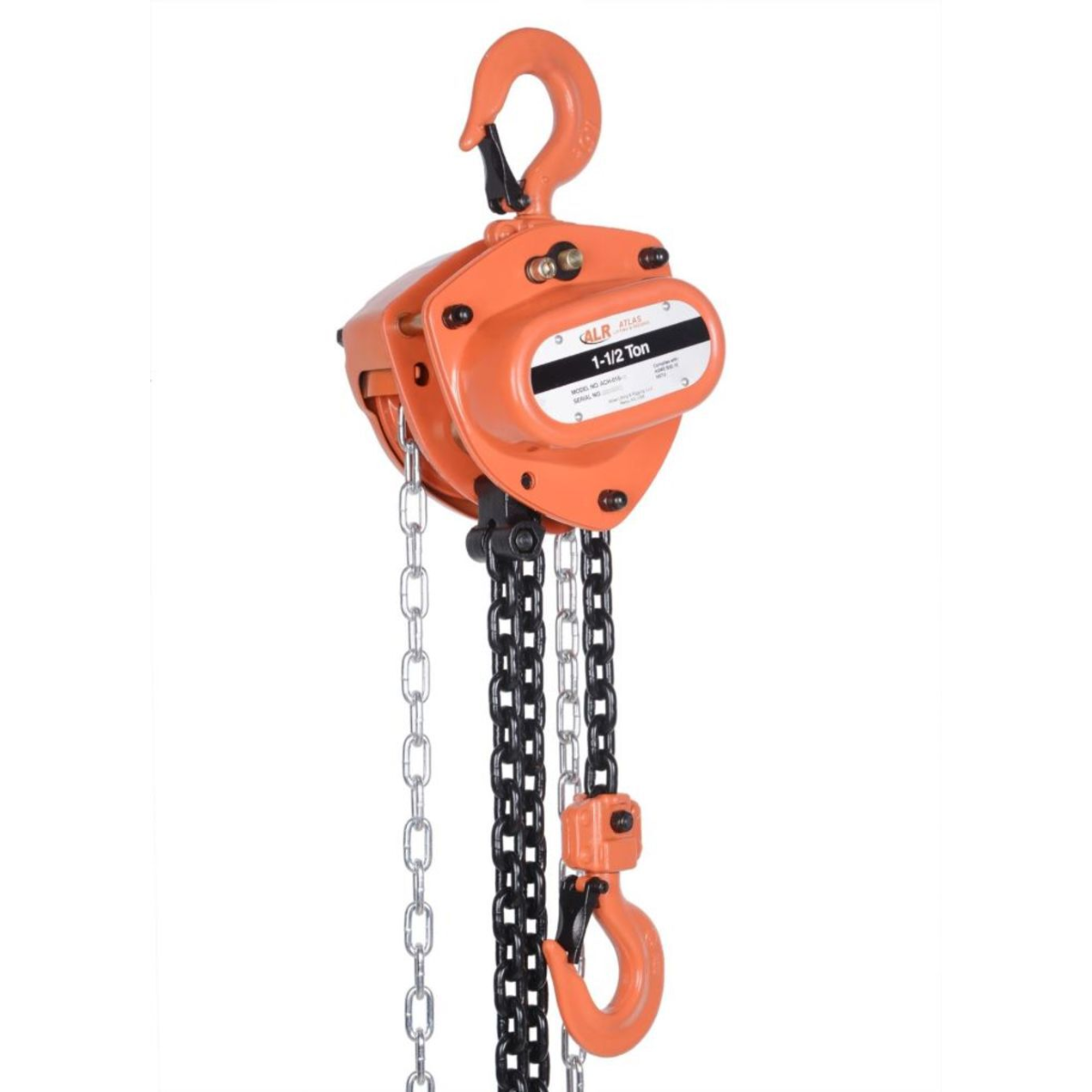

Atlas Lifting and Rigging ACH-015-30 Manual Chain Hoist
The ACH-015-30 Manual Chain Hoist is engineered for extended-reach lifting applications, offering a 1.5-ton (3,000 lbs) capacity and an impressive 30-foot lift height. Built to meet the demands of industrial environments, this hoist is ideal for tall structures, high-bay facilities, and deep-lift jobs where performance and reach are critical.
With a rugged steel housing, high-strength Grade 80 alloy chain, and a dependable Weston-style mechanical brake, the ACH-015-30 delivers safe, smooth, and controlled lifting over longer vertical distances. Its ergonomic hand chain operation ensures ease of use even in elevated or difficult-to-access locations.
Key Features:
-
1.5-Ton Lifting Capacity: Suitable for mid- to heavy-duty lifting in various settings.
-
30-Foot Lift Height: Extended vertical range for overhead or below-grade lifting.
-
All-Steel Housing: Provides long-lasting durability in demanding work environments.
-
Weston-Style Mechanical Load Brake: Offers reliable load control and holding power.
-
Ergonomic Hand Chain Operation: Minimizes user effort and supports precise handling.
-
Forged Swivel Hooks with Safety Latches: Prevent twisting and ensure secure rigging.
-
Sealed Internal Components: Protect against debris and reduce maintenance.
Specifications:
-
Model: ACH-015-30
-
Capacity: 1.5 Ton (3,000 lbs / 1,360 kg)
-
Lift Height: 30 ft (9 m)
-
Load Chain: Grade 80 alloy steel, black oxide finish
-
Hand Chain: Zinc-plated steel
-
Brake Type: Weston-style mechanical load brake
-
Hook Type: Forged steel swivel hooks with safety latches
-
Headroom: Approx. 13–16 inches
-
Operating Temperature: -40°F to 140°F (-40°C to 60°C)
-
Net Weight: Approx. 56–62 lbs
The Atlas ACH-015-30 is built for professionals who need serious lifting power with extended reach. Whether you're working on structural installations, equipment lifts, or deep-pit rigging, this hoist offers the strength and reliability to get the job done right.
