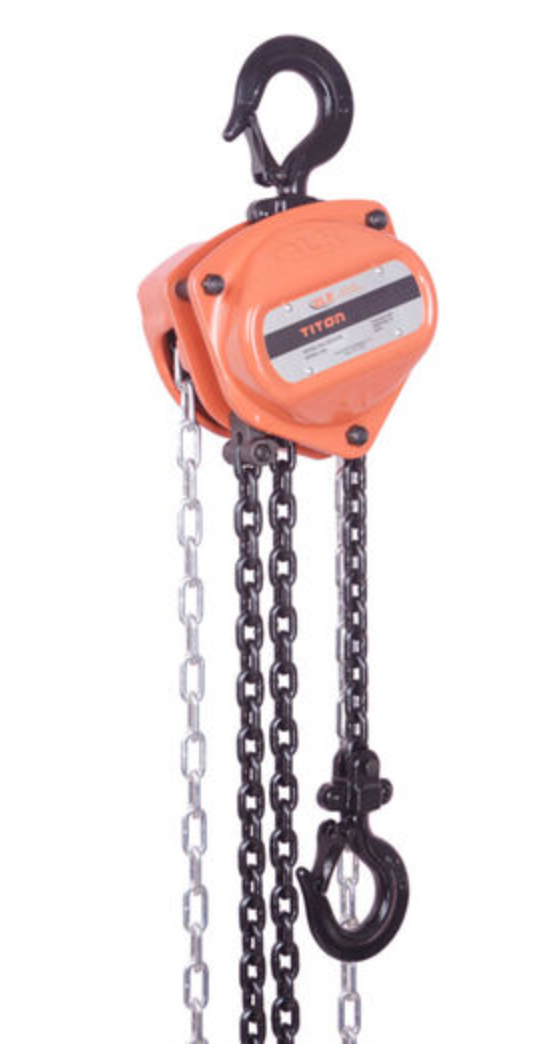

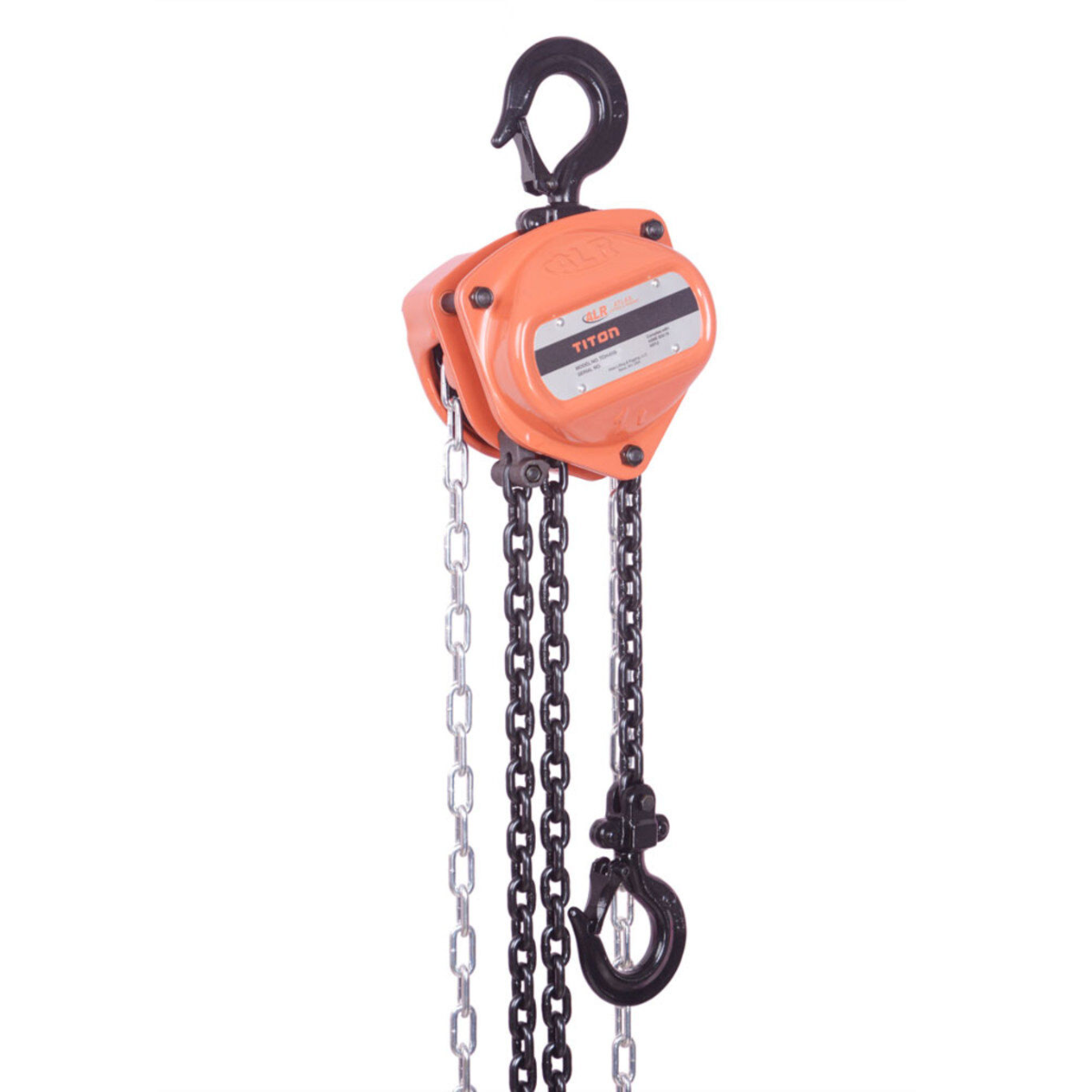

Atlas Lifting and Rigging TCH-015-30 Manual Chain Hoist – 1.5 Ton Capacity, 30 ft Lift
The TCH-015-30 Manual Chain Hoist from Atlas Lifting and Rigging offers long-lift capability and industrial-grade performance in a compact and rugged design. With a 1.5-ton (3,000 lb) capacity and an extended 30-foot lift height, this hoist is purpose-built for demanding applications that require additional vertical range, such as elevated equipment installations, bridge crane setups, and tall rigging structures.
Crafted with a tough steel housing and equipped using a Grade 80 alloy steel load chain, the TCH-015-30 is designed for maximum durability, load control, and operator efficiency. Its smooth hand-chain operation, forged swivel hooks with safety latches, and compact form factor make it an essential tool in any industrial or jobsite setting where overhead lifting is a priority.
Key Features:
- 1.5 Ton (3,000 lb) Capacity: Reliable mid-range lifting for industrial, rigging, and construction needs.
- 30 ft Lift Height: Ideal for high-clearance or elevated lifting tasks.
- Rugged Steel Housing: Protects internal components from impact and wear.
- Grade 80 Alloy Steel Chain: Corrosion-resistant and load-rated for strength and longevity.
- Smooth, Low-Effort Manual Operation: Easy-to-use hand chain system with precision gearing.
- 360° Swivel Hooks with Safety Latches: Ensure secure, flexible rigging connections.
- Compact and Portable: Despite the extended lift, it remains manageable and easy to position.
Specifications:
- Model: TCH-015-30
- Capacity: 1.5 Ton (3,000 lbs / 1,360 kg)
- Lift Height: 30 feet (9.14 meters)
- Load Chain: Grade 80 alloy steel
- Chain Diameter: Approx. 7.1 mm
- Hand Chain Pull (Full Load): Approx. 74 lbs

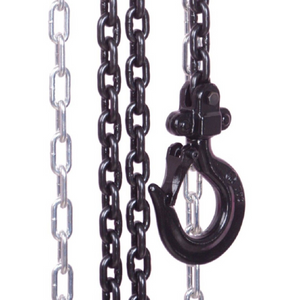

- Hooks: Forged steel, 360° swivel with safety latches
- Finish: Durable industrial coating for corrosion resistance
- Net Weight: Approx. 43 lbs (19.5 kg)
The Atlas TCH-015-30 delivers dependable lifting with extended reach—ideal for operations requiring height without sacrificing control, safety, or ease of use.
