Product Overview

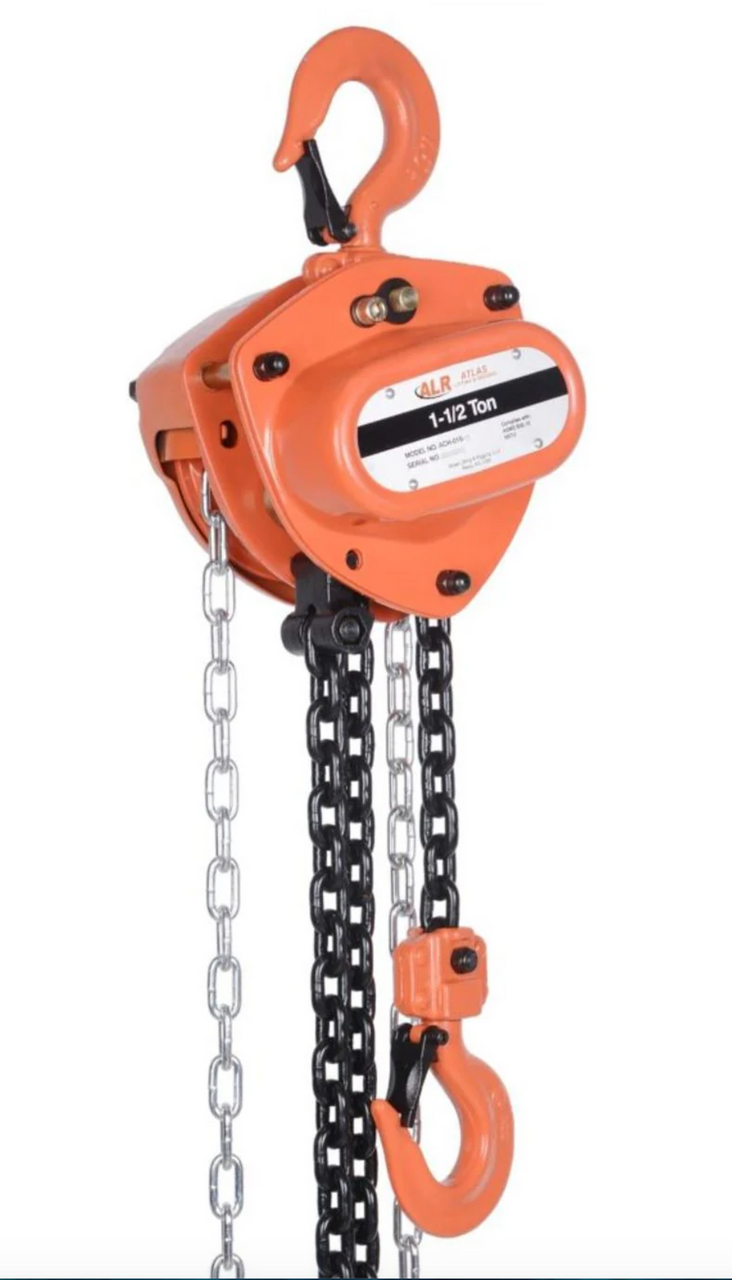

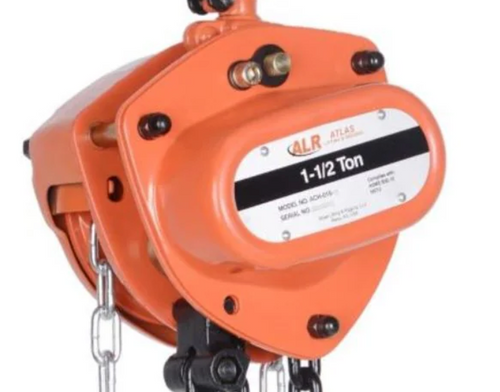

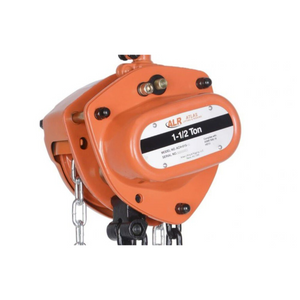

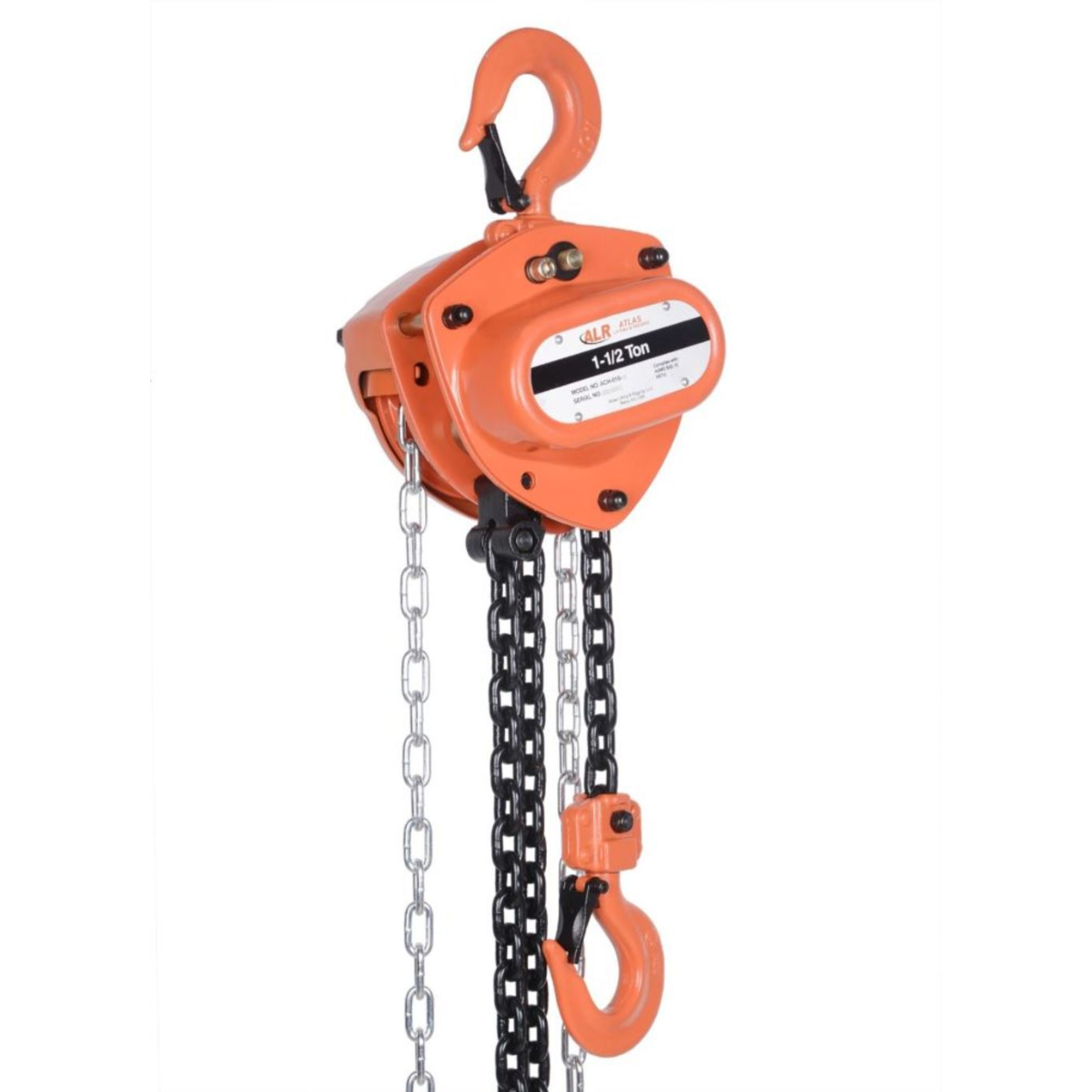

Atlas Lifting and Rigging ACH-015-20-OP Manual Chain Hoist with Overload Protection
The ACH-015-20-OP Manual Chain Hoist is engineered for heavy-duty lifting with added safety. Offering a 1.5-ton (3,000 lbs) capacity and a generous 20-foot lift height; this model includes integrated overload protection to help prevent accidents and equipment damage by disengaging the lifting mechanism if the load exceeds the rated limit.
Ideal for elevated lifts and overhead applications, the ACH-015-20-OP combines robust construction, precision control, and long-term reliability. With a hardened steel frame, a Weston-style load brake, and a high-grade alloy steel chain, it delivers smooth, dependable operation even in challenging environments.
Key Features:
- Overload Protection: Built-in slip clutch prevents lifting loads beyond rated capacity.
- 1.5-Ton Load Rating: Handles mid-to-heavy lifting applications with confidence.
- 20-foot Lift Height: Extended reach for overhead rigging, high-bay work, or deep lift operations.
- All-Steel Housing: Tough, impact-resistant construction for industrial use.
- Weston-Style Mechanical Brake: Holds the load securely at any height.
- Ergonomic Hand Chain Operation: Provides efficient, low-effort lifting control.
- 360° Swivel Hooks with Safety Latches: Enhance rigging flexibility and prevent twisting under load.
- Low-Maintenance Design: Sealed internal components minimize wear from dust and debris.
Specifications:
- Model: ACH-015-20-OP
- Capacity: 1.5 Ton (3,000 lbs / 1,360 kg)
- Lift Height: 20 ft (6 m)
- Overload Protection: Integrated mechanical slip clutch
- Load Chain: Grade 80 alloy steel, black oxide finish
- Hand Chain: Zinc-plated steel
- Brake Type: Weston-style mechanical load brake
- Hook Type: Forged steel swivel hooks with safety latches
- Headroom: Approx. 13–16 inches
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 44–48 lbs
The Atlas ACH-015-20-OP is built for professionals who require both extended reach and a higher standard of safety. Whether lifting equipment on-site or handling structural materials overhead, this hoist delivers dependable performance with added protection where it counts most.
