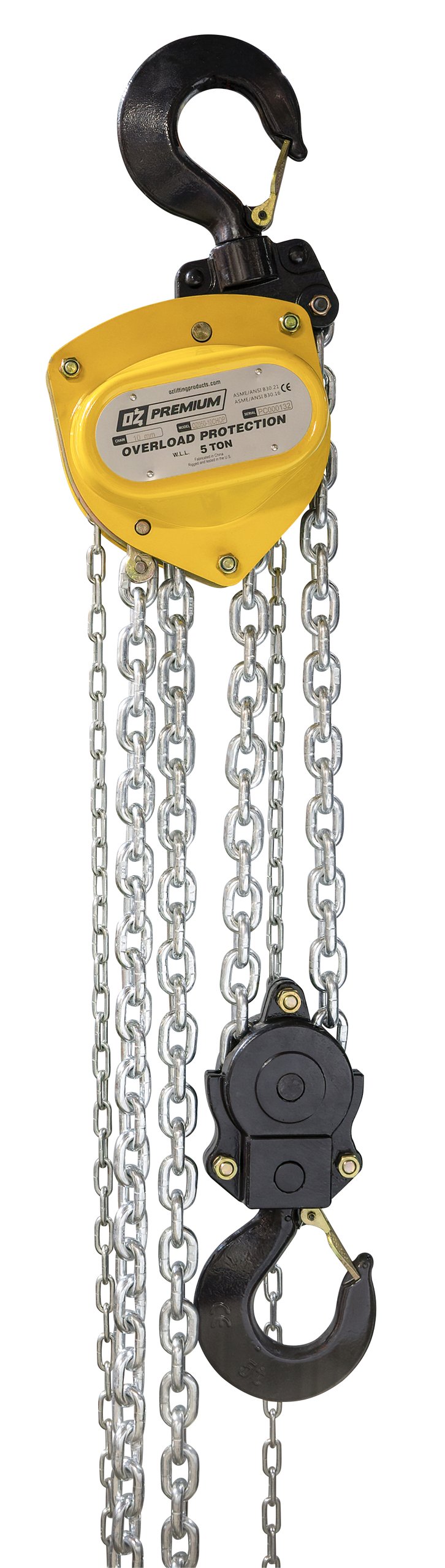

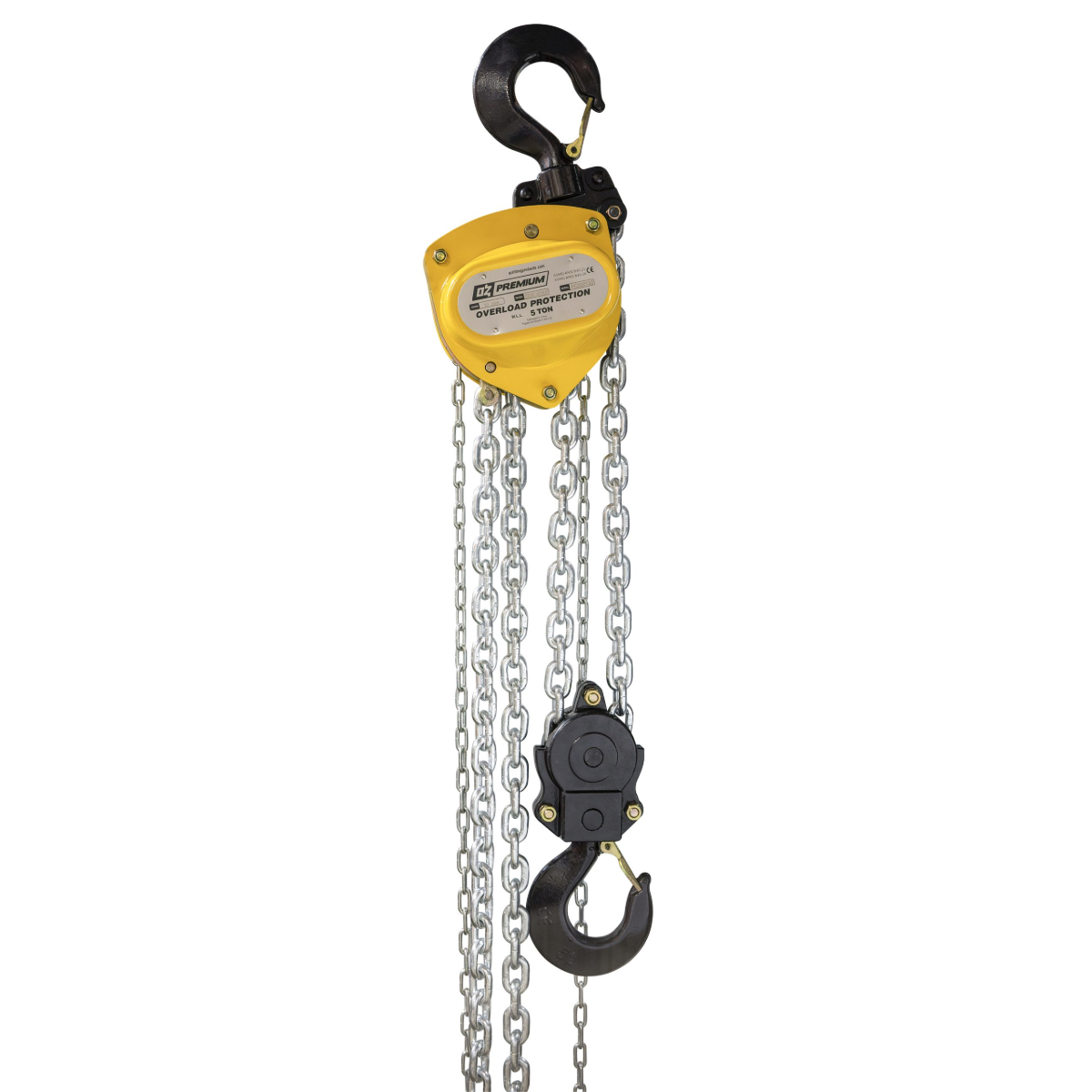

The OZ050-30CHOP Premium Chain Hoist is built to handle the toughest lifting challenges with a 5-ton (10,000 lb) capacity and 30-foot lift height. Designed for maximum safety and ease of use, it features Standard Overload Protection set at approximately 150% of the rated load, protecting both operators and equipment from overexertion. With double-reduction gearing, a precision hand-wheel design, and a durable all-steel body, this hoist provides smooth, controlled lifting and dependable performance in every industrial setting.

Product Description

When safety, durability, and performance matter most, the OZ050-30CHOP Premium Chain Hoist delivers professional-grade reliability for heavy-duty lifting and pulling applications. Ideal for use in construction, maintenance, manufacturing, and material handling environments, this hoist combines superior strength with operator-friendly design.

Engineered with Standard Overload Protection, the hoist automatically prevents lifting beyond 150% of the rated capacity, ensuring safe and consistent performance. This key safety feature helps extend the lifespan of the hoist while safeguarding operators against overloading risks. The enclosed Weston-style mechanical brake with dual pawls ensures a positive load hold in every position, offering precise load control and secure suspension.

The double-reduction gearing provides maximum mechanical advantage, allowing users to lift or lower heavy loads with minimal effort. The ergonomic hand-wheel design allows smooth operation from multiple angles, making it easy to maneuver the hoist even in tight or awkward spaces.

Built for the long haul, the OZ050-30CHOP is crafted with an all-steel body and precision-machined components to ensure lasting durability. The powder-coated finish resists corrosion and wear, while the Grade 80 zinc-plated load chain provides superior tensile strength and rust protection. Both the top and bottom forged steel hooks swivel 360° for flexible load positioning, and the lower hook includes a thrust bearing, allowing easy rotation of suspended loads without twisting the chain.

Each unit comes with a stainless steel identification tag, unique serial number, and load test certificate, ensuring traceability and compliance with the highest quality standards.

Specifications

• Model: OZ050-30CHOP

• Capacity: 5 Ton (10,000 lbs)

• Lift Height: 30 ft

• Overload Protection: Factory-set at ~150% of rated load

• Construction: Heavy-duty all-steel housing with powder-coated finish

• Operation Type: Manual lifting and pulling

• Brake System: Enclosed Weston-style mechanical brake with twin pawls

• Gearing: Double-reduction gearing for reduced manual effort

• Bearings: Sealed roller bearings for smooth, maintenance-free operation

• Hooks: Forged alloy steel, 360° swivel top and bottom

• Lower Hook: Equipped with thrust bearing for easy load rotation

• Latch Type: Heavy-duty cast steel safety latch with bolt-and-lock nut connection

• Load Chain: Grade 80 zinc-plated, corrosion-resistant chain

• Hand Wheel: Allows smooth chain operation from multiple directions

• Identification: Stainless steel tag with unique serial number and test certificate

• Compliance: Meets or exceeds ASME B30.16 and OSHA standards

Key Features & Benefits

• 5-ton lifting capacity with an extended 30 ft lift height for versatile use

• Standard Overload Protection for enhanced operator and equipment safety

• All-steel construction ensures maximum strength and durability

• Double-reduction gearing minimizes effort for heavy lifts

• Enclosed brake system for reliable load control and stability

• Grade 80 zinc-plated load chain for superior corrosion resistance

• 360° swivel hooks with safety latches for flexible and secure attachment

• Thrust bearing on lower hook allows smooth load rotation under tension

• Maintenance-free sealed bearings ensure long service life

• Fully tested and certified to meet ASME and OSHA standards
