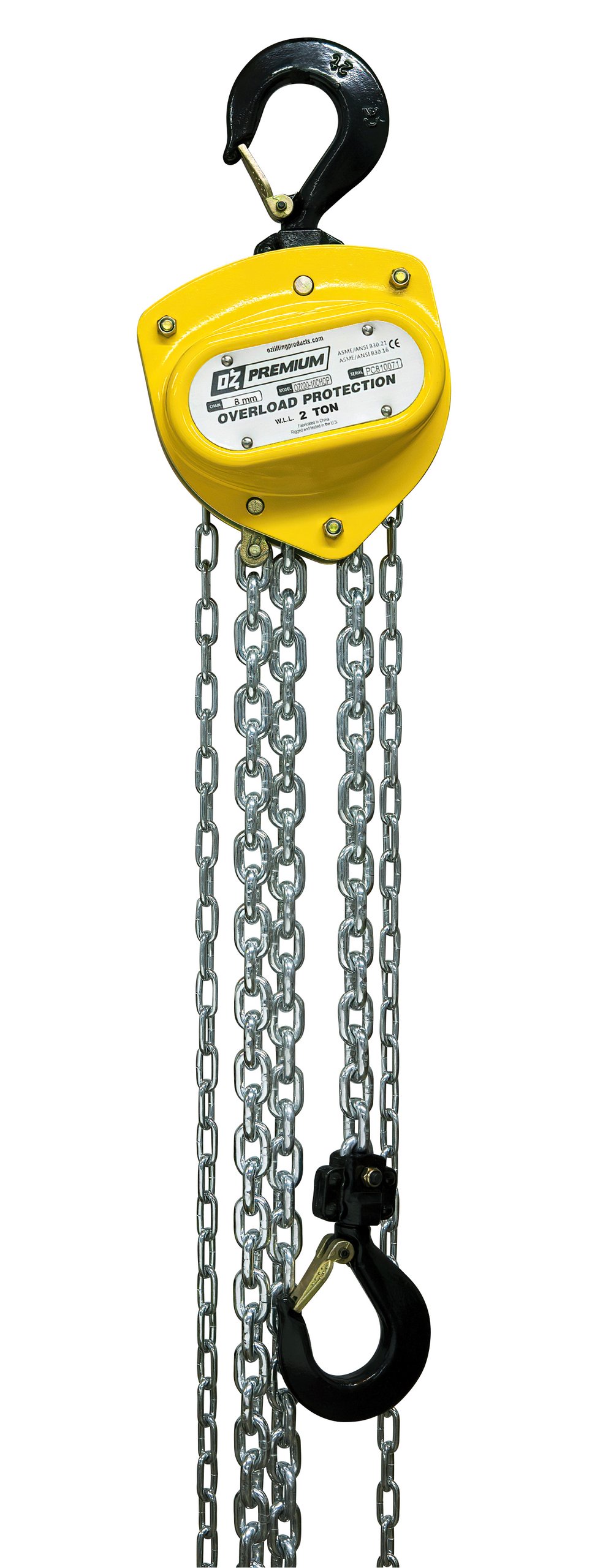

The OZ020-30CHOP Premium Chain Hoist delivers superior performance and reliability with a 2-ton (4,000 lb) lifting capacity and Standard Overload Protection (SOP) set at approximately 150% of the rated load. Designed for versatile use in lifting and pulling applications, this heavy-duty hoist features double-reduction gearing for minimal effort and a smooth-operating hand-wheel design that works from multiple angles. Constructed entirely from high-strength steel and finished with a durable powder coat, it’s engineered for long-term, dependable operation in even the most demanding industrial environments.

Product Description

The OZ020-30CHOP Premium Chain Hoist combines advanced safety, ergonomic operation, and heavy-duty performance to meet the needs of today’s most demanding lifting environments. With its 2-ton load capacity and 30-foot lift height, this hoist provides the reach and strength required for handling large equipment, materials, and machinery with precision and safety.

Engineered with Standard Overload Protection (SOP) preset at roughly 150% of rated load, the hoist automatically resists excessive force to protect internal components and ensure safe operation. This feature prevents accidental overloading, safeguarding both workers and equipment.

The double-reduction gearing design allows for smooth, efficient lifting with significantly reduced manual effort. Whether used in manufacturing, maintenance, warehouse, or construction settings, operators benefit from precise control and consistent performance with every use.

Its innovative hand-wheel mechanism ensures seamless chain movement from multiple angles—ideal for use in tight or awkward spaces where straight-line operation isn’t always possible. The Grade 80 zinc-plated load chain provides exceptional strength and corrosion resistance, maintaining reliability even in harsh or outdoor conditions.

Built for longevity, the OZ020-30CHOP features an all-steel construction with a powder-coated finish, offering superior protection against rust, wear, and environmental damage. Inside, sealed roller bearings and enclosed gearing keep out dirt and debris, ensuring smooth and low-maintenance operation.

The hoist’s Weston-style mechanical brake system features twin pawls, providing secure load control and reliable stopping power. Both top and bottom hooks are forged from alloy steel and swivel 360°, allowing easy attachment and load alignment. The lower hook’s thrust bearing prevents chain twisting and supports safe load rotation.

For added safety and traceability, each unit comes with a stainless steel identification tag displaying a unique serial number and a test certificate verifying performance and quality. Every purchase includes a spare set of safety latches, providing added convenience and longevity.

Specifications

• Model: OZ020-30CHOP

• Type: Premium Manual Chain Hoist with Overload Protection

• Capacity: 2 Ton (4,000 lbs)

• Lift Height: 30 ft

• Overload Protection: Factory-set at ~150% of rated load

• Operation: Manual hand chain (for lifting and pulling)

• Construction: Heavy-duty all-steel frame and components

• Finish: Powder-coated, corrosion- and impact-resistant

• Gearing: Double-reduction gearing for effortless lifting

• Brake System: Enclosed Weston-style brake with twin pawls

• Bearings: Sealed roller bearings for maintenance-free performance

• Hooks: Forged alloy steel, 360° swivel top and bottom hooks

• Lower Hook: Thrust bearing to prevent chain twisting

• Latch System: Heavy-duty steel safety latches with bolt-and-lock nut

• Load Chain: Grade 80, zinc-plated, corrosion-resistant

• Hand-Wheel Design: Allows smooth operation from multiple angles

• Enclosed Gearing: Protection from dust and debris for extended life

• Identification: Stainless steel ID tag with unique serial number and test certificate

• Included Accessories: Spare set of safety latches

• Compliance: Meets or exceeds ASME B30.16 and OSHA standards

Key Benefits

• Standard Overload Protection for built-in safety assurance

• Double-reduction gearing minimizes lifting effort and maximizes control

• All-steel, powder-coated construction ensures long-term durability

• Grade 80 chain offers superior tensile strength and corrosion resistance

• 360° swivel hooks simplify attachment and improve load alignment

• Sealed components reduce maintenance and extend lifespan

• Traceable serial number and test certificate ensure verified quality
