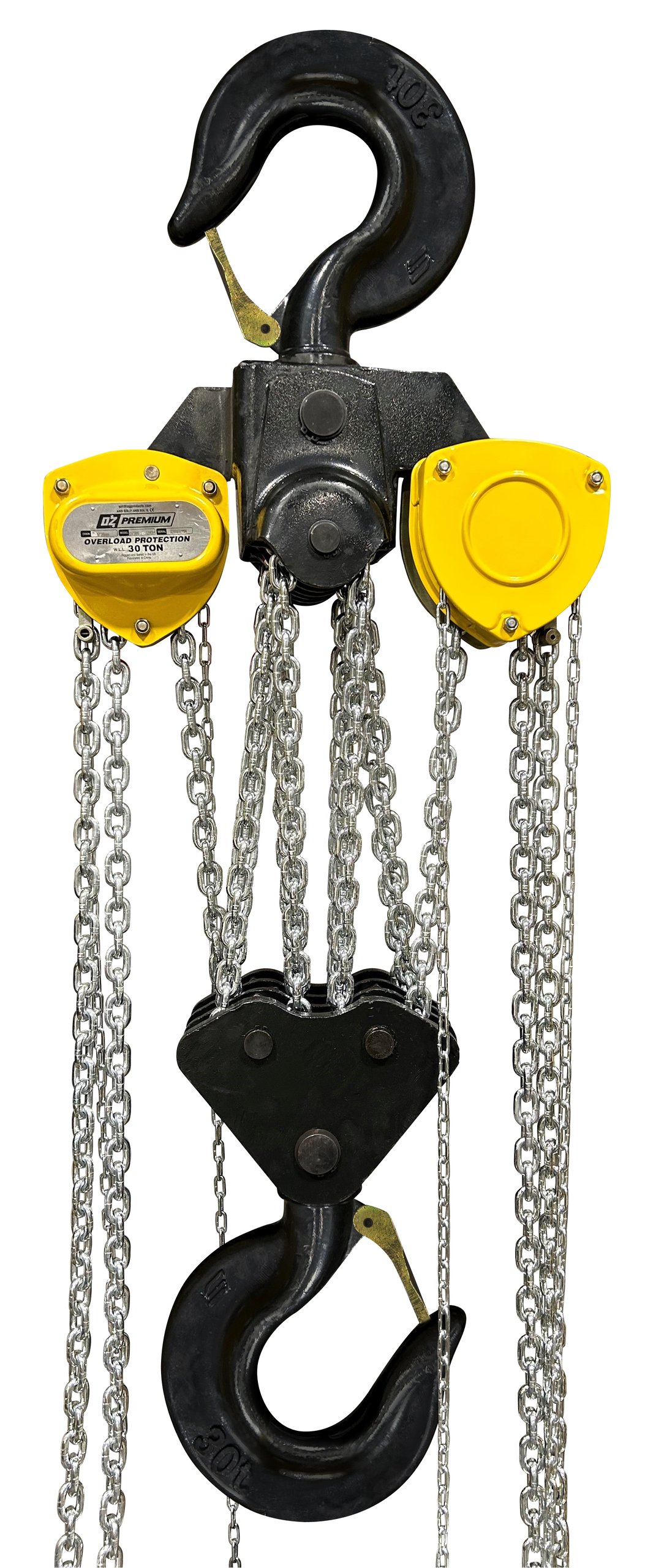

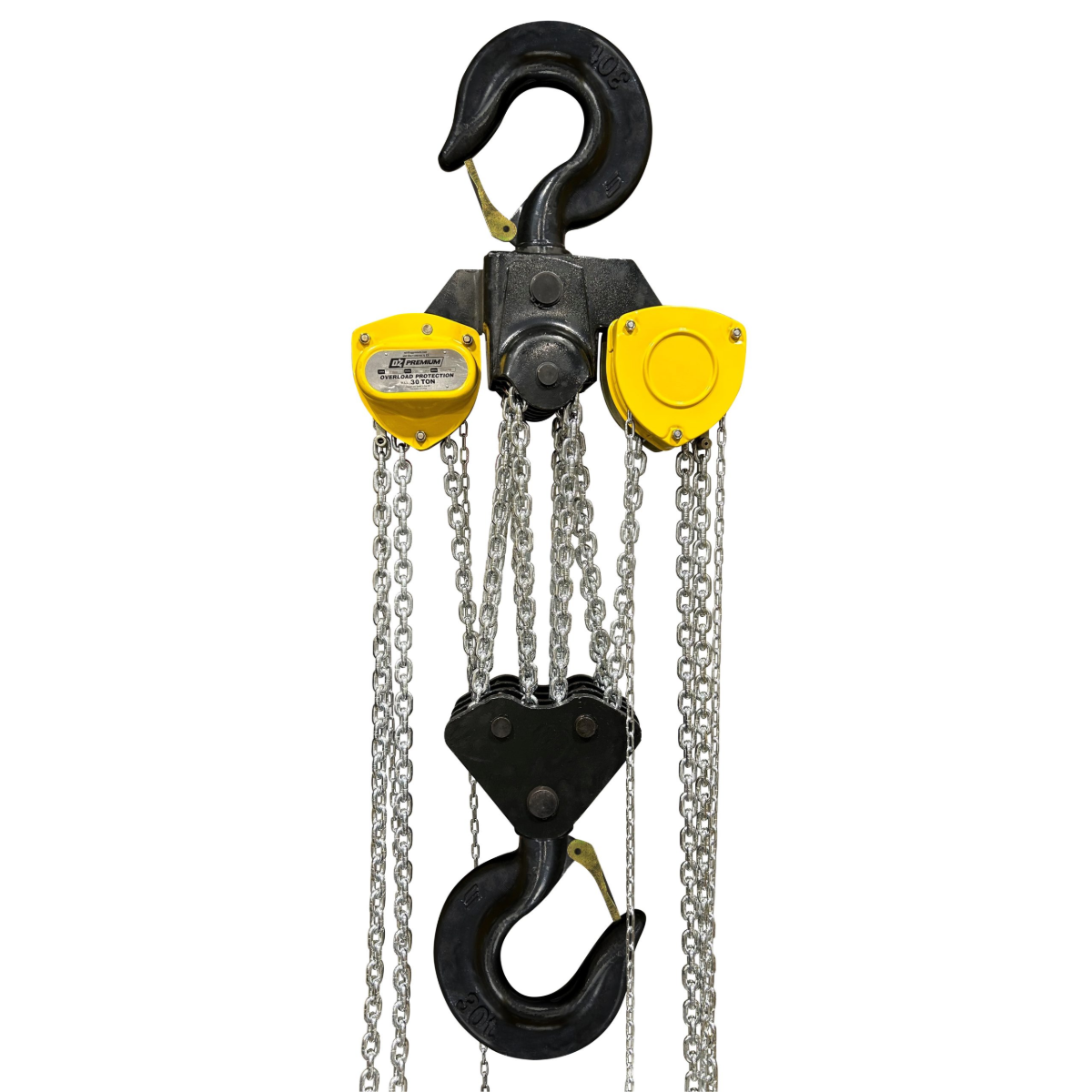

The OZ300-10CHOP Premium Chain Hoist is a top-tier manual lifting solution engineered for demanding industrial environments. Designed with Standard Overload Protection set at approximately 150% of the rated load, it ensures exceptional safety and reliability. Ideal for both lifting and pulling applications, this hoist features double reduction gearing for smoother operation, a precision hand-wheel design that allows control from any angle, and a heavy-duty all-steel frame built to endure years of rugged use.

Product Description

When it comes to heavy-duty lifting, the OZ300-10CHOP Premium Chain Hoist stands as a benchmark for safety, performance, and durability. With a 30-ton (60,000 lb) lifting capacity and a 10 ft lift height, it’s engineered to handle the most demanding industrial applications—from shipyards and steel fabrication to construction sites and equipment assembly lines.

The hoist’s Standard Overload Protection is factory-calibrated to activate at approximately 150% of the rated load, preventing overloading and minimizing wear on internal components. This advanced feature safeguards both the operator and the equipment, extending the lifespan of the hoist and ensuring compliance with industry safety standards.

Equipped with a double-reduction gearing system, the OZ300-10CHOP provides exceptional mechanical advantage, allowing operators to lift heavy loads with reduced effort. The ergonomic hand-wheel design delivers smooth and responsive control, enabling precise chain movement from virtually any angle—perfect for confined or hard-to-reach spaces.

The hoist’s all-steel body is built to withstand extreme work environments. Its Grade 80 alloy steel load chain offers superior strength, corrosion resistance, and long-term reliability. Forged steel hooks feature 360° rotation and safety latches, ensuring secure load engagement during lifting and pulling operations. A Weston-style mechanical brake with dual pawls ensures dependable load holding and consistent control under heavy use.

Each OZ hoist is individually load tested, serialized, and accompanied by a stainless steel identification tag that verifies testing and certification. The hoist meets or exceeds ASME B30.16 and OSHA requirements, guaranteeing top-level safety and performance compliance.

Specifications

• Model: OZ300-10CHOP

• Capacity: 30 Ton (60,000 lbs)

• Lift Height: 10 ft

• Overload Protection: Factory set to 150% of rated load

• Operation Type: Manual (lifting and pulling)

• Construction: All-steel housing with corrosion-resistant finish

• Gearing: Double-reduction gearing for reduced effort

• Load Chain: Grade 80 alloy steel, zinc-plated for corrosion resistance

• Hooks: Forged steel, 360° swivel with heavy-duty safety latches

• Brake System: Weston-style mechanical brake for secure load control

• Bearings: Precision roller bearings for smooth operation

• Identification: Stainless steel tag with unique serial number and test record

• Compliance: Meets ASME B30.16 and OSHA safety standards

Key Features & Benefits

• 30-ton lifting capacity for large-scale industrial and construction use

• Standard Overload Protection prevents overexertion and increases safety

• Double-reduction gearing minimizes manual effort while maximizing control

• Ergonomic hand-wheel design allows chain operation from any angle

• Rugged all-steel construction ensures long service life in demanding environments

• Grade 80 load chain provides superior tensile strength and corrosion protection

• 360° rotating hooks allow easy load positioning and secure attachment

• Mechanical braking system ensures stable and reliable load holding

• Fully tested and certified to meet strict safety and quality standards
