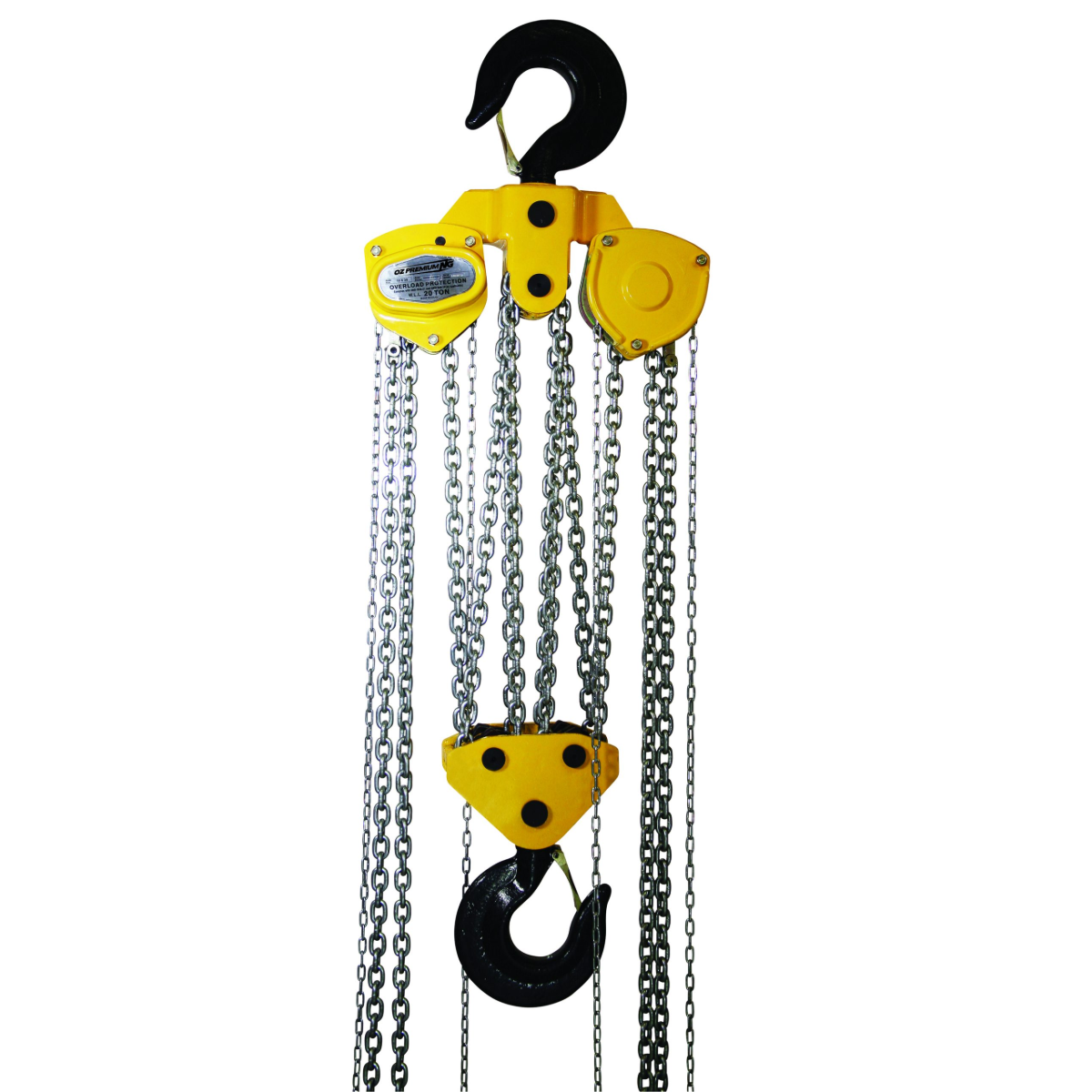

The OZ200-10CHOP Premium Chain Hoist delivers exceptional power, precision, and safety for demanding lifting and pulling applications. With a 20-ton (40,000 lb) capacity, it incorporates Standard Overload Protection calibrated to approximately 150% of the rated load, ensuring maximum operator safety and mechanical reliability. Designed for smooth operation and long-term performance, it features double-reduction gearing, a versatile hand-wheel design, and all-steel construction built to endure rugged industrial use.

Product Description

Built for industries that demand strength, safety, and endurance, the OZ200-10CHOP Premium Chain Hoist represents the peak of mechanical lifting performance. With a 20-ton lifting capacity and a 10-foot lift height, this hoist provides dependable handling for heavy loads in manufacturing plants, construction sites, shipyards, and industrial facilities.

Safety is a top priority, and this model includes Standard Overload Protection—pre-set to approximately 150% of its rated load—to prevent misuse and protect both the operator and the hoist from excessive stress. This feature ensures precise load control and minimizes the risk of mechanical damage, making it ideal for continuous or heavy-duty use.

The double-reduction gearing system allows operators to lift massive loads with minimal effort. Combined with its hand-wheel chain design, the hoist ensures smooth and consistent chain movement from any direction, making it user-friendly and efficient even in confined spaces. Whether used for vertical lifting or horizontal pulling, this hoist delivers consistent performance and control.

Engineered with a heavy-duty all-steel frame, the OZ200-10CHOP is built to resist wear, corrosion, and impact damage. Its Grade 80 zinc-plated alloy load chain provides exceptional tensile strength and durability, ensuring long service life even in harsh environments. The Weston-style mechanical brake with dual pawls ensures secure load holding, while forged steel hooks with 360° rotation and safety latches provide additional safety and load-handling flexibility.

Each OZ hoist undergoes individual load testing and comes with a stainless steel identification tag and a unique serial number for full traceability. The model meets or exceeds ASME B30.16 and OSHA safety standards, guaranteeing professional-grade quality and compliance.

Specifications

• Model: OZ200-10CHOP

• Capacity: 20 Ton (40,000 lbs)

• Lift Height: 10 ft

• Overload Protection: Factory-set to approximately 150% of rated load

• Construction: Heavy-duty all-steel body with corrosion-resistant finish

• Operation Type: Manual (lifting and pulling applications)

• Gearing: Double-reduction system for minimal hand effort

• Load Chain: Grade 80 zinc-plated alloy steel

• Hooks: Forged alloy steel, 360° swivel top and bottom hooks with safety latches

• Brake System: Weston-style mechanical brake with dual pawls for reliable load holding

• Bearings: Sealed roller bearings for maintenance-free performance

• Identification: Stainless steel ID tag with unique serial number and test certification

• Compliance: Meets ASME B30.16 and OSHA safety standards

Key Features & Benefits

• 20-ton lifting capacity handles the heaviest industrial loads with ease

• Built-in overload protection prevents damage and enhances operator safety

• Smooth, multi-angle operation thanks to ergonomic hand-wheel chain design

• Effortless lifting and pulling with precision-engineered double-reduction gearing

• Durable all-steel housing ensures long-lasting reliability in demanding conditions

• High-strength Grade 80 alloy chain resists corrosion and wear

• Reliable mechanical braking system ensures steady and secure load control

• 360° rotating hooks with latches enhance flexibility and load positioning

• Fully tested and certified for industry compliance and safety assurance
